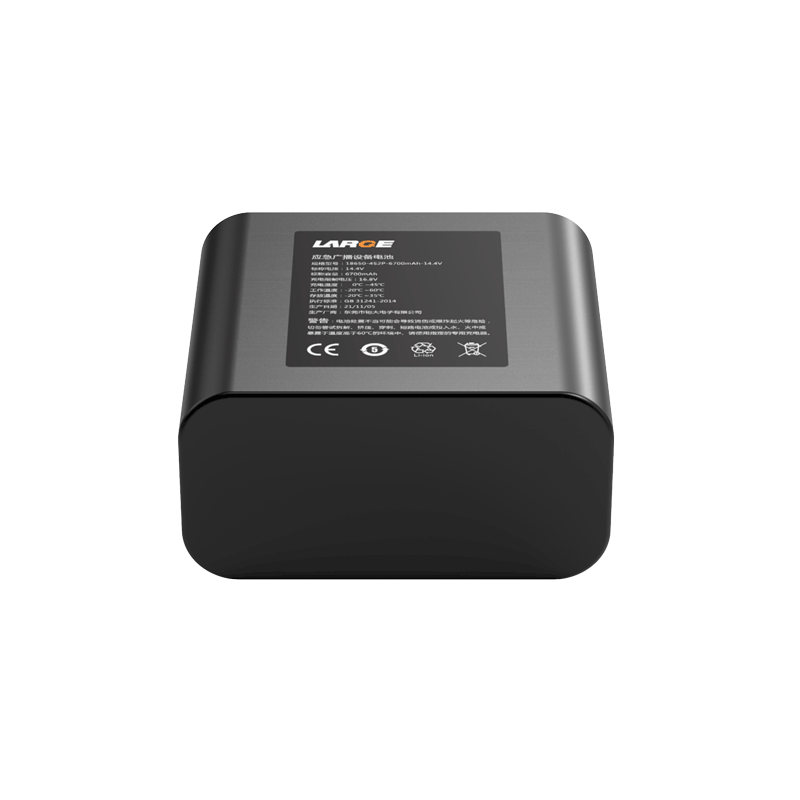

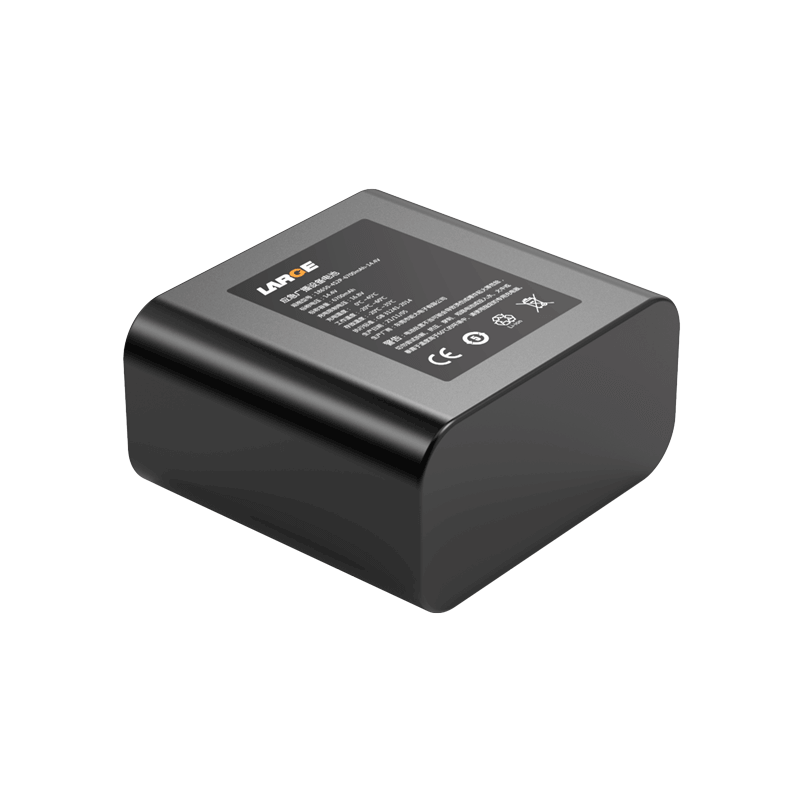

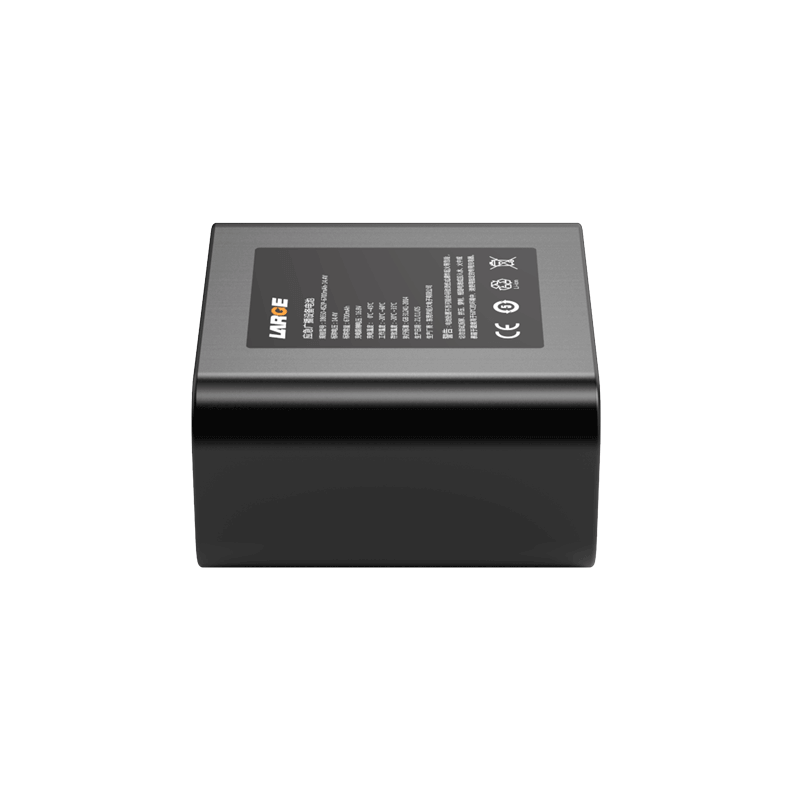

Custom Lithium ion Battery Pack
Product number: 08DQ0022-04T
Cell model: 18650-3350MAH-3.6V
Specification: 18650-4S2P-6700MAH-14.4V
Product size: 75*38.5*76mm (Max)
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Finished product internal resistance: ≤220mΩ
Charging voltage: 16.8V
Charging current: ≤3A
Discharge current: ≤6A
Discharge cut-off voltage: 11.2V
Battery weight: 310g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: Portable equipment, emergency set
Product Features
1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.
2.Connector plug terminal: JST plug output mode is adopted to increase the conductivity reliability of the plug.
3.Battery protection management: Use special lithium battery protection chip with good stability, high precision monitoring, accurate control, temperature protection to eliminate security risks to the greatest extent.
4.Data communication management: TI-SMBus software management chip, SMBus communication precise data transmission, real-time battery status monitoring and control.
5.The battery pack is safe, has good discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
