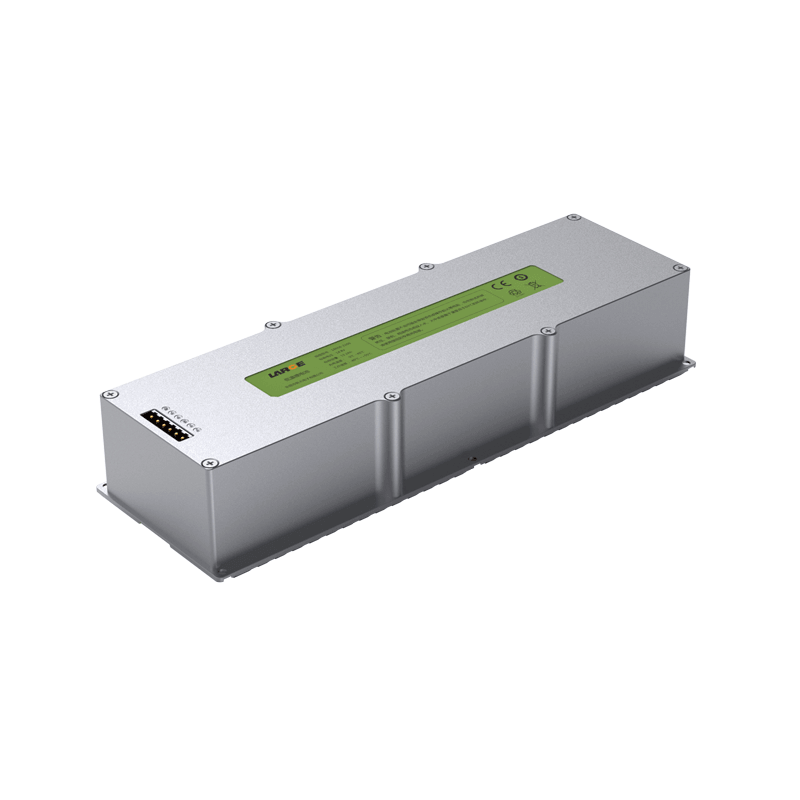

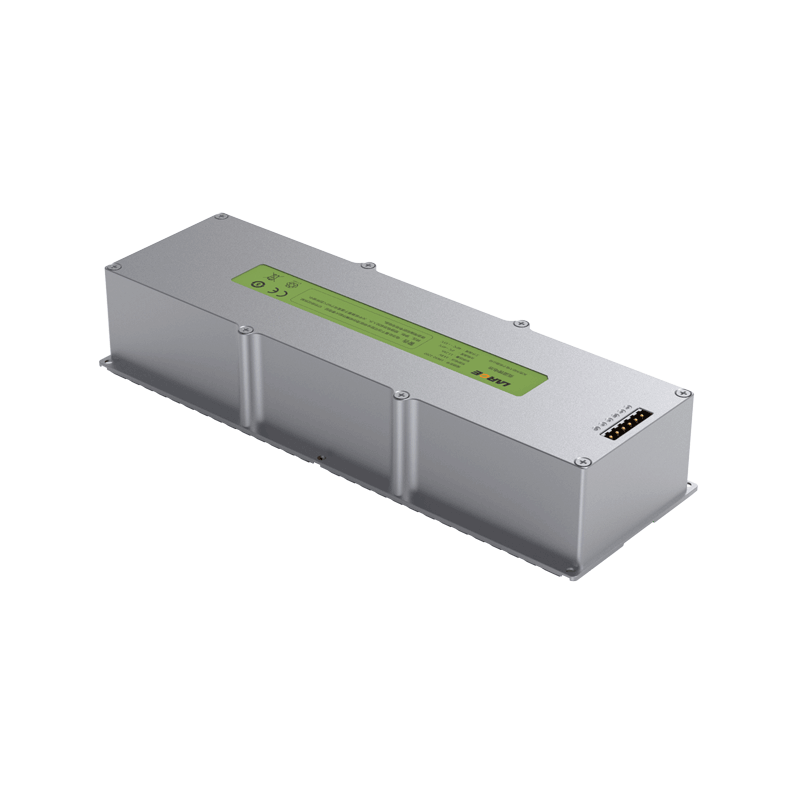

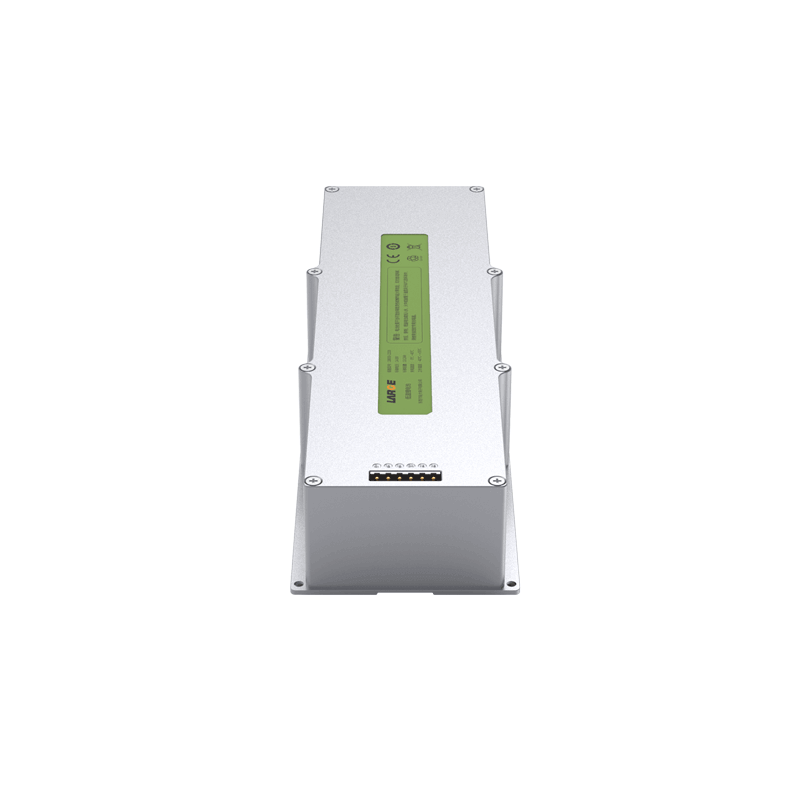

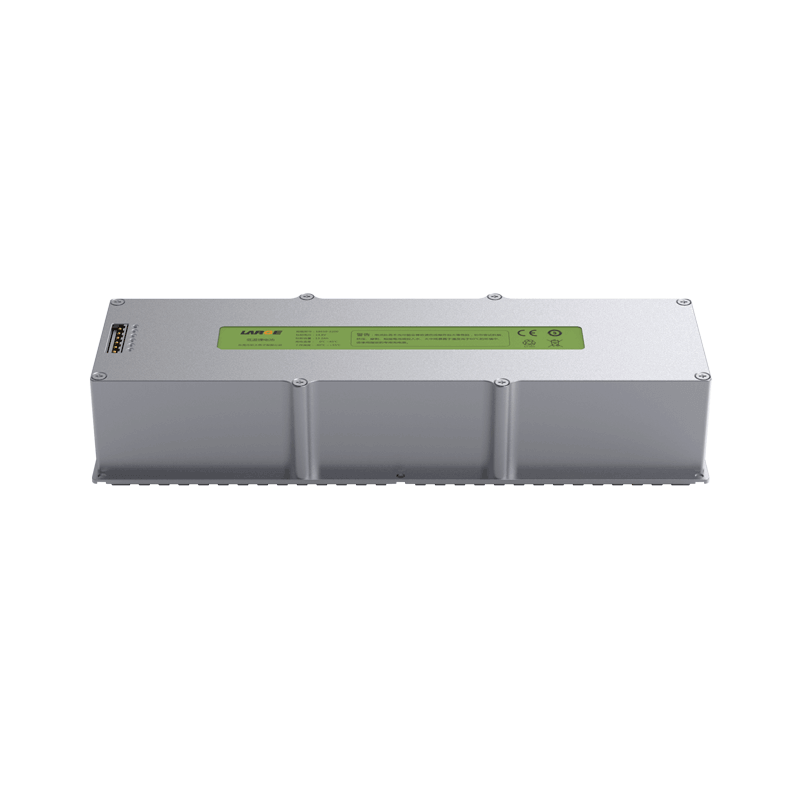

Custom Lithium ion Battery Pack
Product number: 00AQ015-02
Cell model: 18650-2200(LARGE)
Specification: 14.8V-13.2AH
Product size: 250±0.3mm×82.0±0.2mm×47±0.3mm
Nominal voltage: 14.8V
Nominal capacity: 13.2Ah
Charging voltage: 16.8V
Charging current: 12.6A
Discharge current: 12.6A
Discharge cut-off voltage: 10V
Product internal resistance: ≤180mΩ
Battery weight: ≤ 1700G
Charging temperature: 0 ~ 45℃
Discharge temperature: -40°C ~+55 °C
Storage temperature: -30 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -10~+20℃ (less than 6 months)
Battery case: aluminum alloy surface conductive oxidation, natural color
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Equipment
Product Features
1.Aluminium alloy shell
2.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
3.Battery protection management: Adopt well-known protection chips with good stability, high precision monitoring and precise control, to minimize safety risks.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
