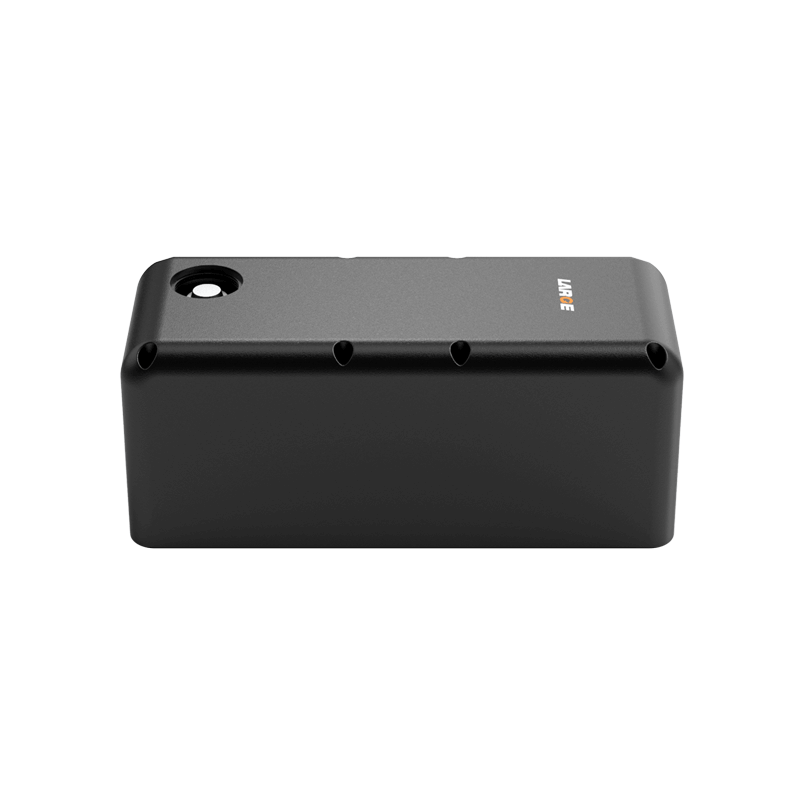

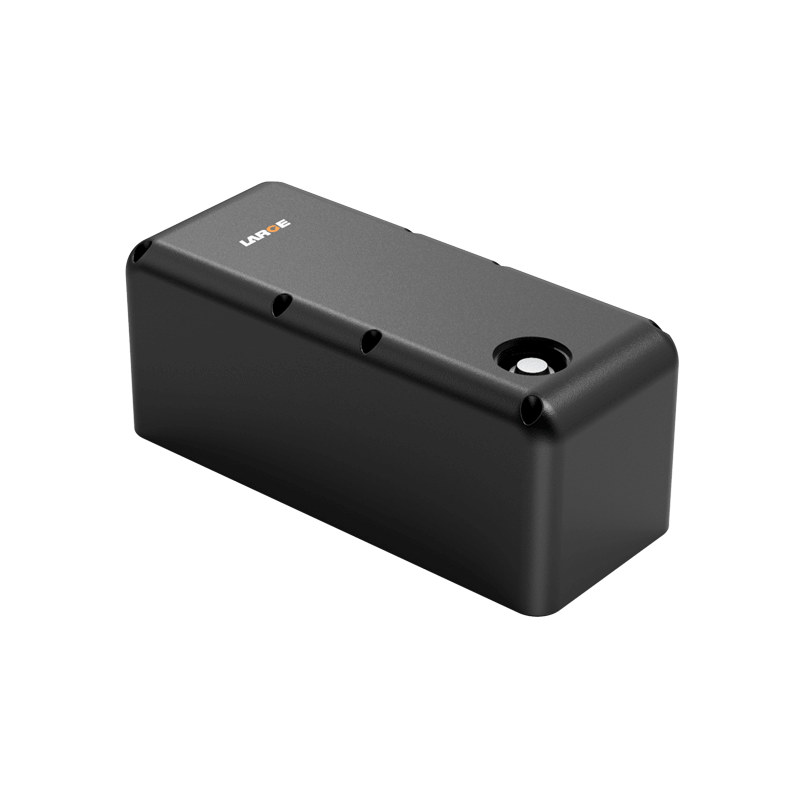

Custom Lithium ion Battery Pack
Product number: 00AQ-C726S-03
Cell model: INR18650/3350mah /3.6V
Specification: 18650/3S7P/10.8V/20Ah
Product size: 195±0.2mm×80±0.2mm×85±0.2mm
Nominal voltage: 10.8V
Nominal capacity: 20Ah
Charging voltage: 12.6V
Charging current: ≤10A
Discharge current: ≤10A
Discharge cut-off voltage: 9V
Finished product internal resistance: ≤120mΩ
Battery weight: ≤ 1850G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20°C ~+55 °C
Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+20℃ (less than 6 months)
Battery case: aluminum/black/matte
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Equipment
Product Features
1.Aluminium alloy shell
2.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
3.Battery protection management: Adopt well-known protection chips with good stability, high precision monitoring and precise control, to minimize safety risks.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
