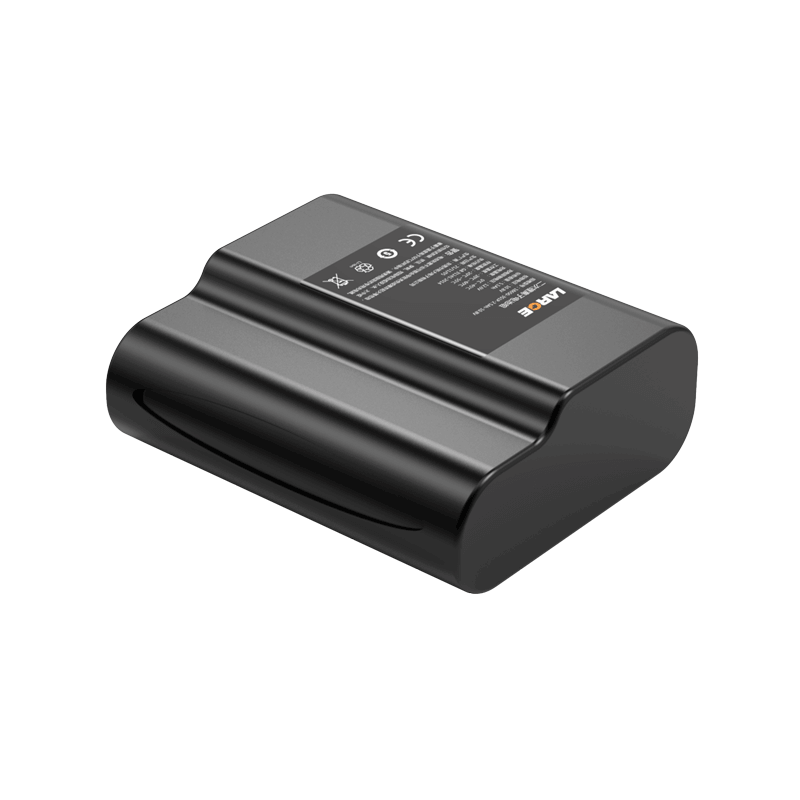

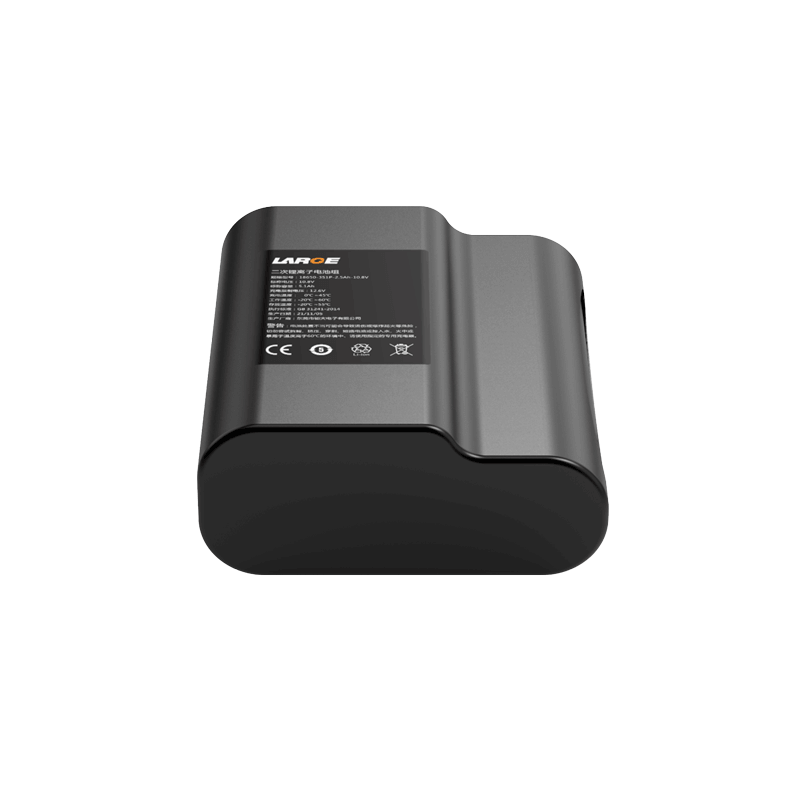

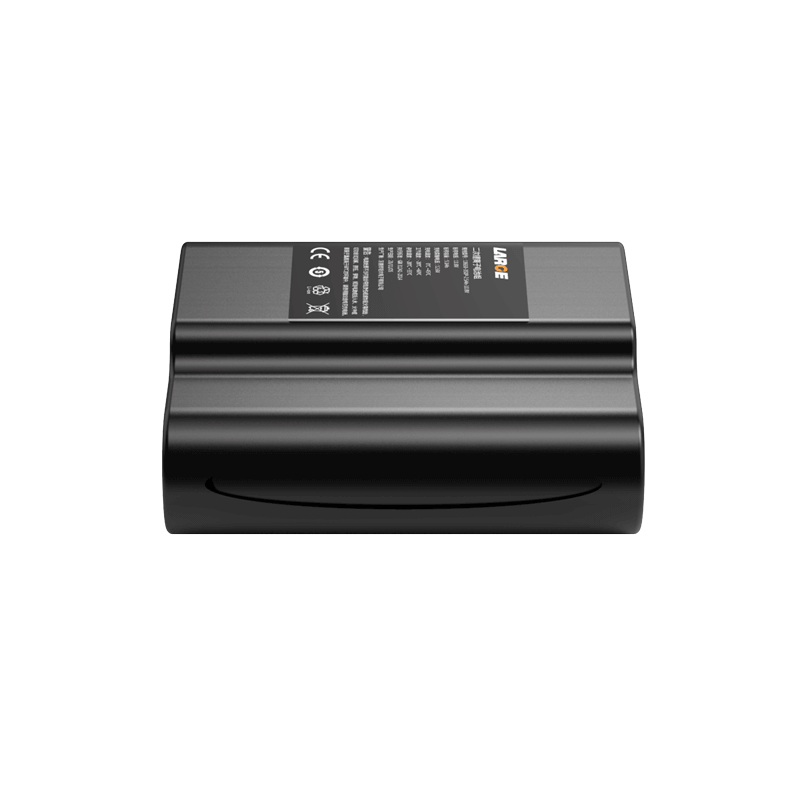

Custom Lithium ion Battery Pack
Product number: 01WQ0087-03TA
Cell model: 18650/2250mah /3.6V
Specification: 18650-3S1P-2.5AH-10.8V
Product size: 67*57*24mm (Max)
Nominal voltage: 10.8V
Nominal capacity: 2.55Ah
Charging voltage: 12.6V
Charging current: 1.225A
Discharge current: 2.45A
Discharge cut-off voltage: 8.4V
Product internal resistance: ≤200mΩ
Battery weight: 200G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to +55 ° C (less than 1 month) -20 to 45 ° C (less than 3 months); -20~+25℃ (less than 12 months)
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Portable massager
Product Features
1.PVC process is simple, reliable and easy to install.
2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values;
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
