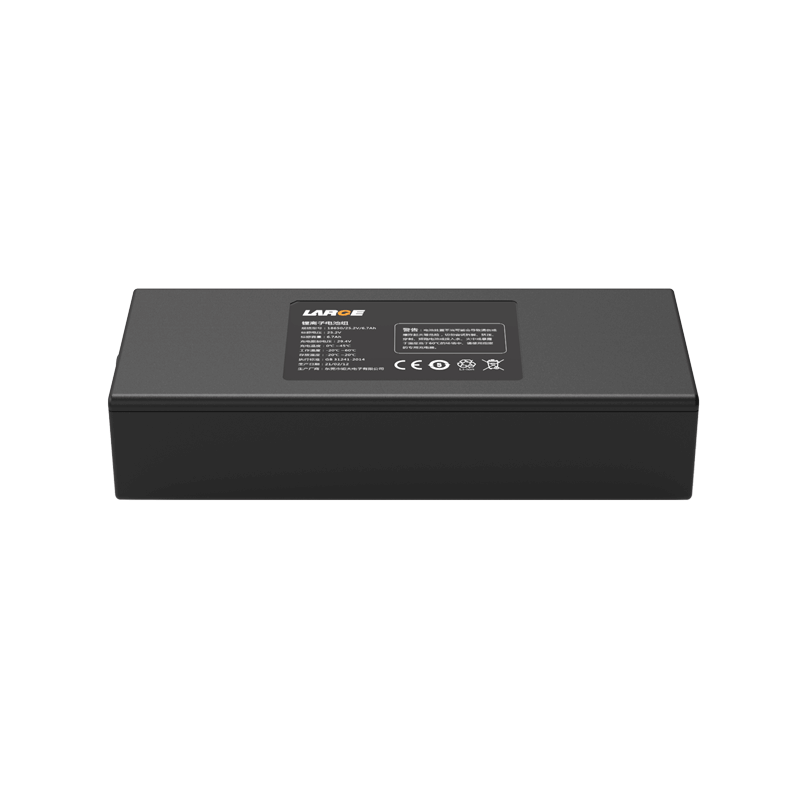

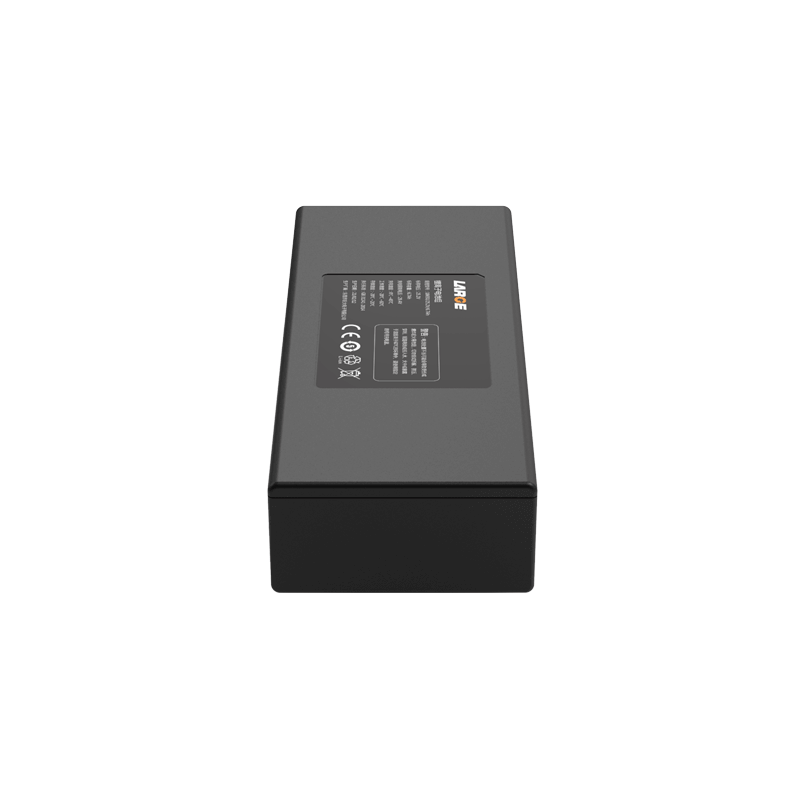

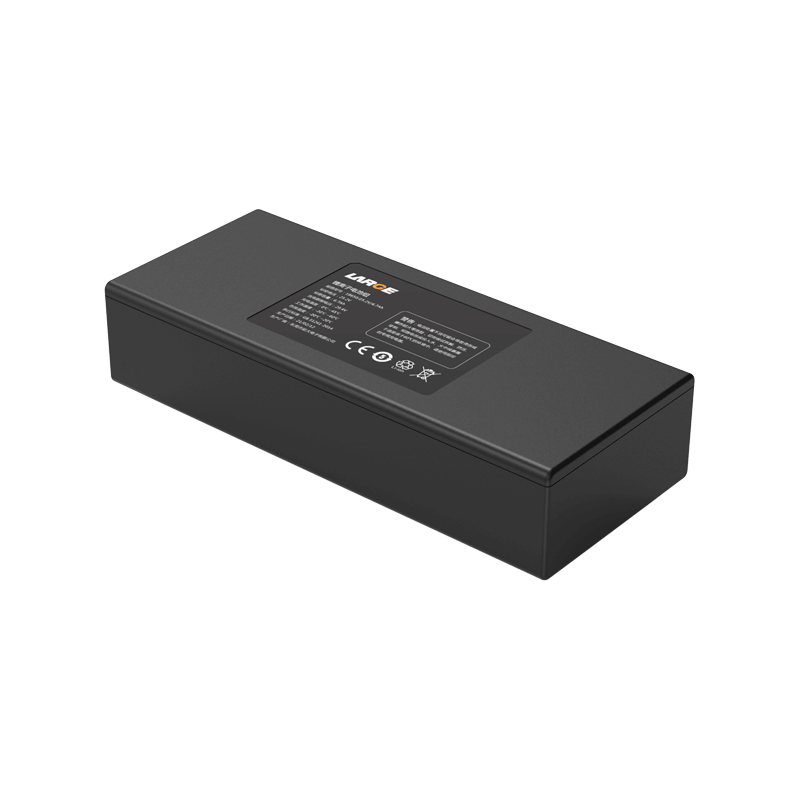

Custom Lithium ion Battery Pack
Product number: 36AQ0054-01
Cell model: 18650/3350mah /3.6V
Specification: 25.2V-6.7A
Product size: 169.5mm *71mm *35.6mm
Nominal voltage: 25.2V
Nominal capacity: 6.7Ah
Charging voltage: 29.4V
Charging current: 3.2A
Discharge current: 8.4A
Discharge cut-off voltage: 17.5V
Product internal resistance: ≤200mΩ
Battery weight: About 900G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)
Battery case: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Beidou communication equipment
Product Features
1.Plastic shell
2.SMBUS communication protocol
3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
4.Battery protection management: Adopt imported well-known brand protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
5.The battery pack is safe, has good discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
