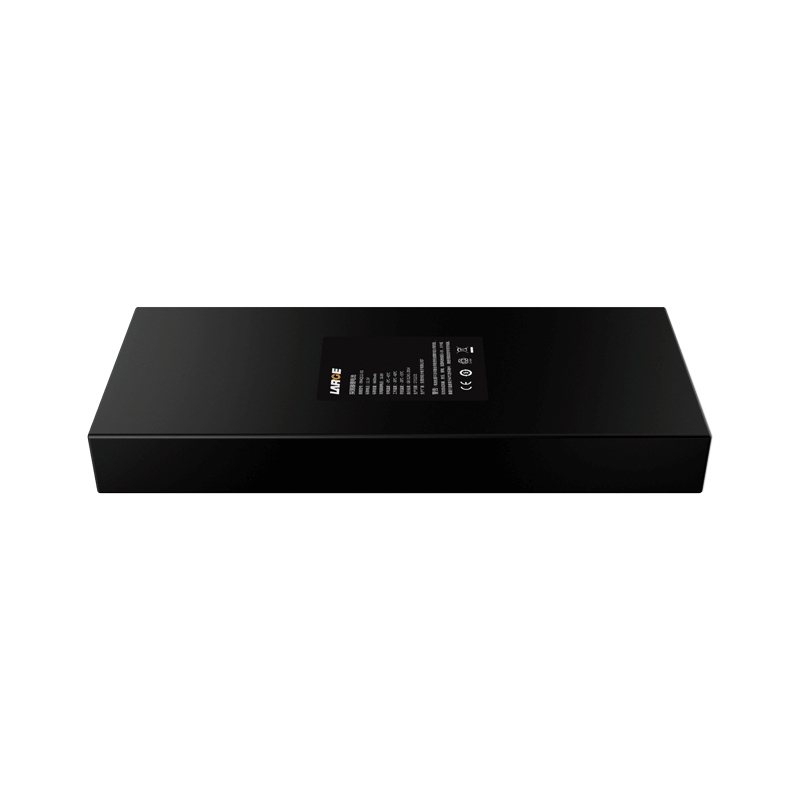

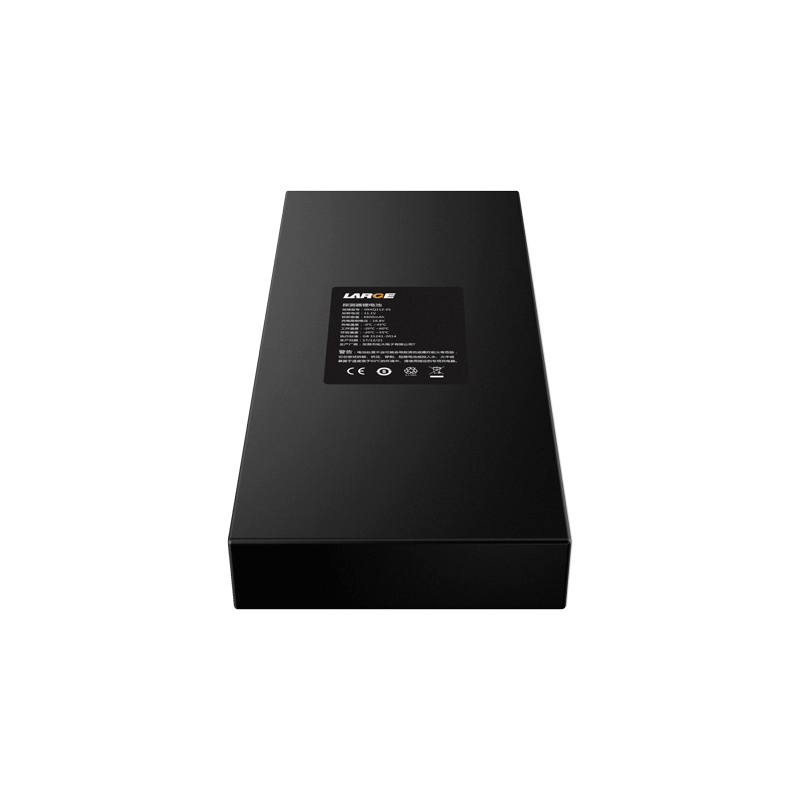

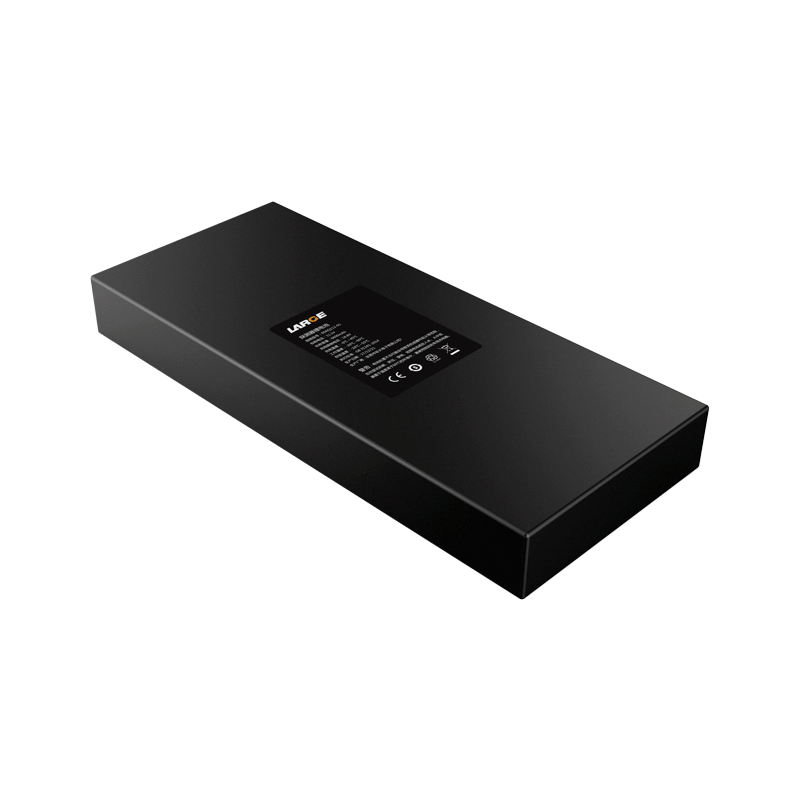

Custom Lithium ion Battery Pack
Product number : 09AQ112-01
Combination mode: ICR18650-3S3P
Nominal voltage: 11.1V
Working voltage: 7.5~12.6V
Nominal capacity: 6600mAh
Standard discharge continuous current: 0.2C
Maximum discharge continuous current: 1C
Operating temperature: Charging: 0~45℃
Discharge: - 20 ~ 60 ℃
Product dimension: Max 19.5*71*165mm
Finished product internal resistance: ≤300mΩ
Lead model: 5.5DC socket UL2468/22#, wire length 150mm
Protection parameters: overcharge protection voltage / 4.2±0.025V per series
Over-discharge protection voltage 2.5±0.08V
Over current value 8 ~ 12A
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
