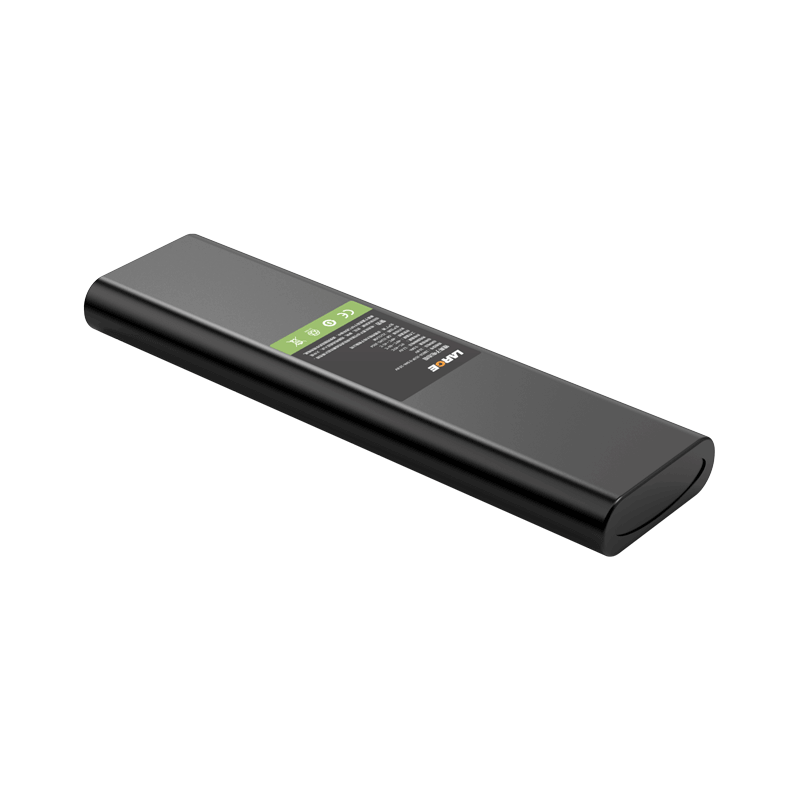

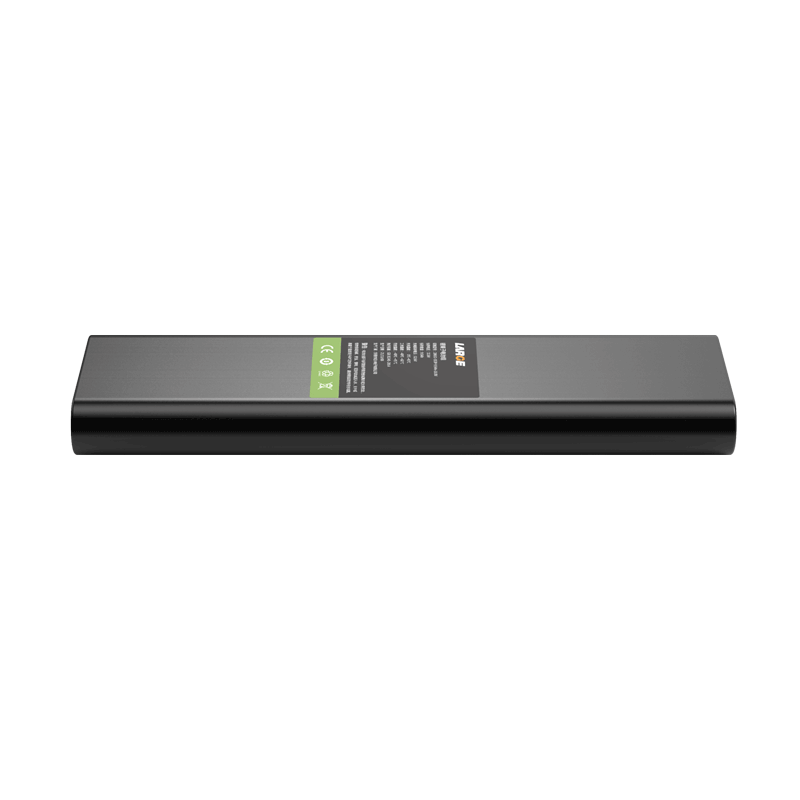

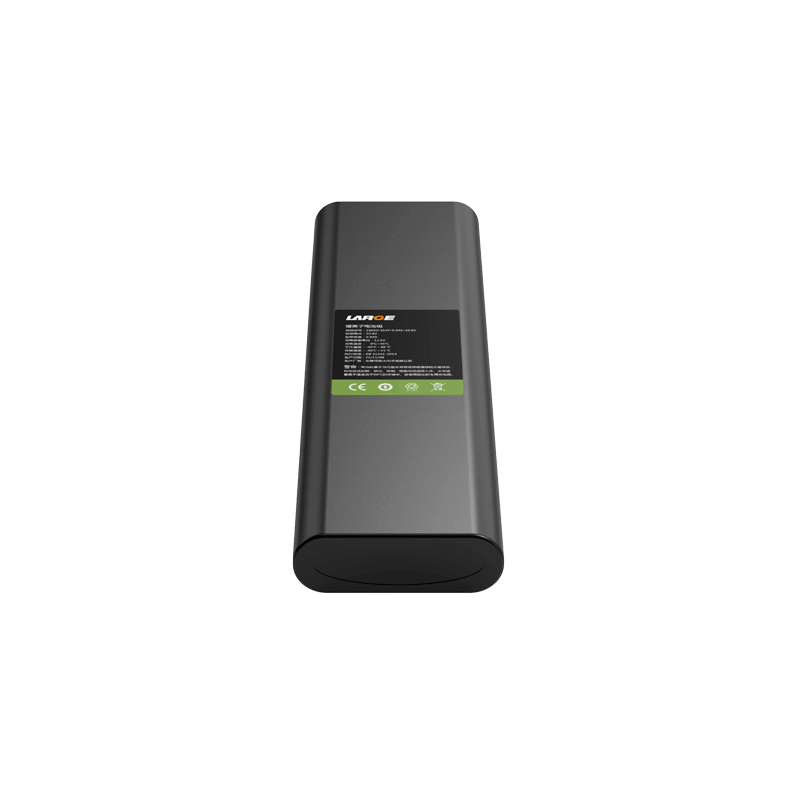

18650 10.8V 9.9Ah BAK Battery for Instrument with SMBUS Communication Protocol

Customization | Free Battery Solution

Product Detail

Product number: 36AQ500-03

Cell model: 18650/3350mah /3.6V

Specification: 18650-3S3P-9.9 AH-10.8V

Product size: 203*57*19.5mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 9.9Ah

Charging voltage: 12.6V

Charging current: 3A

Discharge current: 3A

Discharge cut-off voltage: 7.5V

Product internal resistance: ≤180mΩ

Battery weight: ≤ 520G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 65 ℃

Storage temperature: -40 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)

Battery case: PVC process

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Instrumentation


Product Features

1.Plastic shell is simple, reliable and easy to install.

2.SMBUS communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
