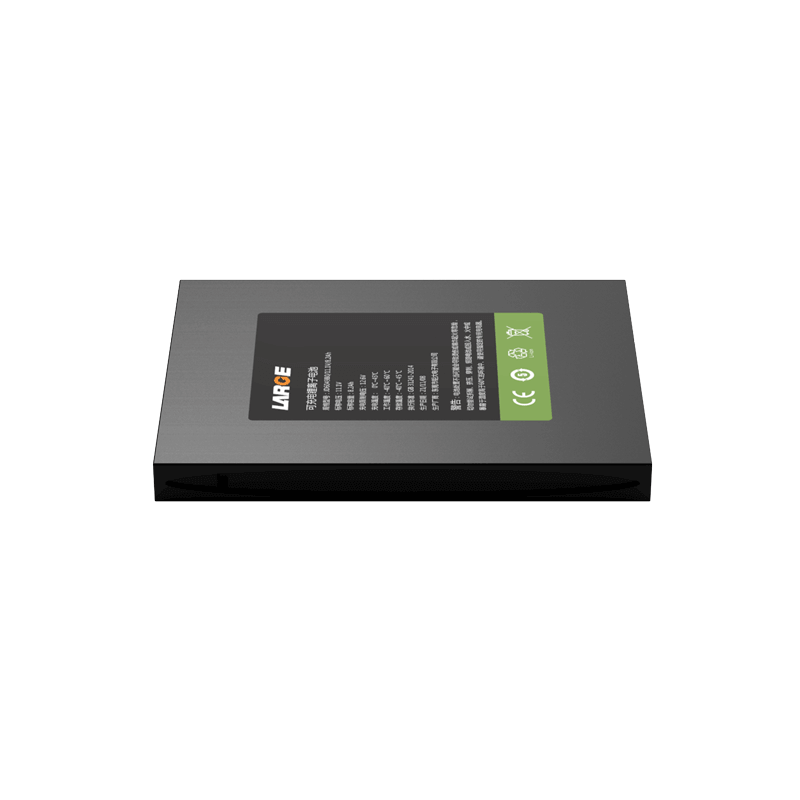

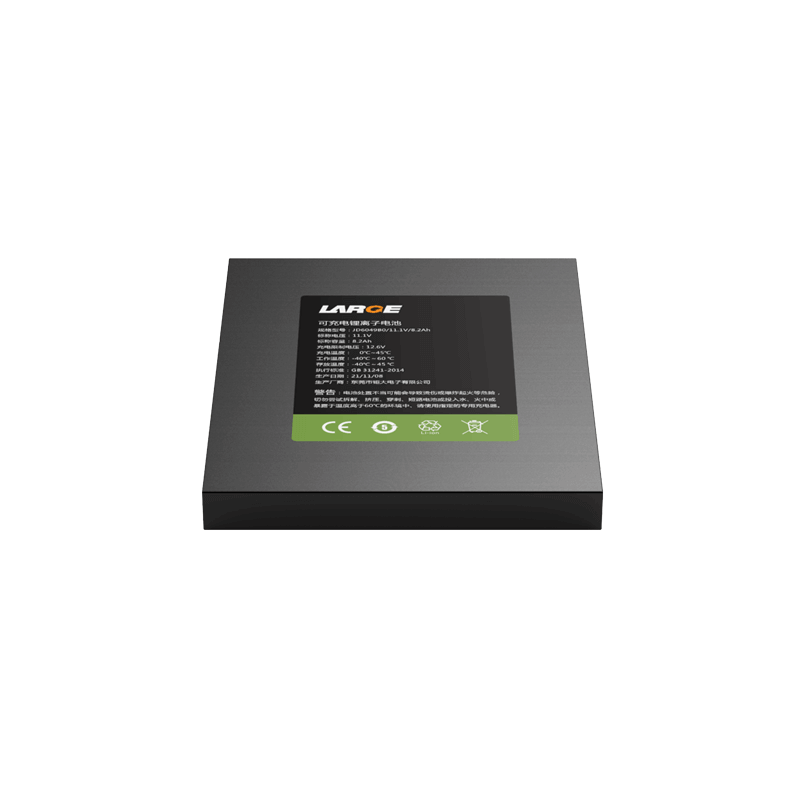

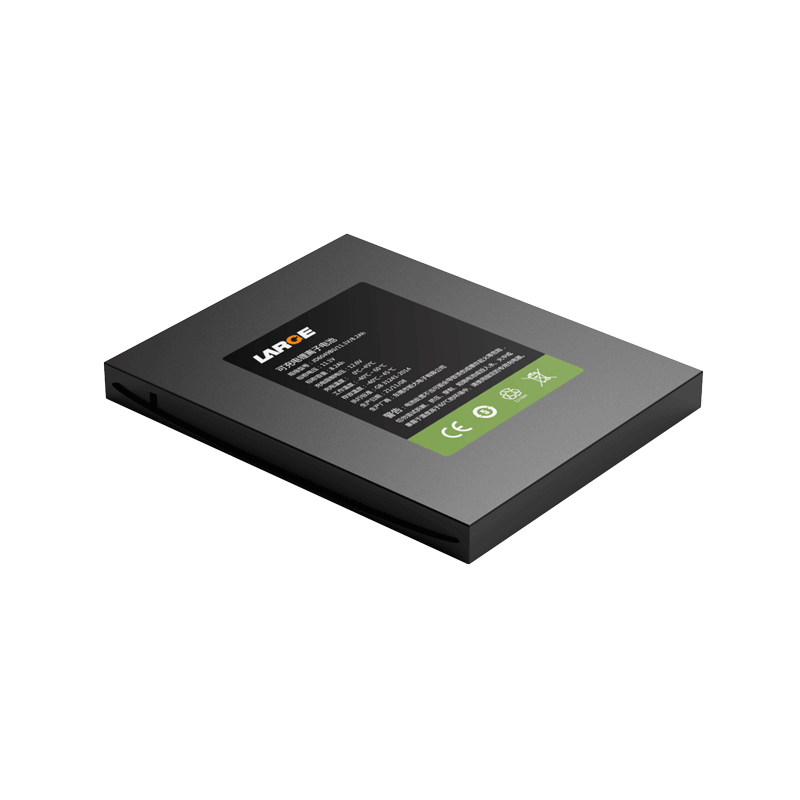

11.1V 8.2Ah Lithium Polymer Battery for Laptop

Customization | Free Battery Solution

Product Detail

Product number: 66AQ018-03

Cell model: JD6049B0/4100mAh/3.7V

Specification: 11.1V-8.2AH

Product size: 148mm*120mm*13mm

Nominal voltage: 11.1V

Nominal capacity: 8.2Ah

Charging voltage: 12.6V

Charging current: 4.1A

Discharge current: 4.1A

Discharge cut-off voltage: 7.5V

Product internal resistance: ≤200mΩ

Battery weight: 485G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40 to +45 ° C (less than 1 month) -40 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)

Battery packaging: PVC process

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: laptop

Product Features

1.PVC process is simple, reliable and easy to install.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported well-known protection chips, featuring high stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
