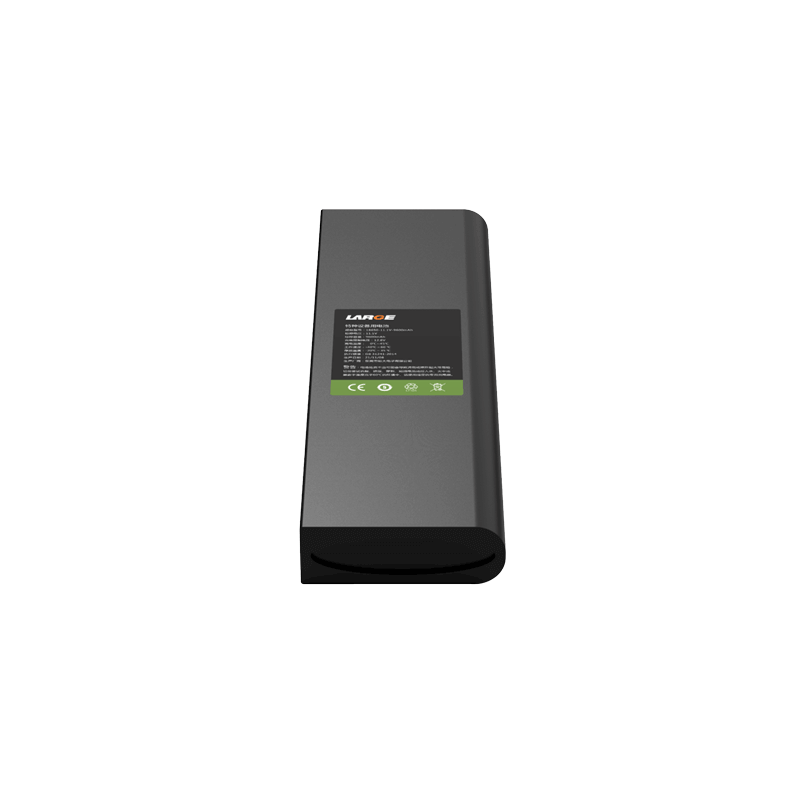

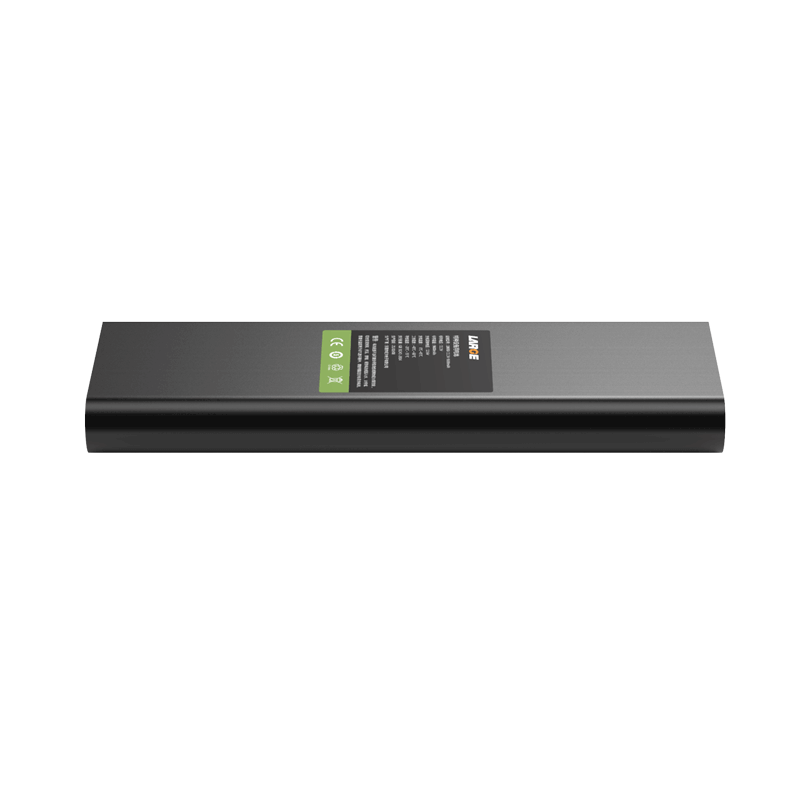

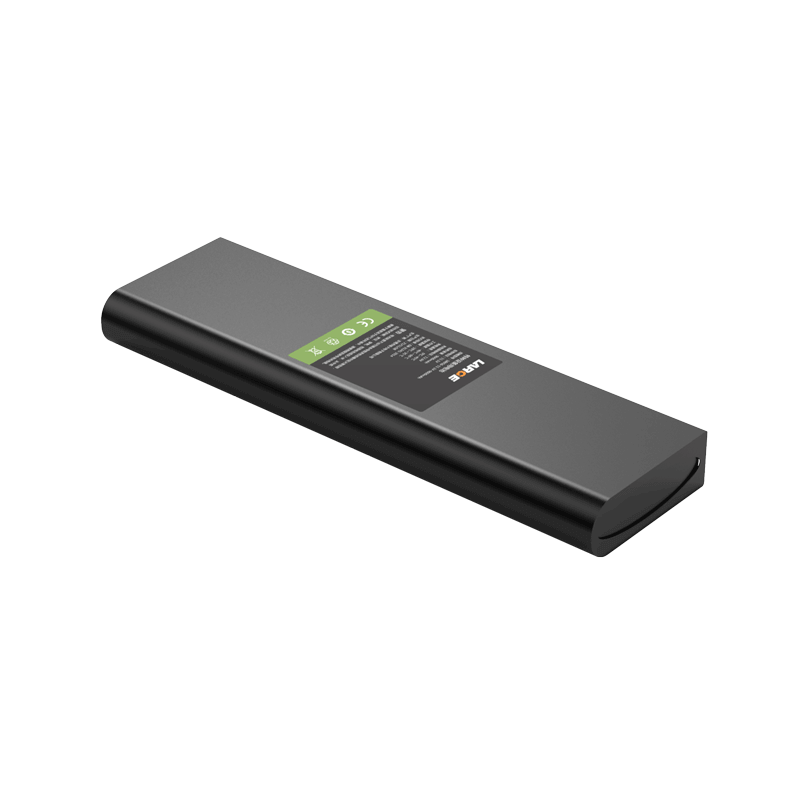

Custom Lithium ion Battery Pack
Product number: 35AQ101-01
Cell model: 18650-3350MAH-3.6V
Specification: 11.1V-9600mah
Nominal voltage: 10.8V
Nominal capacity: 9600mAh
Charging voltage: 12.6V
Charging current: ≤4.8A
Discharge current: 4.8A
Instantaneous discharge current: 4.8A
Discharge cut-off voltage: 7.5V
Finished product internal resistance: ≤90mΩ
Battery weight: 500G
Product size: 200*58*19.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.
Application: special laptop, portable equipment, security
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
