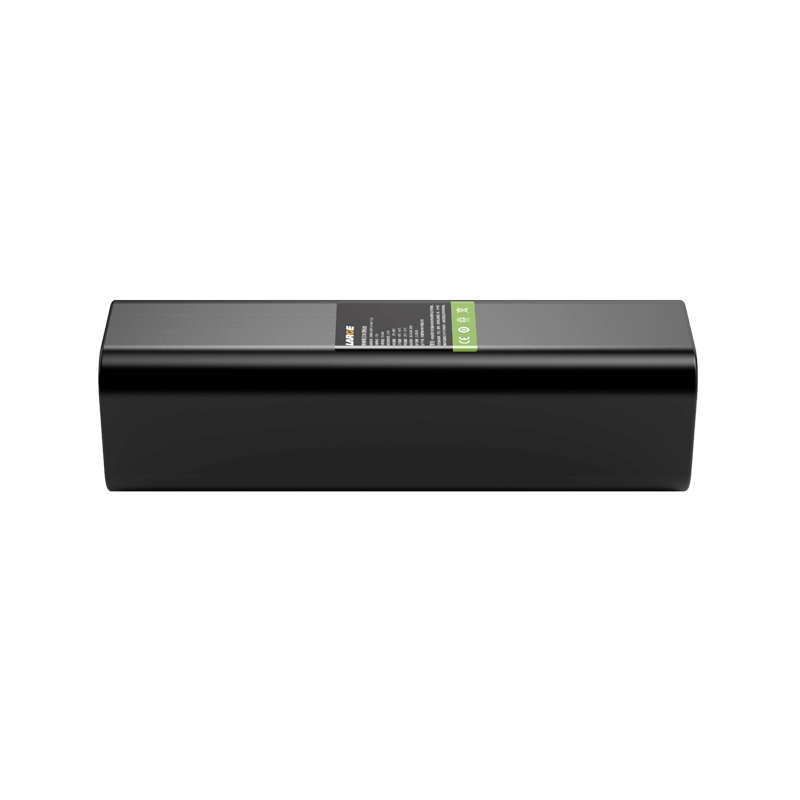

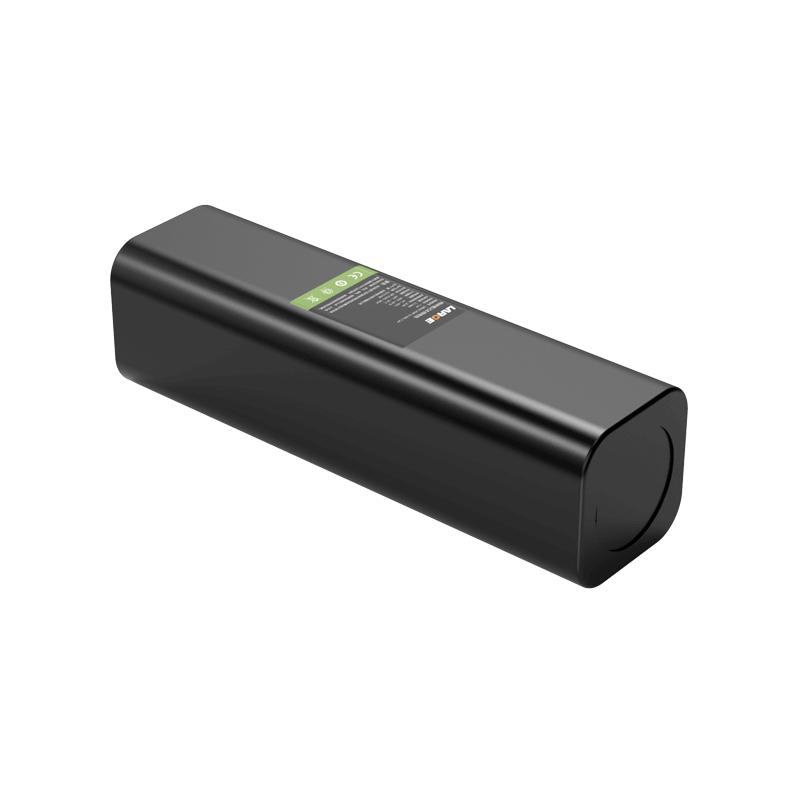

Custom Lithium ion Battery Pack
Product number: 36AQ581-01
Cell model: 18650-3350MAH-3.6V
Specification: 18650-2S4P-13.4Ah-7.2V
Nominal voltage: 7.2V
Nominal capacity: 13.4Ah
Charging voltage: 8.4V
Charging current: ≤4.0A
Discharge current: 2.56A
Instantaneous discharge current: 5.0A
Discharge cut-off voltage: 5.0V
Product internal resistance: ≤200mΩ
Battery weight: 420 GB
Product size: 137*38*38mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ +60 ℃
Storage temperature: -20 to 35 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.
Application: special laptop, portable equipment, security field
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
