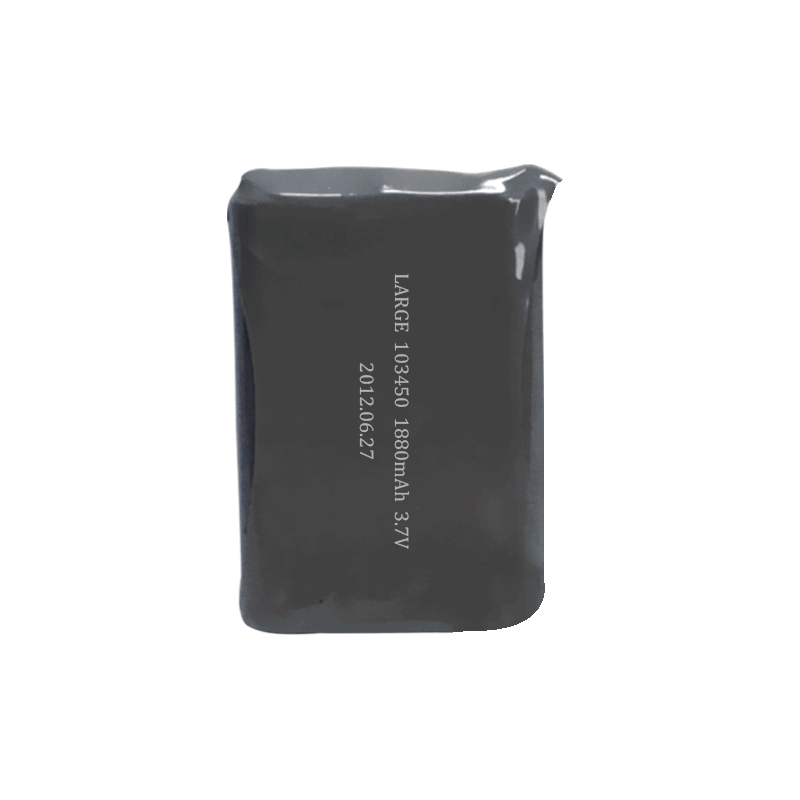

103450 3.7V 1880mAh Ternary Battery Lithium-ion Battery

Customization | Free Battery Solution

Product Detail

Product number: 03WQ006-01

Battery specification: UF103450P / 1 s1p / 1880 mah / 3.7 V

Nominal voltage: 3.7V

Nominal capacity: 1880mAh (0.2C discharge to 2.75V)

Delivery voltage: 3.70V~3.9V

Product dimension: MAX52.5×35.5×11mm

Internal resistance: ≤170mΩ

Output mode: UL 1007 24# 65±2 red and black, wire strip 2±0.5mm

Weight: 43 g

Executive standard: GB/T 18287-2000

Shelf life: 12 months

Operating temperature: 0~45℃ (charging), -20~60℃ (discharging)

Battery charging: Charging limit voltage: 4.2V Charging current: 376 mA(standard), 1880mA(maximum)

Battery discharge: Discharge cutoff voltage: 2.75V Discharge current: 376mA(standard), 1880mA(maximum)
