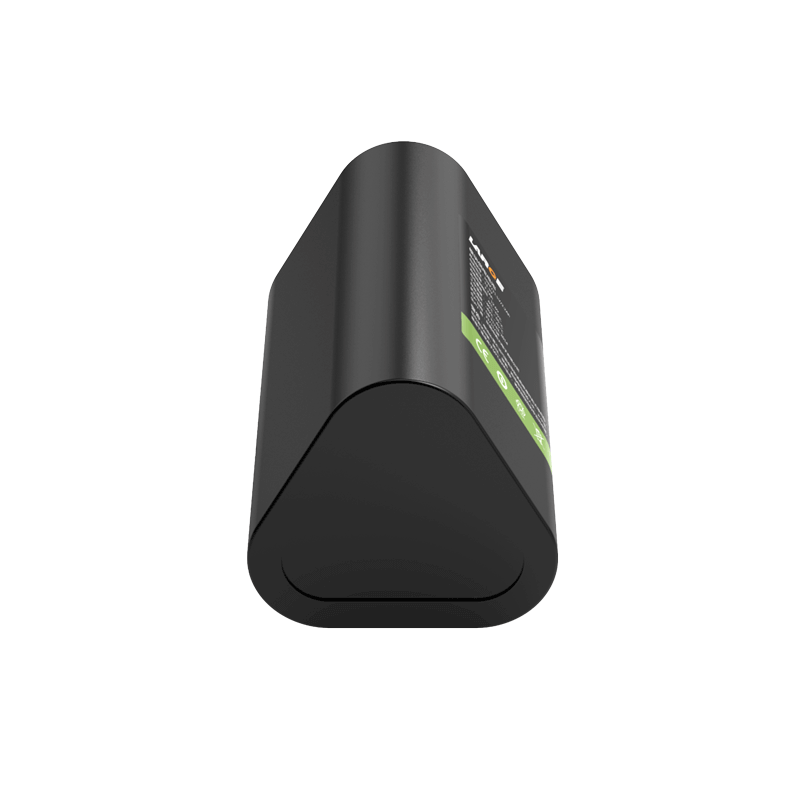

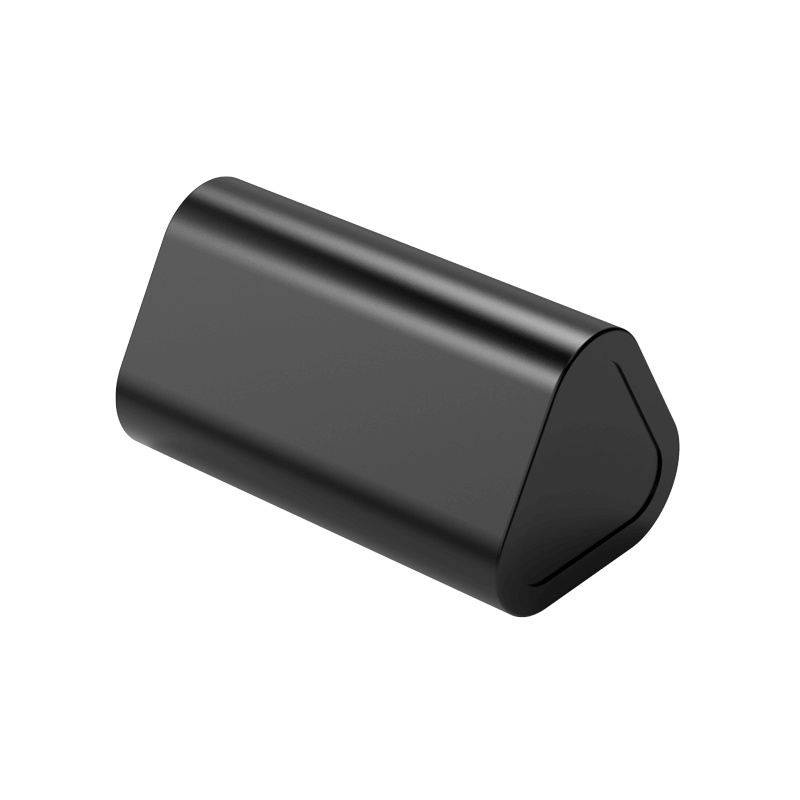

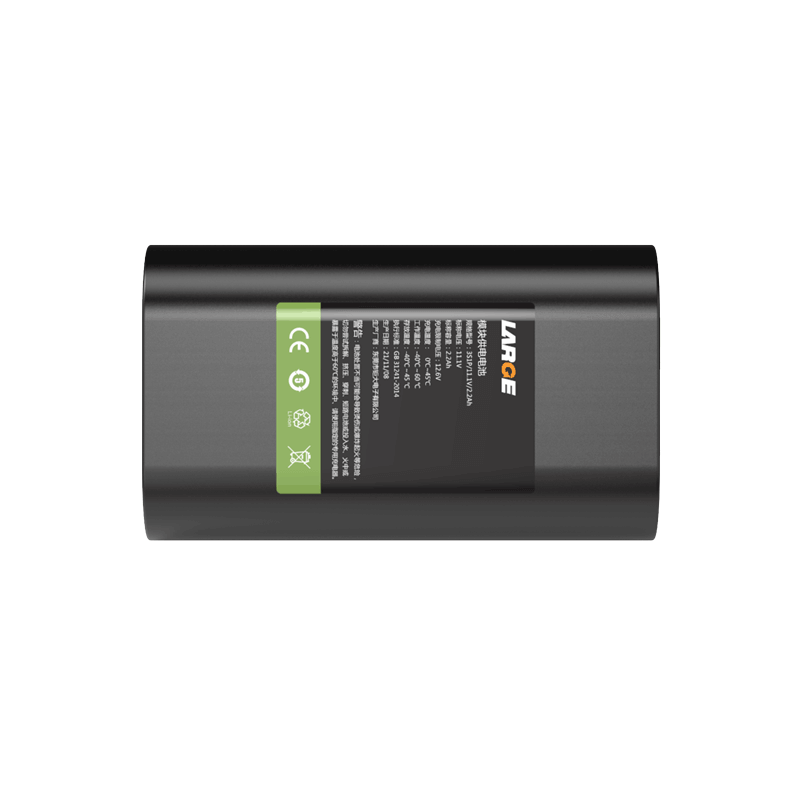

Project number: 42DZ002-02
Cell model: 18650 3.7V/ 2.2AH
Specification: 3S1P/11.1V/ 2.2AH (low temperature type)
Nominal voltage: 11.1V
Nominal capacity: 2.2Ah
Charging voltage: 12.6V
Charging current: ≤ 1.1A
Discharge current: 2.2A
Instantaneous discharge current: 4-10A
Discharge cut-off voltage: 7.5V
Product internal resistance: ≤200mΩ
Battery weight: 200G
Product size: 38.5*38*68mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40°C to 45°C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: module power supply, intelligent switch
1.Energy consumption is low;
2.The battery pack is safe and has long cycle life.
3.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
