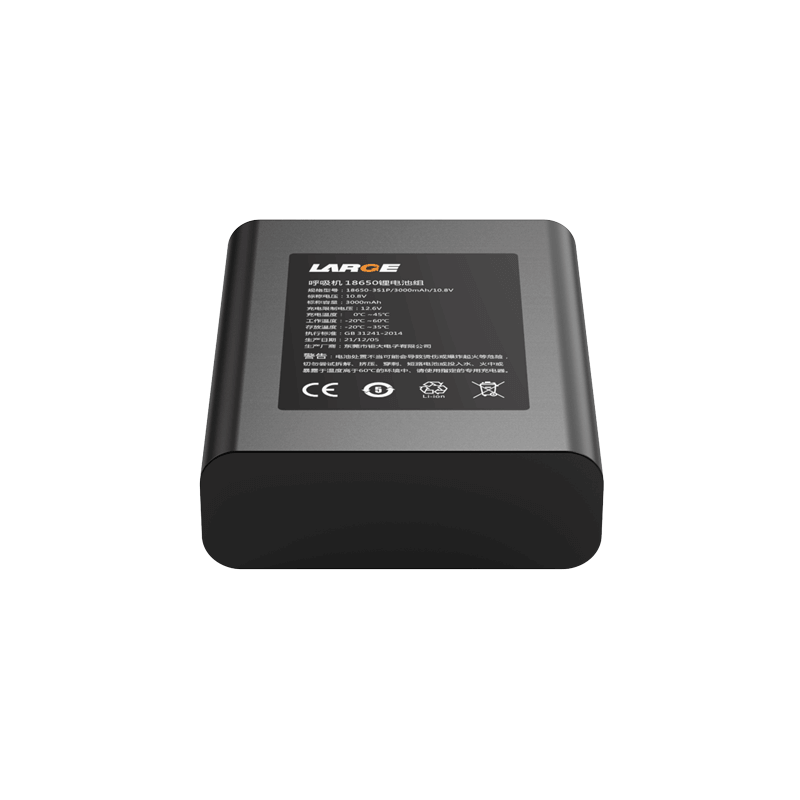

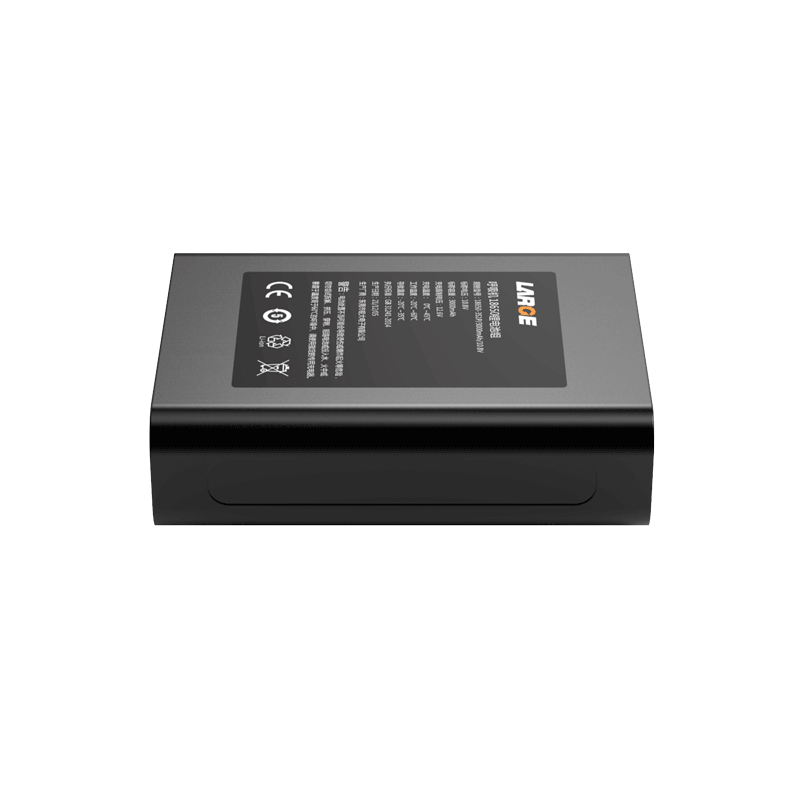

Custom Lithium ion Battery Pack
Project number: 04DQ0082-01T
Cell model: NCR18650BD/3180mAh/3.6V
Specifications: 18650-3S1P/3000mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 3180mAh
Charging voltage: 12.6V
Charging current: ≤0.909A
Discharge current: 2.0A
Instantaneous discharge current: 5.0A
Discharge cut-off voltage: 7.50V
Internal resistance: ≤250mΩ
Battery weight: 160G
Product size: 19.5*56*69.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: /
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: respirator
