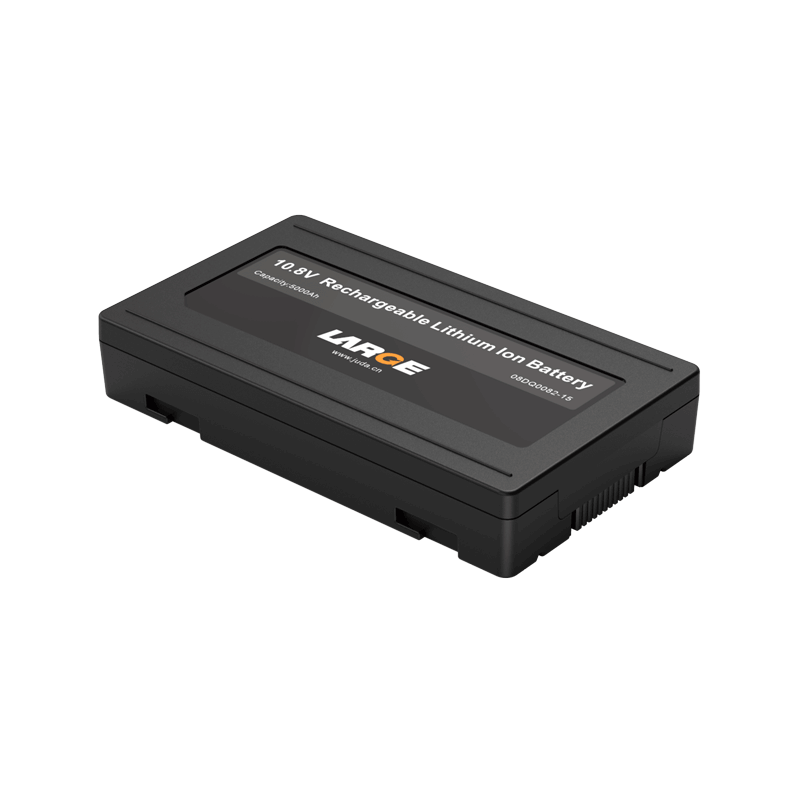

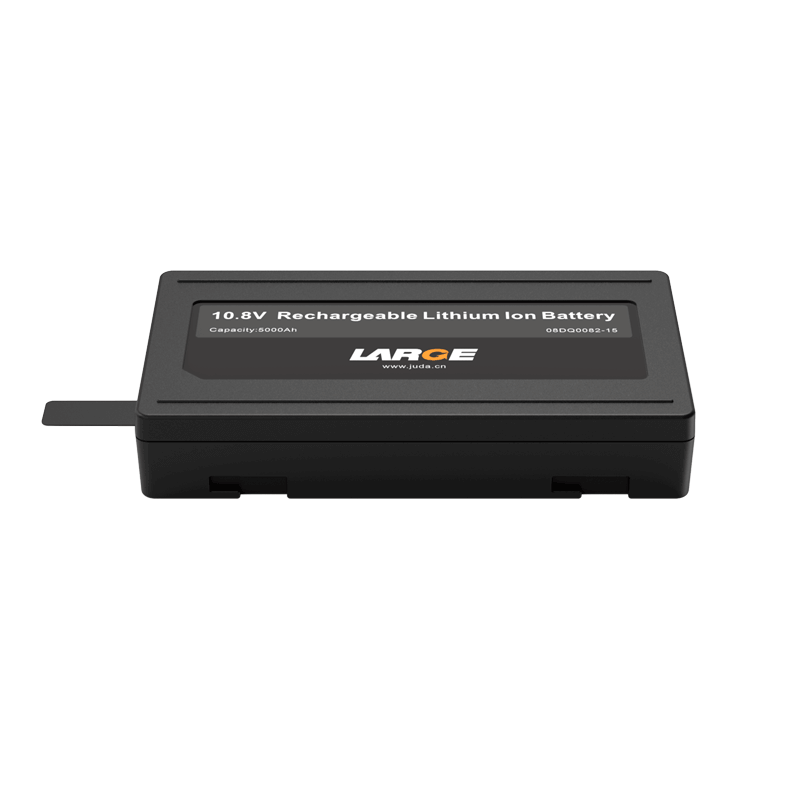

Custom Lithium ion Battery Pack
Project number: 08DQ0082-15
Cell model: H18650CQ/2550mAh/3.6V
Specification: 18650-3S2P/5000mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 5000mAh
Charging voltage: 12.6V
Charging current: ≤2.25A
Discharge current: 5.10A
Instantaneous discharge current: 11.0A
Discharge cut-off voltage: 8.52V
Product internal resistance: ≤200mΩ
Battery weight: 450G
Product size: 23.0*75*130mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 °C
Battery case: /
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: respirator
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
