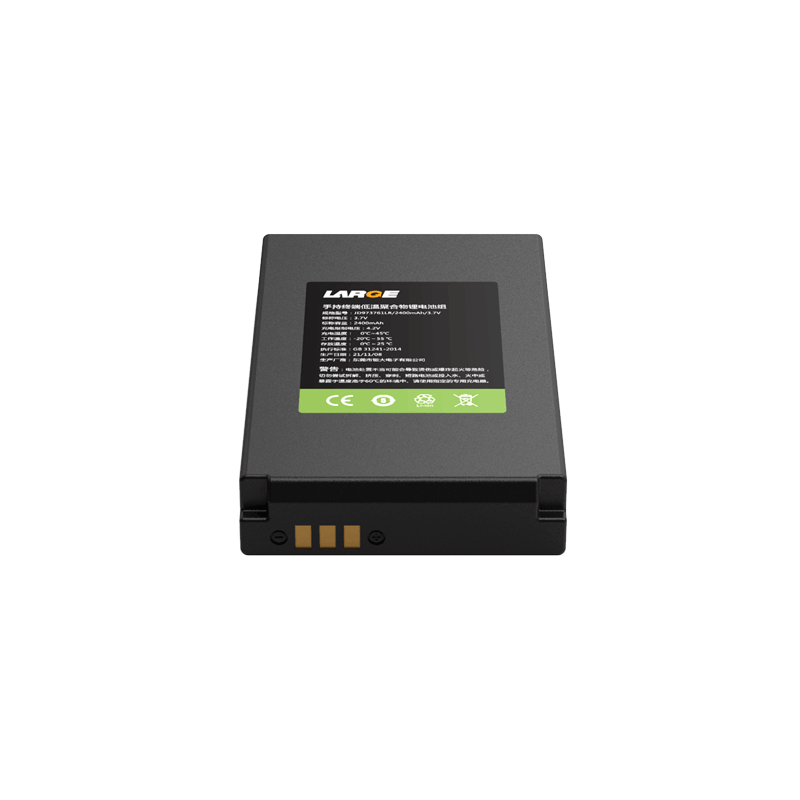

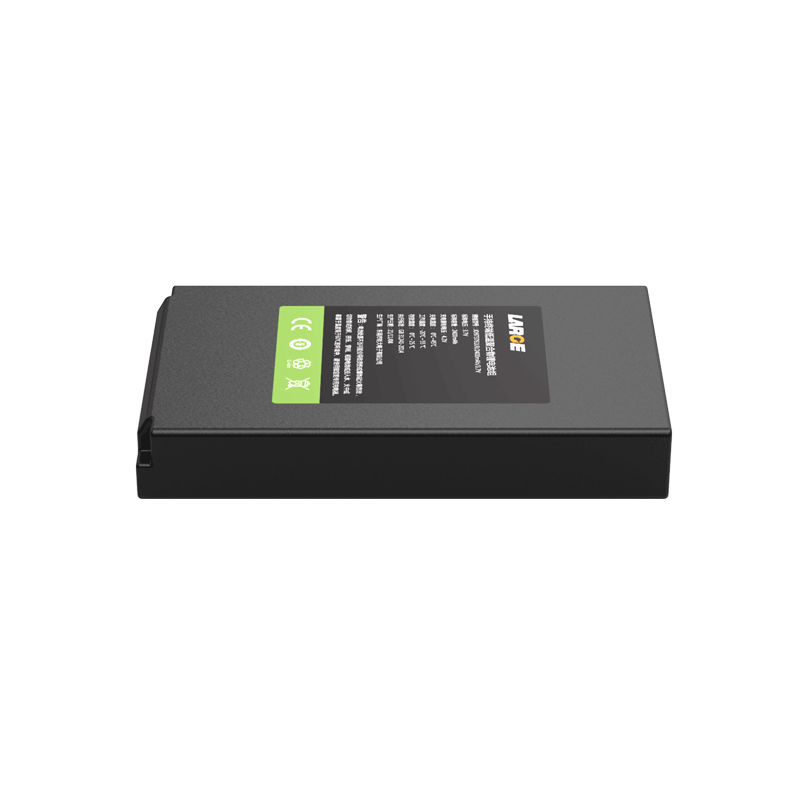

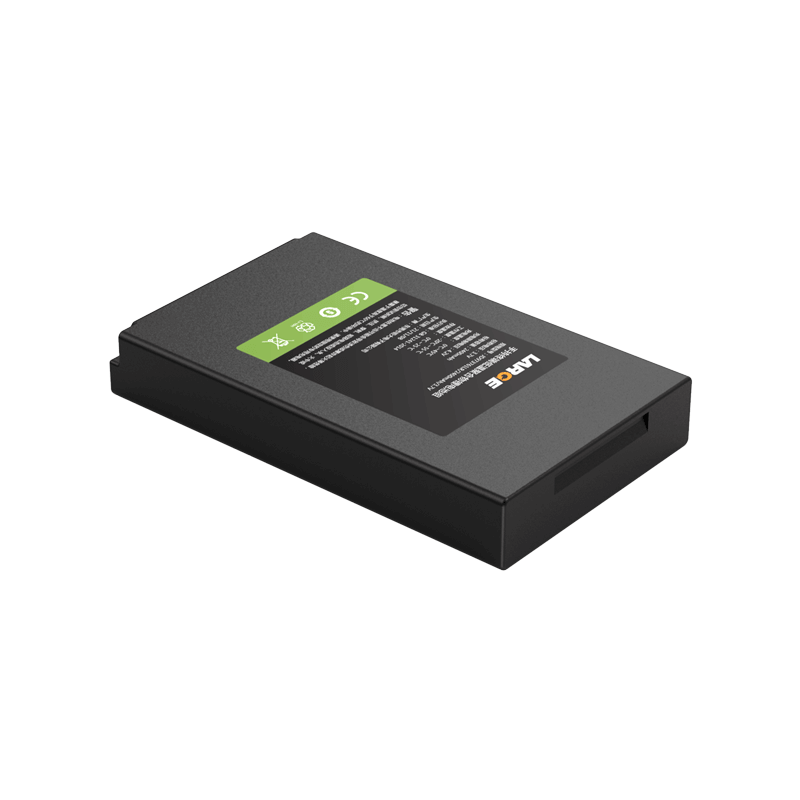

Custom Lithium ion Battery Pack
Project number: 35AQ464-02
Cell model: JD973761LR/2400mAh/3.7V- low temperature
Specification: JD973761LR/2400mAh/3.7V- low temperature
Nominal voltage: 3.7V
Nominal capacity: 2400mAh
Charging voltage: 4.2V charging
Charging current: ≤1.25A
Discharge current: 2.4A
Instantaneous discharge current: 5.0A
Discharge cut-off voltage: 3.0V
Product internal resistance: ≤180mΩ
Battery weight: 50G
Product size: 10.5*40.2*68.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: 0 to 25 ° C
Battery case: /
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Handheld terminal
