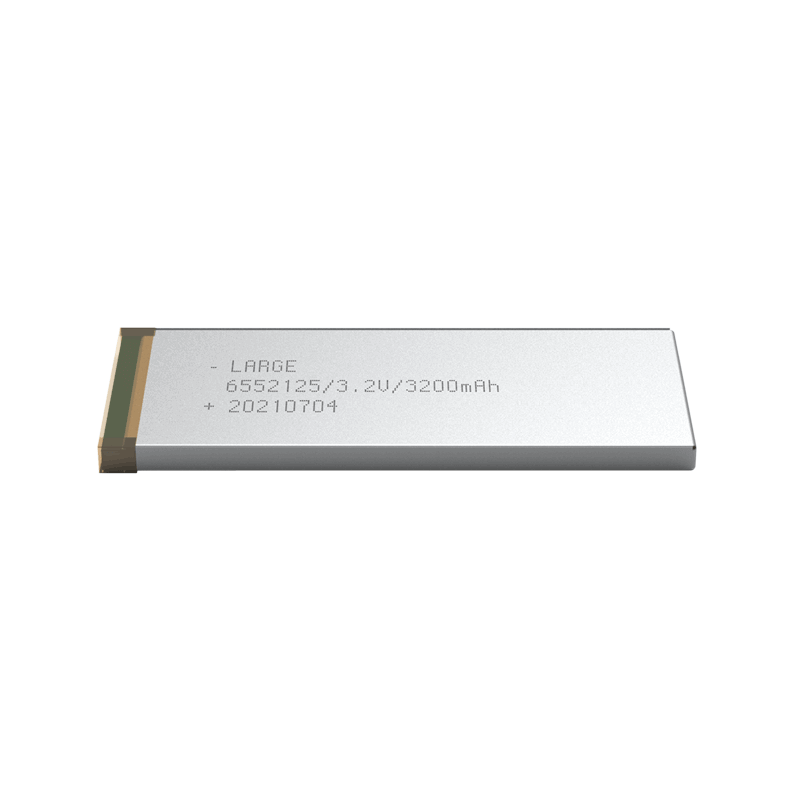

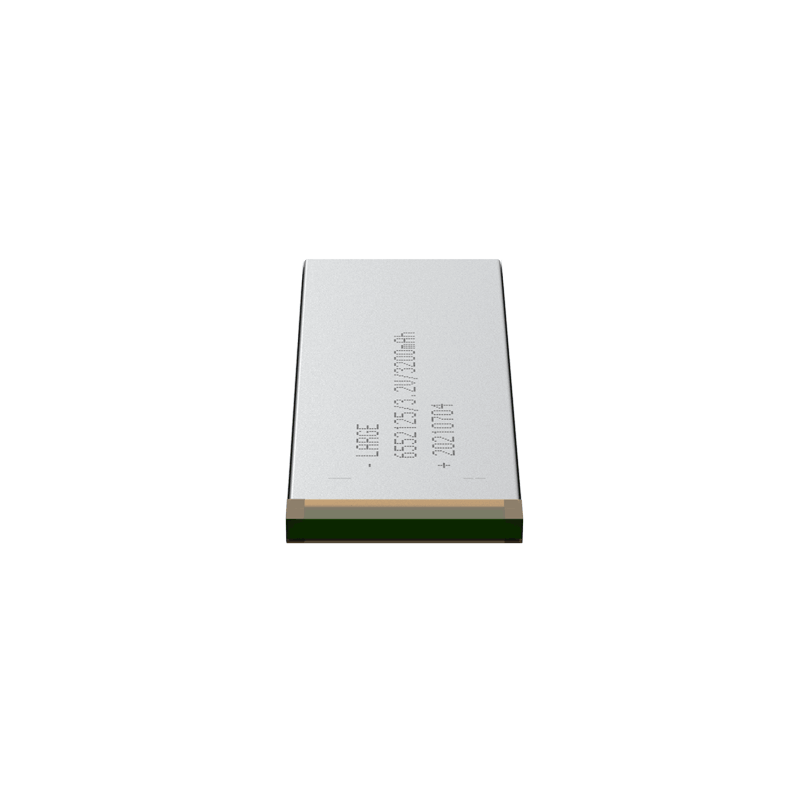

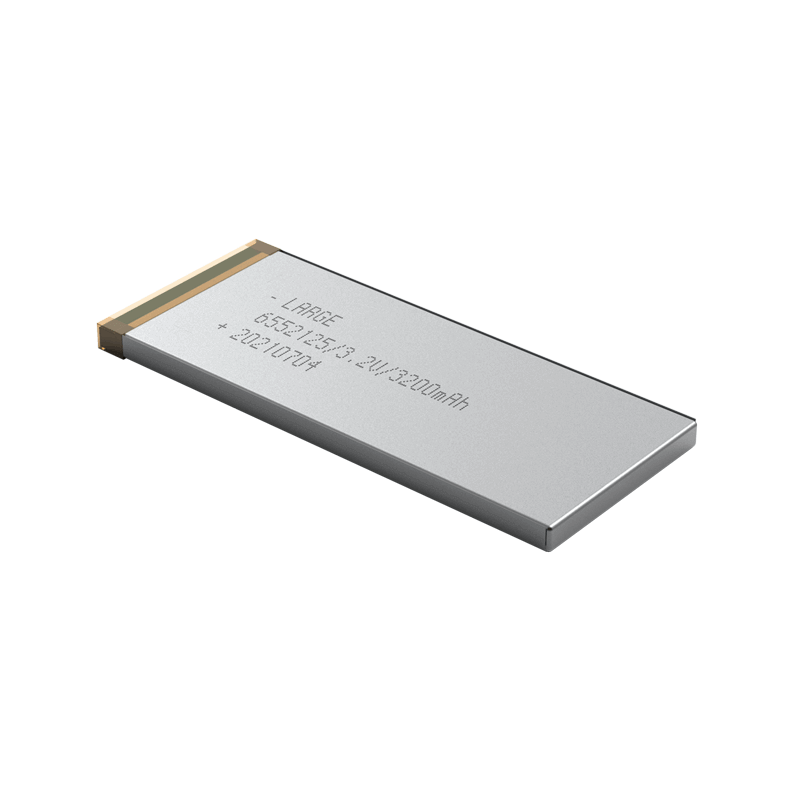

3.2V 3200mAh LiFePO4 Battery
For Backup Power Battery
-
Model number:37DZ076-02
-
Nominal voltage:3.2V
-
Nominal capacity:3200mAh
-
Battery cell:6552125-1S1P/3.2V/3200mAh
-
Dimension:6.5*54*132mm (Max)
-
Application:access control power battery
Product number:37DZ076-02
Cell model: 6252125/3.2V/3200mAh
Battery specification: 6552125-1S1P/3.2V/3200mAh
Nominal voltage: 3.2V
Nominal capacity: 3200mAh
Charging voltage: 3.65V
Charging current: ≤ 2.5a
Discharge current: 3A
Instantaneous discharge current: 5-12A
Discharge cut-off voltage: 2.0V
Finished product internal resistance: ≤110mΩ
Battery weight: 78G
Product size: 6.5*54*132mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Battery shell: Polymer battery plus board out terminal wire
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: access control power battery
