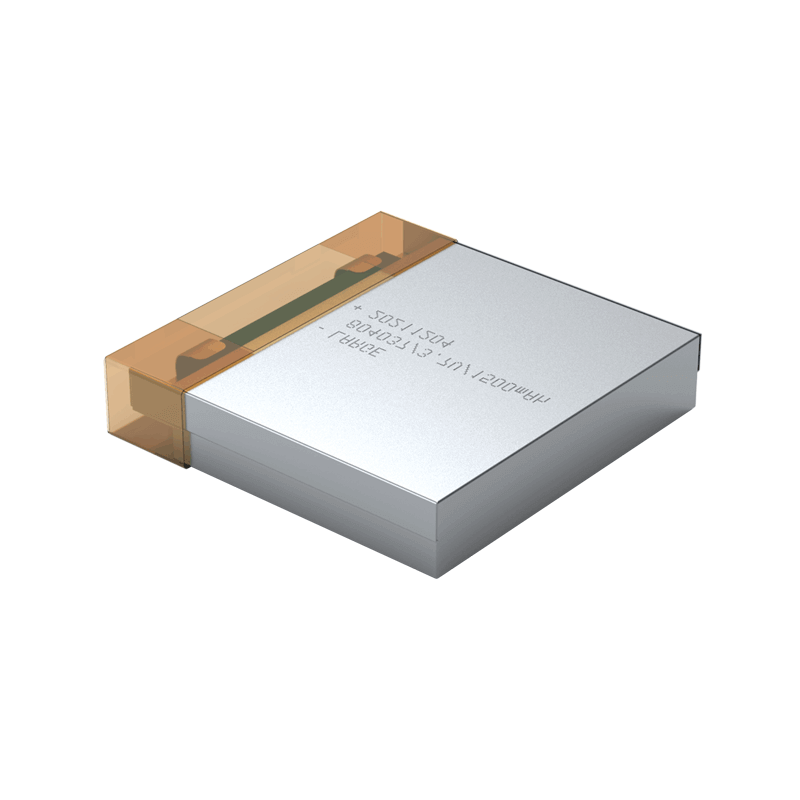

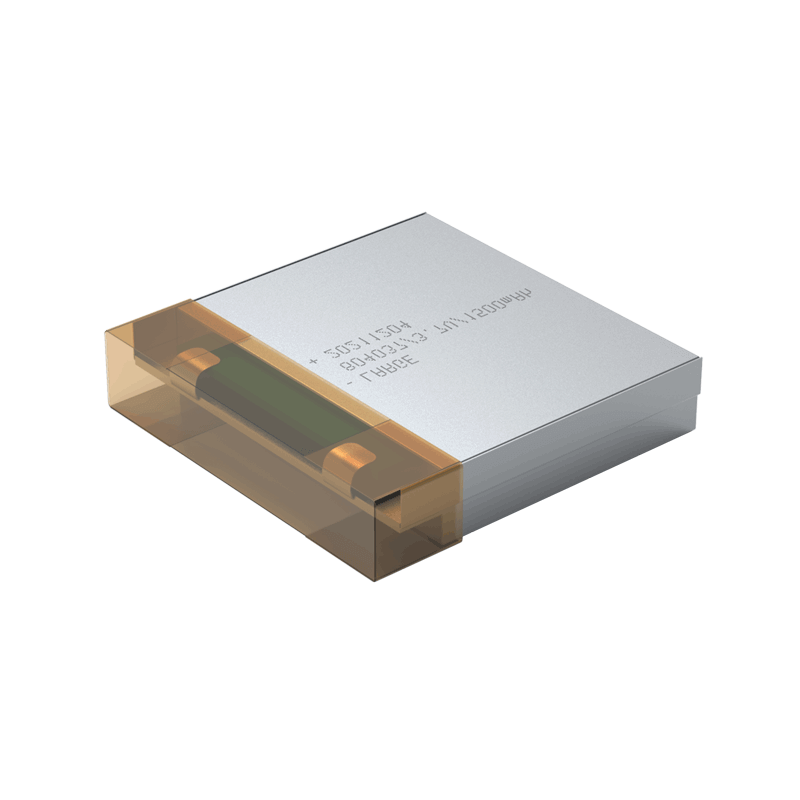

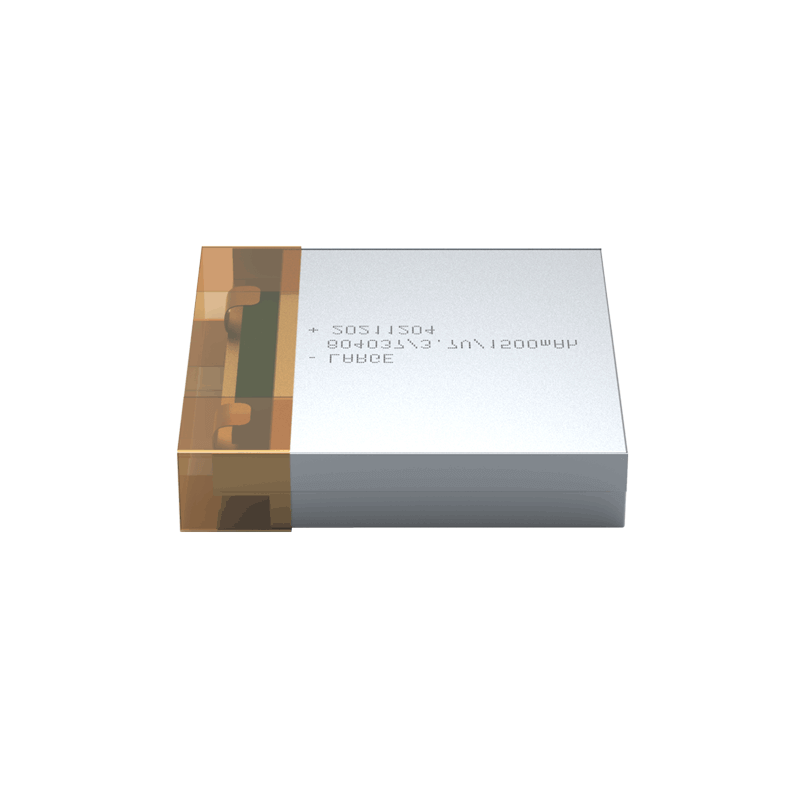

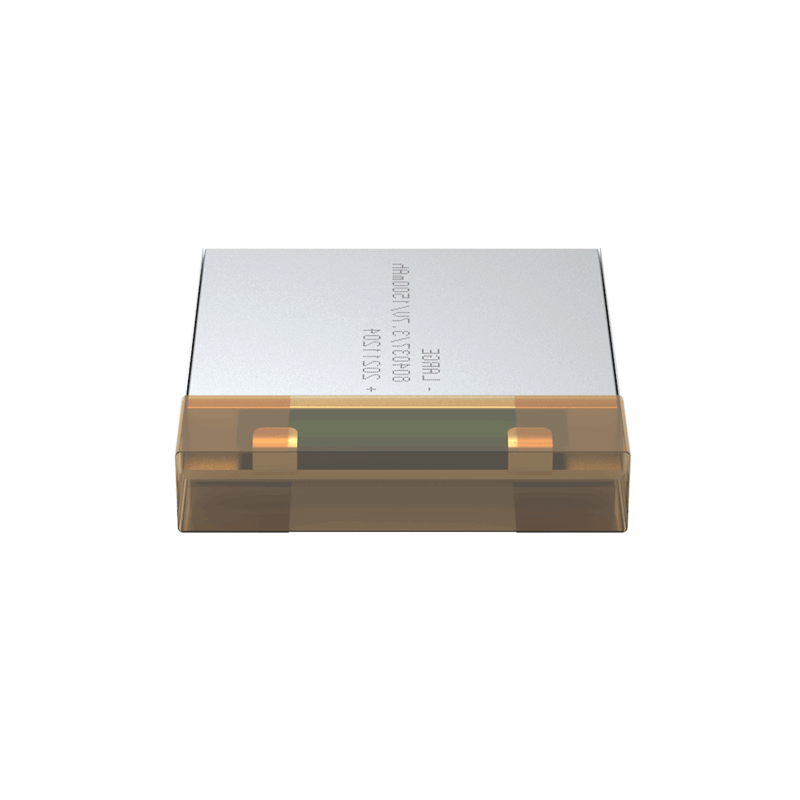

1500mAh 3.7V Lithium-ion Battery for IR Night Vision

Customization | Free Battery Solution

Product Detail

Product number: 36AQ517-09

Cell model: 804037-1500MAH-3.7V

Specification: 804037-1S1P-1500MAH-3.7V

Product size: 40.5*40*8.5mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 1500mAh

Product internal resistance: ≤200mΩ

Charging voltage: 4.2V

Charging current: ≤0.75A

Discharge current: ≤0.75A

Discharge cut-off voltage: 3.0V

Battery weight: 30G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: simple packaging

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Infrared night vision, portable testing equipment

Product Features

1.The package is simple, reliable and easy to install.

2.Connection output terminal: Adopt JST dedicated plug to increase the reliability of conduction.

3.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
