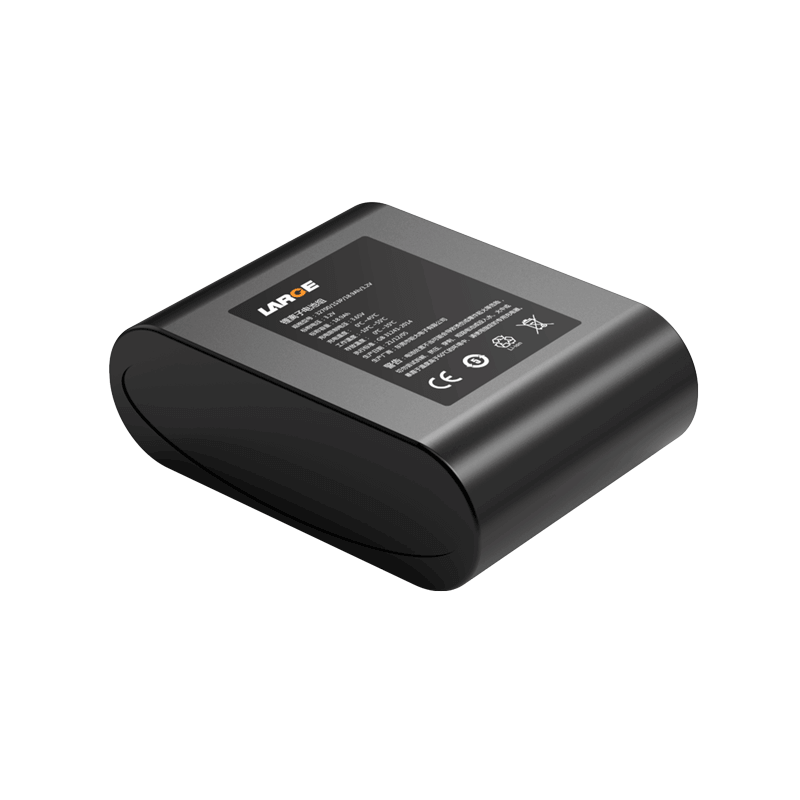

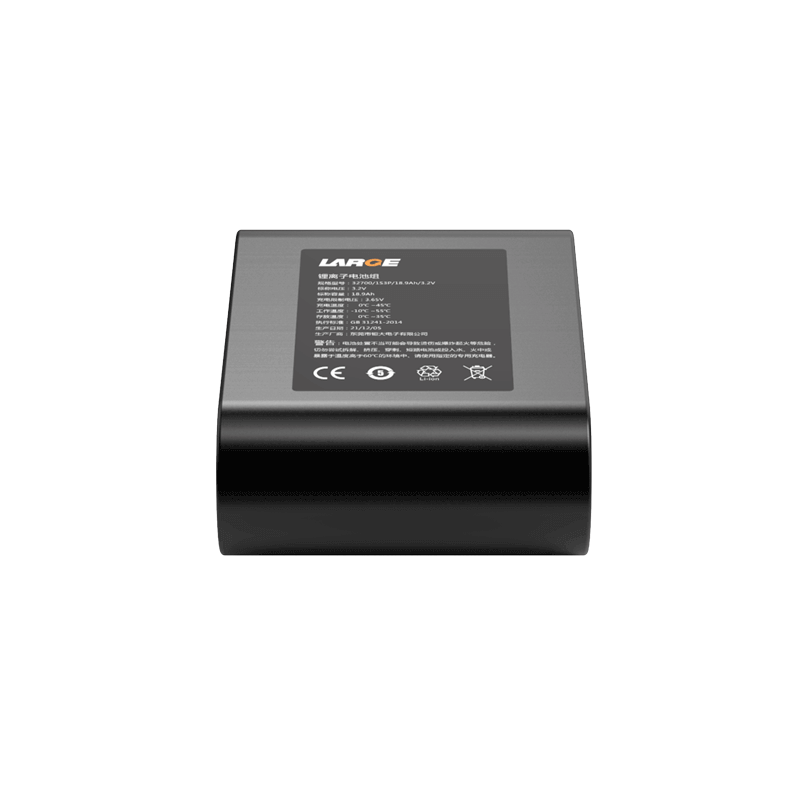

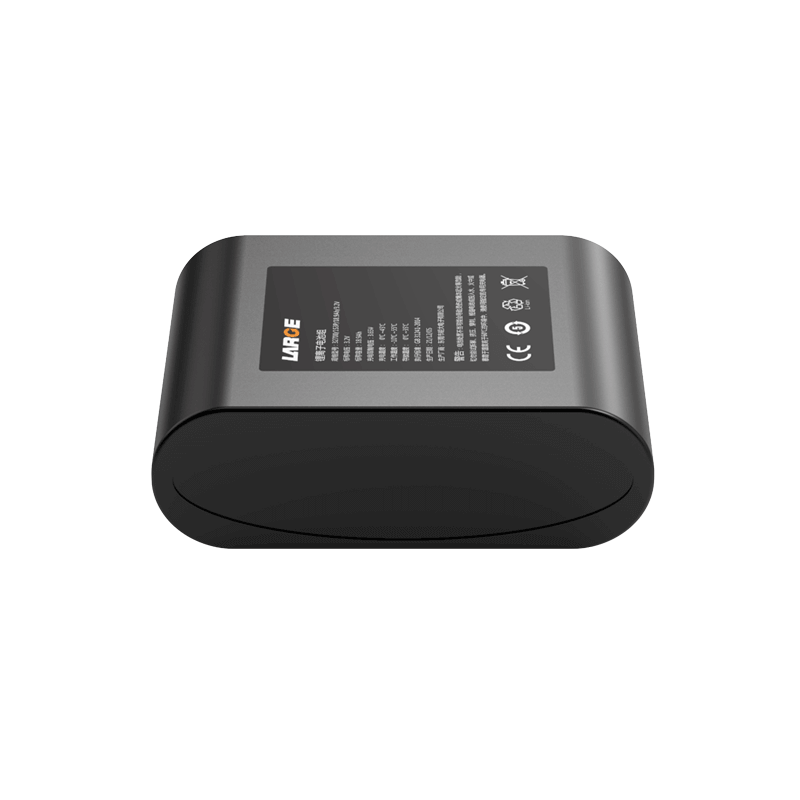

Custom Lithium ion Battery Pack
Product number: 08DQ0048-01
Cell model: 32700/6300mah /3.2V
Specification: 32700/1S3P/18.9Ah/3.2V
Product size: 98.5mm*72mm*33mm
Nominal voltage: 3.2V
Nominal capacity: 18.9Ah
Charging voltage: 3.65V
Charging current: 4A
Discharge current: 5A
Discharge cut-off voltage: 2.0V
Product internal resistance: ≤180mΩ
Battery weight: 480 GB
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55 ℃
Storage temperature: 0 to +35 ° C (less than 1 month) 0 to 30 ° C (less than 3 months) 0~+25℃ (less than 6 months)
Battery case: Bare battery + protection board insulation
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Building alarm
Product Features
1. bare battery and a insulation protective board are simple, reliable and easy to install.
2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
