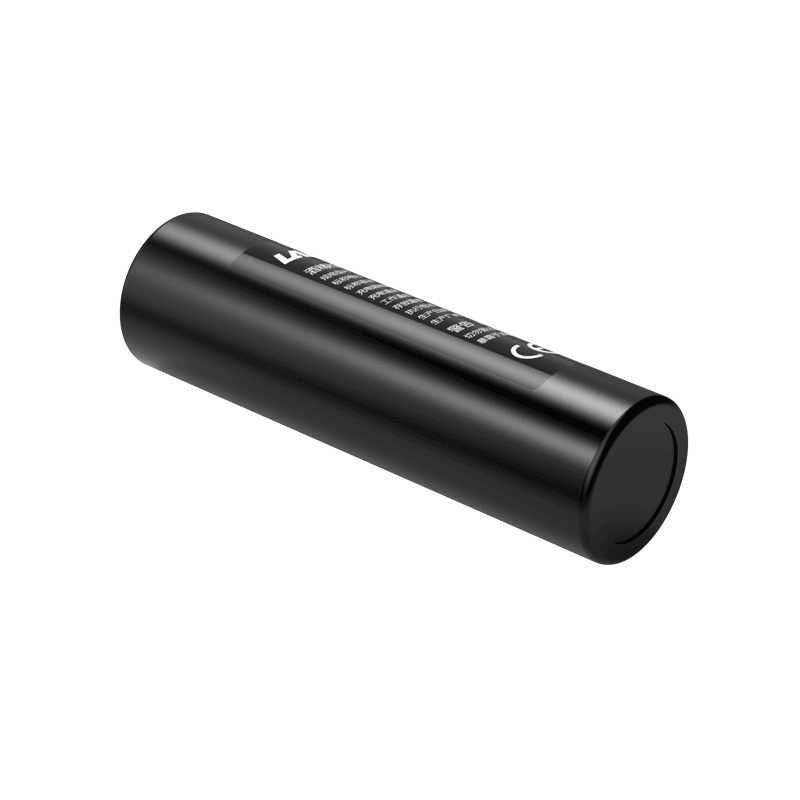

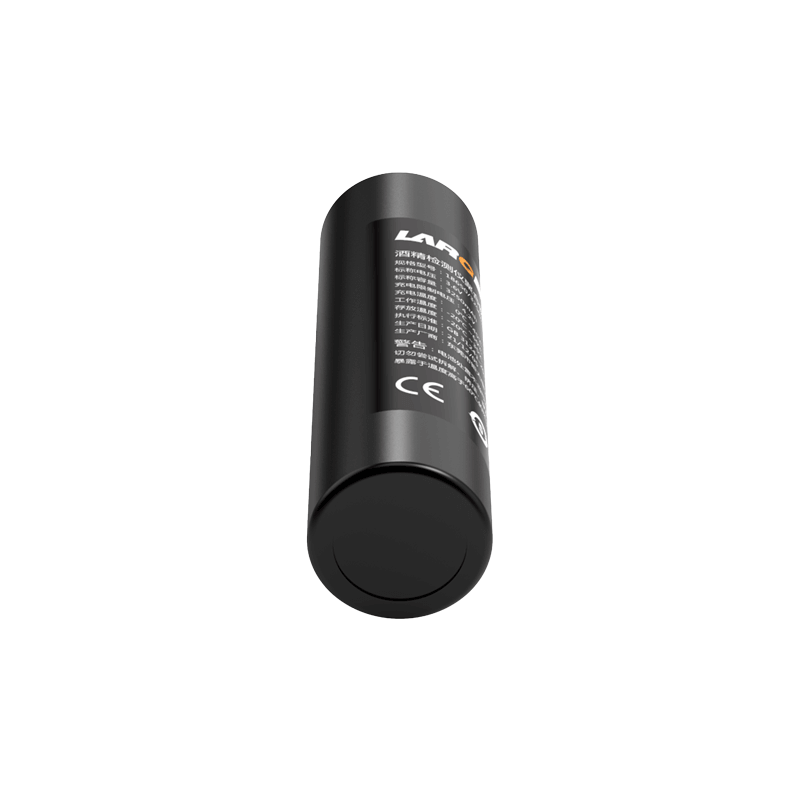

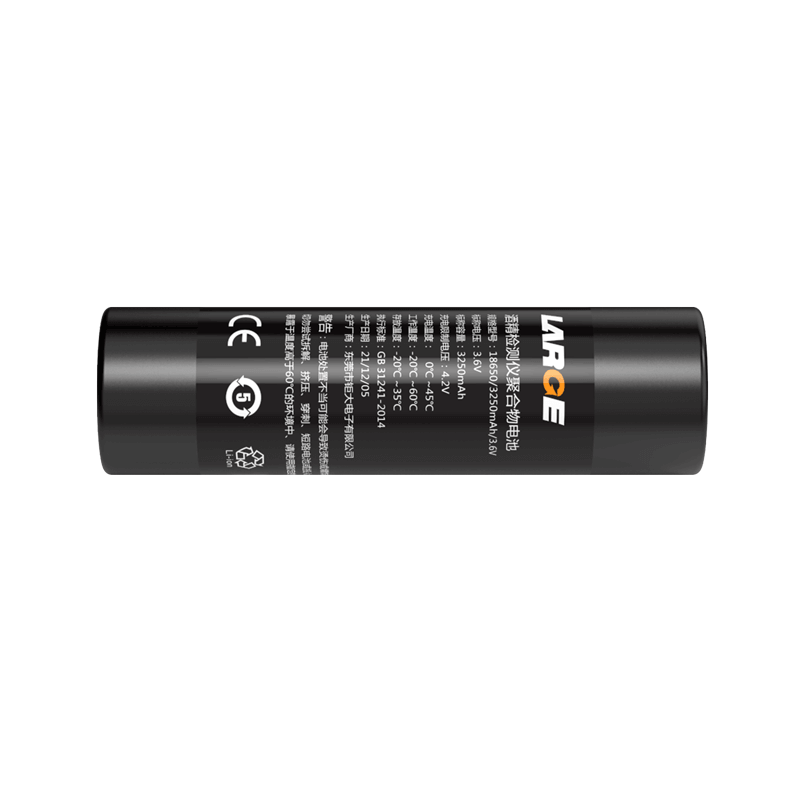

Custom Lithium ion Battery Pack
Product number: 08AQ0125-02
Cell model: 18650/3250mah /3.6V
Specification: 18650/1S1P/3250mAh/3.6V
Nominal voltage: 3.6V
Nominal capacity: 3250mAh
Charging voltage: 4.2V
Charging current: ≤1.6A
Discharge current: 1.5A
Instantaneous discharge current: 3.2A
Discharge cut-off voltage: 2.5V
Product internal resistance: ≤200mΩ
Battery weight: 0.05kg
Product size: 70*19.5*19.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: soft case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Portable devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
