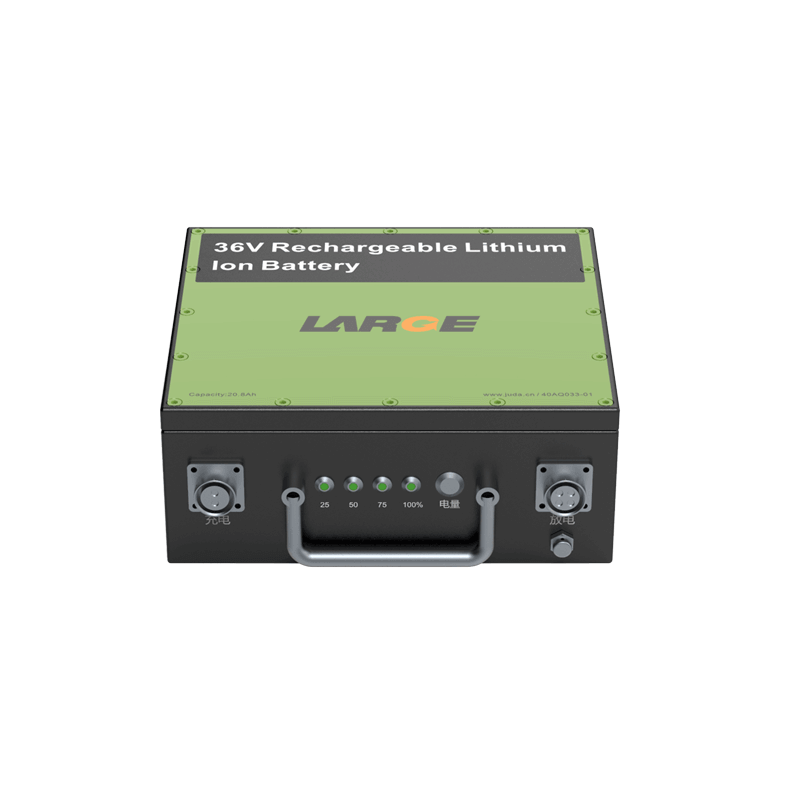

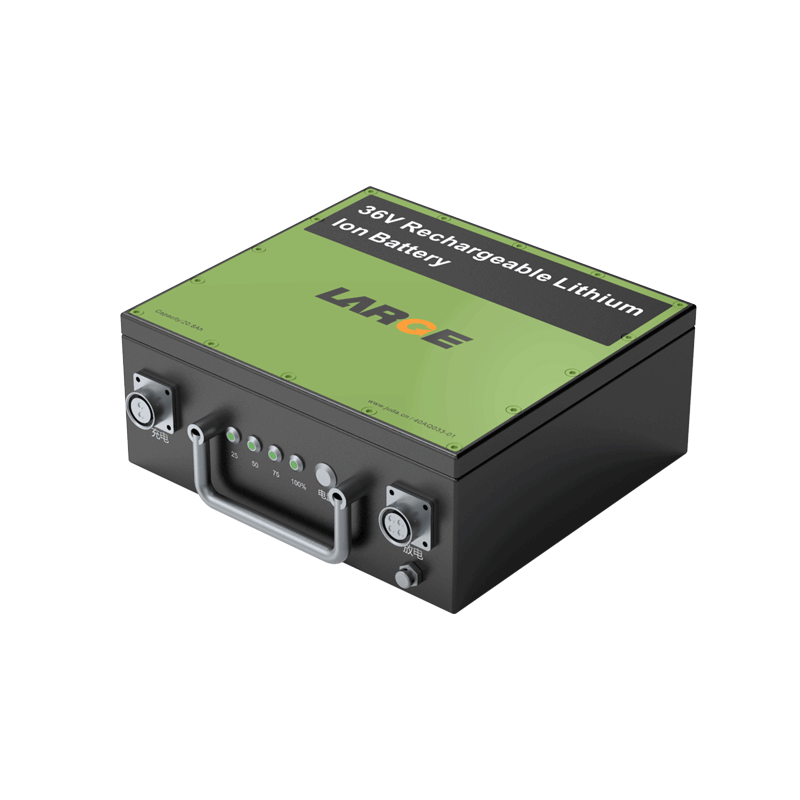

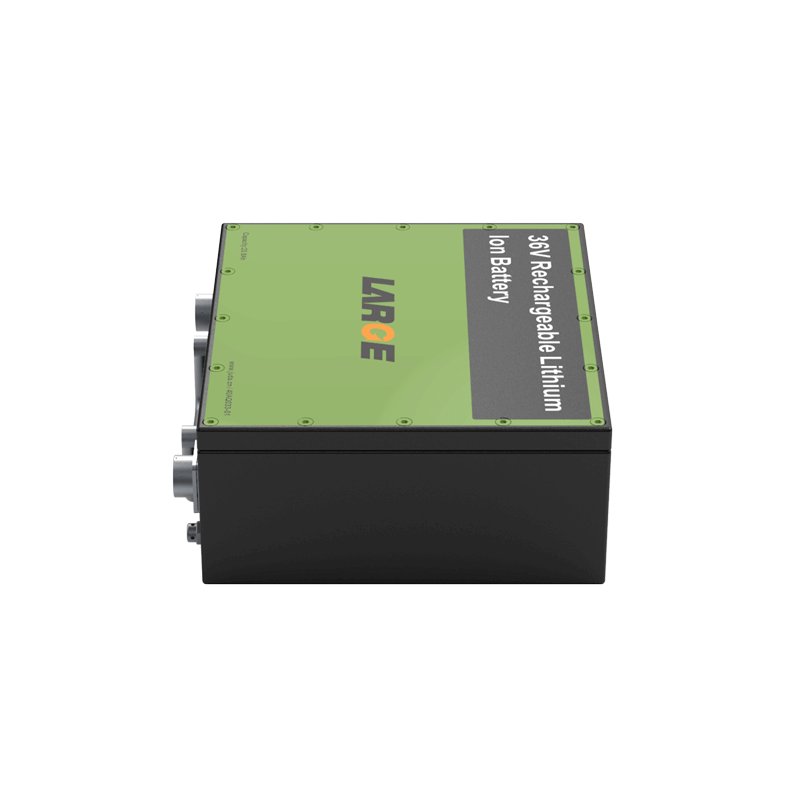

18650 36.0V 20.8Ah Lithium-ion Battery for Special Device

Customization | Free Battery Solution

Product Detail

Product number: 40AQ033-01

Cell model: 18650-2600MAH-3.6V

Specification: 36.0V-20.8Ah

Nominal voltage: 36.0V

Nominal capacity: 20.8Ah

Charging voltage: 42.0V

Charging current: ≤10.0A

Discharge current: 20.0A

Instantaneous discharge current: 40.0A

Discharge cut-off voltage: 25.0V

Product internal resistance: ≤200mΩ

Battery weight: 7.0kg

Product size: 210*235*95mm

Charging temperature: 0 ~ +45℃

Discharge temperature: -30 ~ +60 ℃

Storage temperature: -20 ℃ to +20℃

Battery case: Sheet metal cover

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.

Application: special starter, portable equipment, security field
