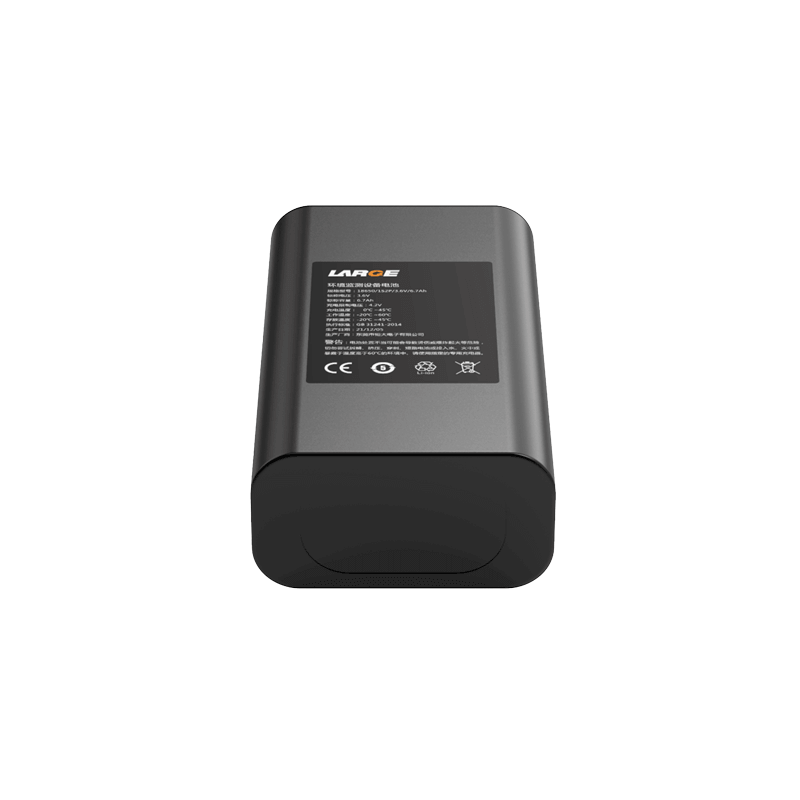

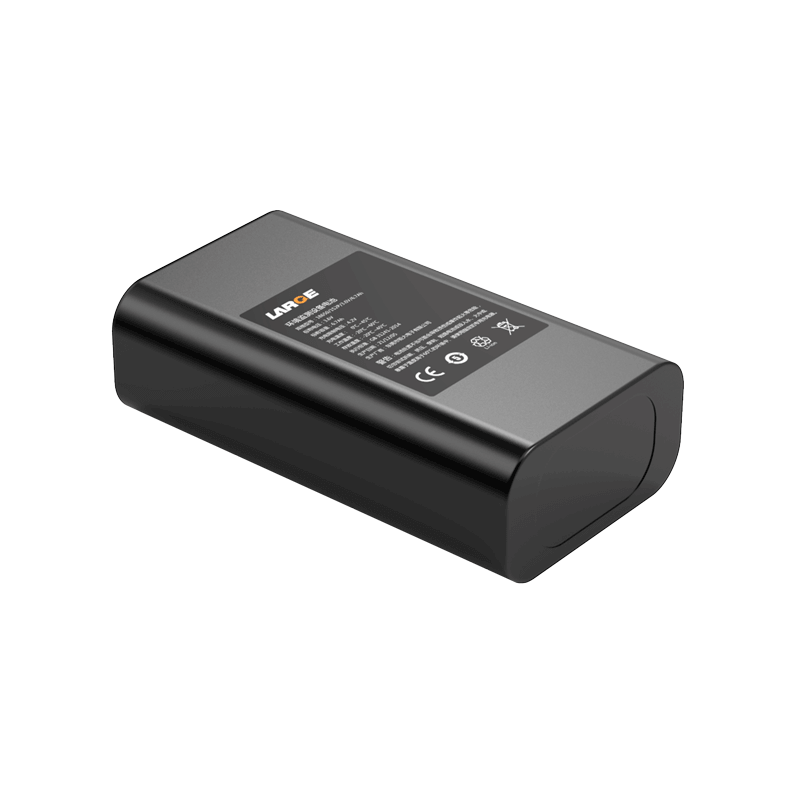

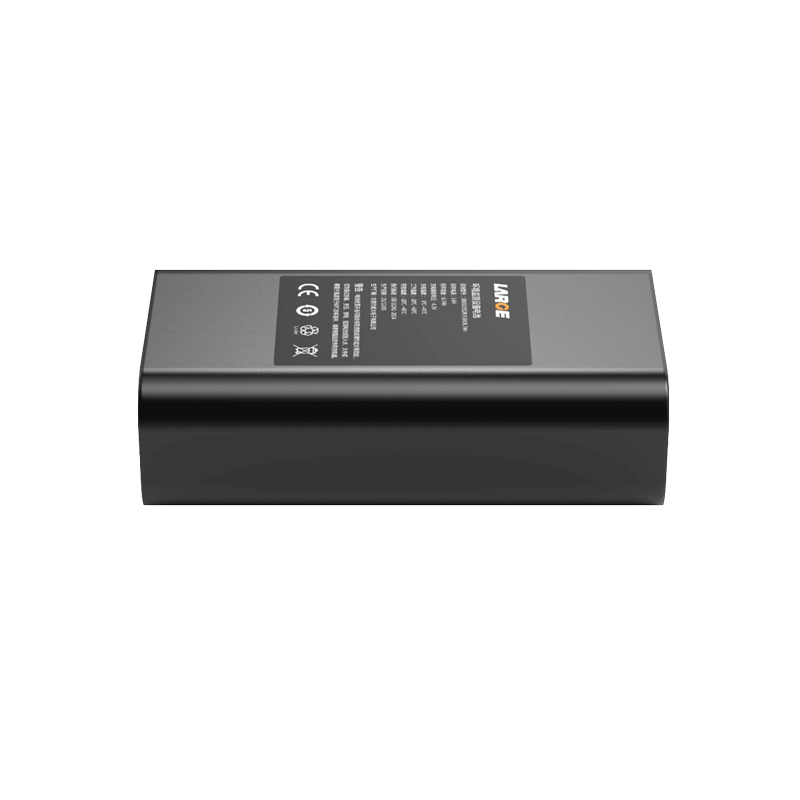

18650 3.6V 6.7AH Sanyo Battery for Alcometer

Customization | Free Battery Solution

Product Detail

Project number: 33DZ10-01A

Cell model: 18650 3.6V/3350mAh

Battery specifications: 1S2P/3.6V/6.7Ah

Nominal voltage: 3.6V

Nominal capacity: 6.7Ah

Charging voltage: 4.2V

Charging current: ≤2A

Discharge current: ≤ 1.6A

Instantaneous discharge current: less than 3A

Discharge cut-off voltage: 3.0V

Internal resistance of finished product: ≤350mΩ

Battery weight: 100G

Product size: 21.5*38*68mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 45 ° C

Battery case: PVC

Communication: no

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Environmental monitoring equipment

Product Features

1.Exia T4;

2.Low energy consumption;

3.The battery pack is safe and has long cycle life.

4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
