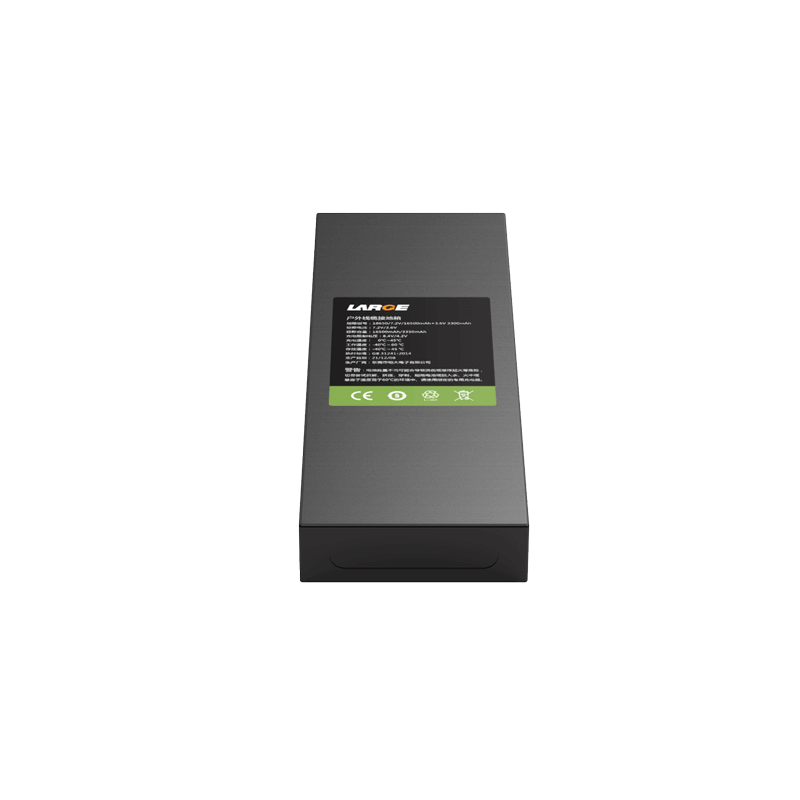

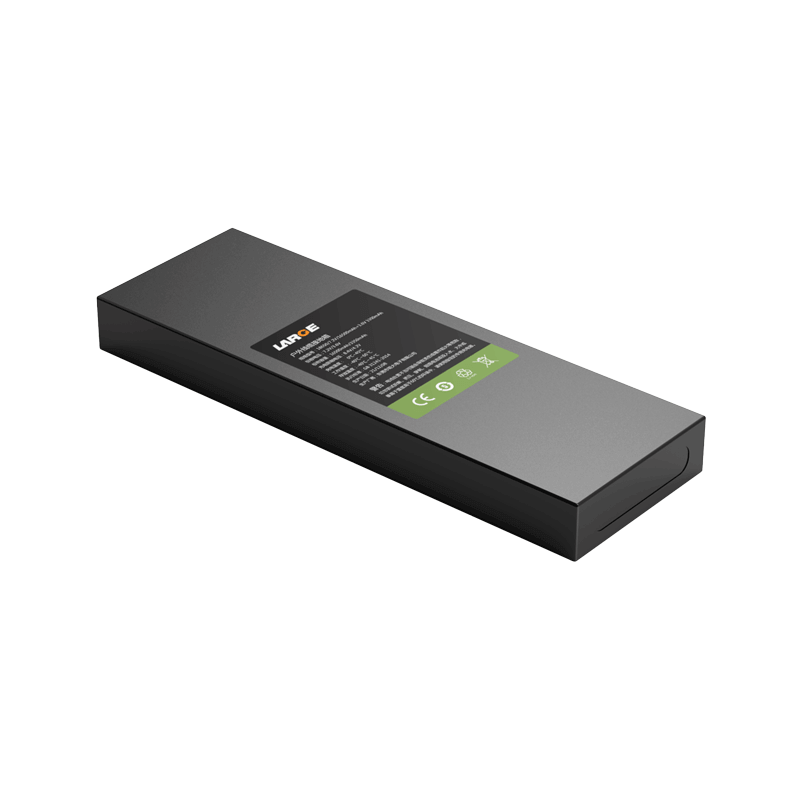

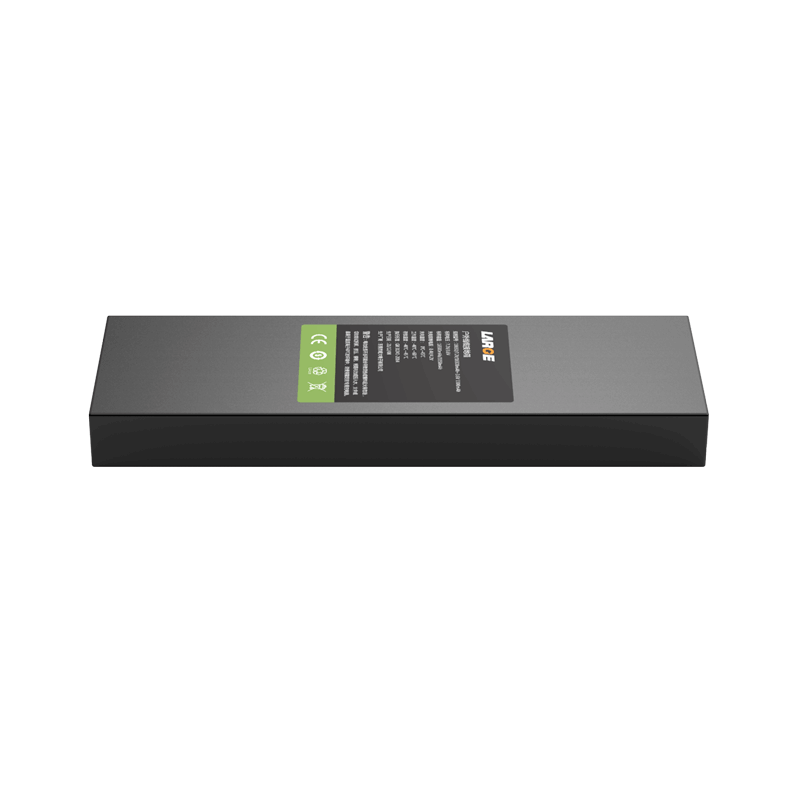

Custom Lithium ion Battery Pack
Project number:42DZ002-03
Cell model: 18650 3.6V/3350mAh (low temperature)
Specification: 18650/2S5P/7.2V/16500mAh+18650/1S1P 3.6V 3300mAH
Nominal voltage: 7.2V/3.6V
Nominal capacity: 16500mAh/3350mAh
Charging voltage: 8.4V/4.2V
Charging current: ≤3A
Discharge current: ≤3A
Instantaneous discharge current: 3-6A
Discharge cut-off voltage: 5.0V/2.5V
Finished product internal resistance: ≤150m Ω
Battery weight: 650g
Product size: 23*75*225mm (Max)
Charging temperature 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ° C to 45 ° C
Battery case: support +PVC
Communication: no
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: outdoor cable grounding box
Product Features
1.Low energy consumption;
2.The battery pack is safe and has long cycle life.
3.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
4.Two channels output
