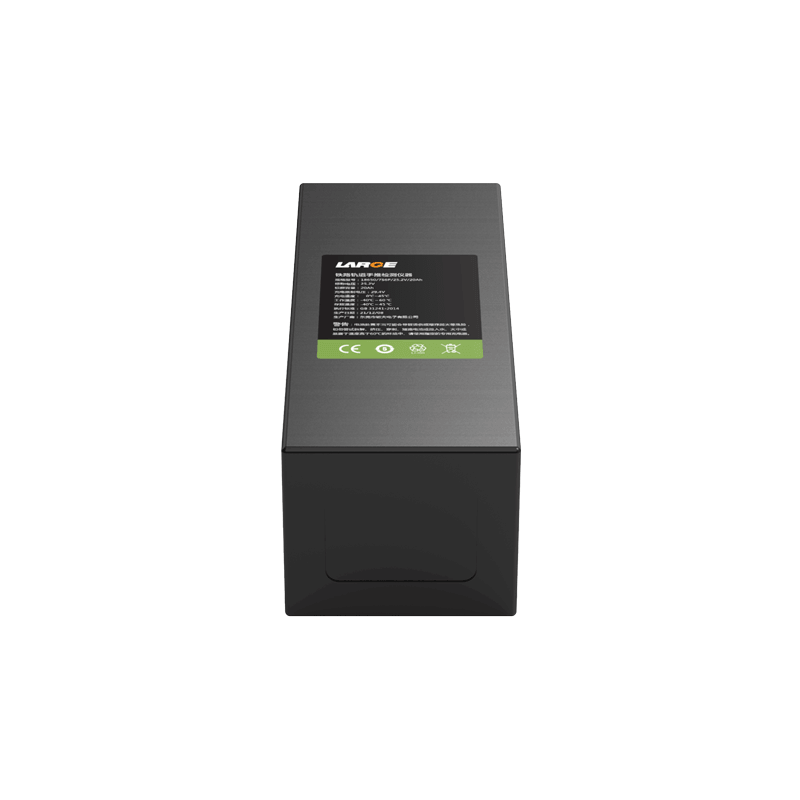

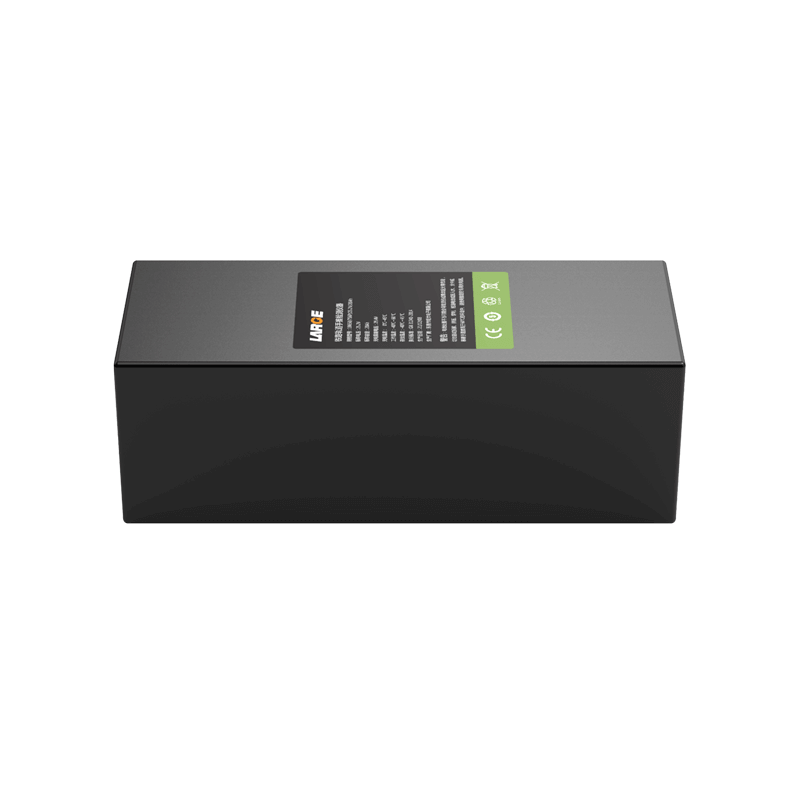

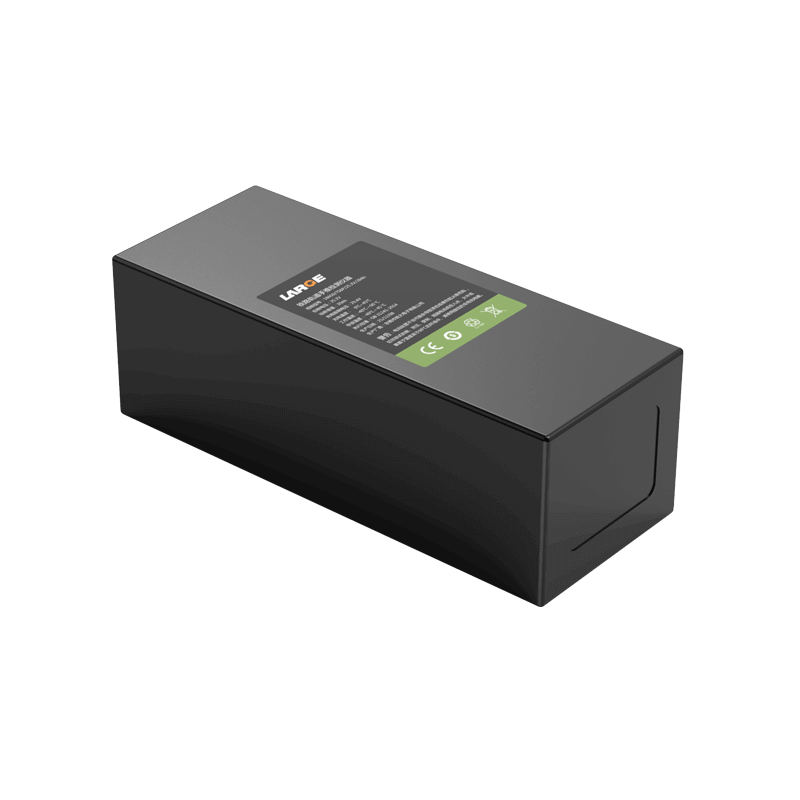

Custom Lithium ion Battery Pack
Project number: 33DZ038-01
Cell model: 18650 3.6V/ 3.35AH
Specification: 7S6P/3.6V/20Ah
Nominal voltage: 25.2V
Nominal capacity: 20Ah
Charging voltage: 29.4V
Charging current: ≤5A
Discharge current: 5A
Instantaneous discharge current: 15-25A
Discharge cut-off voltage: 17.5V
Product internal resistance: ≤200mΩ
Battery weight: 2100g
Product size: 71*88.5*215mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ° C to 45 ° C
Temperature protection: 75℃±5℃
Battery case: PVC
Communication: no
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.
Application: Railway hand push testing instrument
Product Features
1.Low temperature ternary battery
2.Temperature protection
3.The battery pack is safe and has long cycle life.
4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
