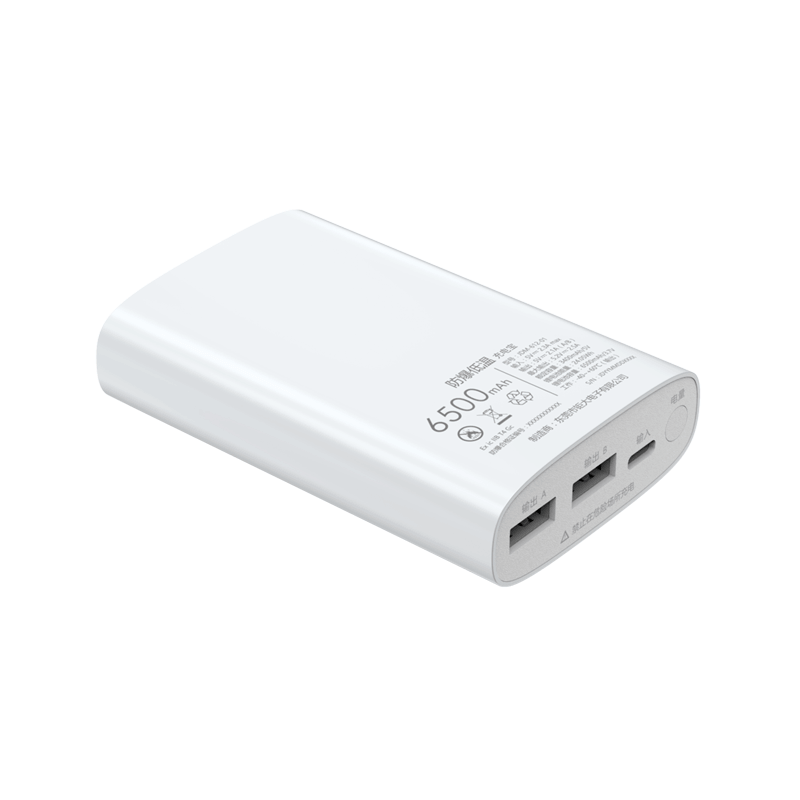

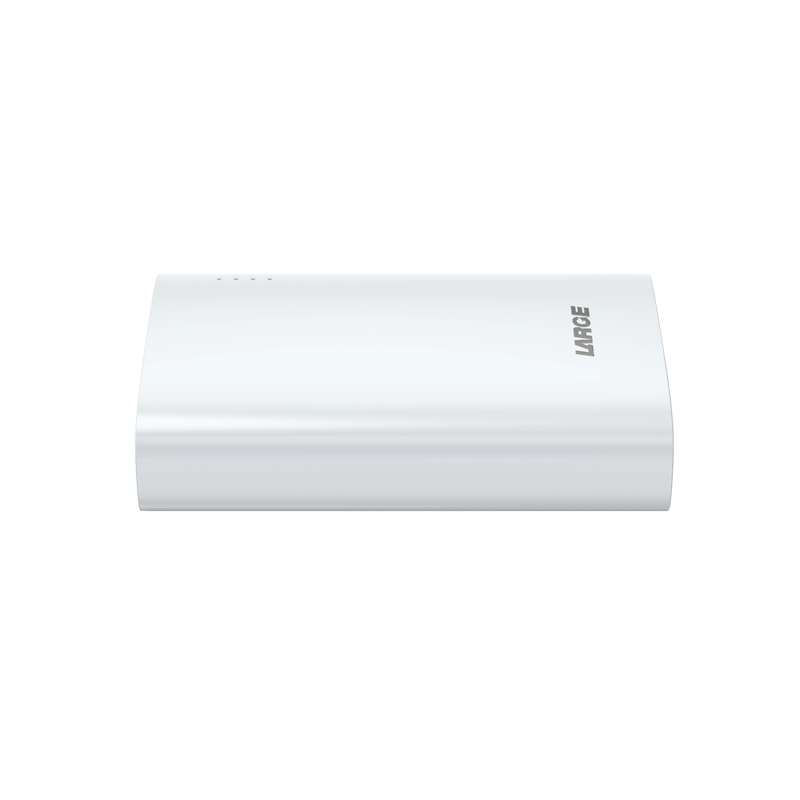

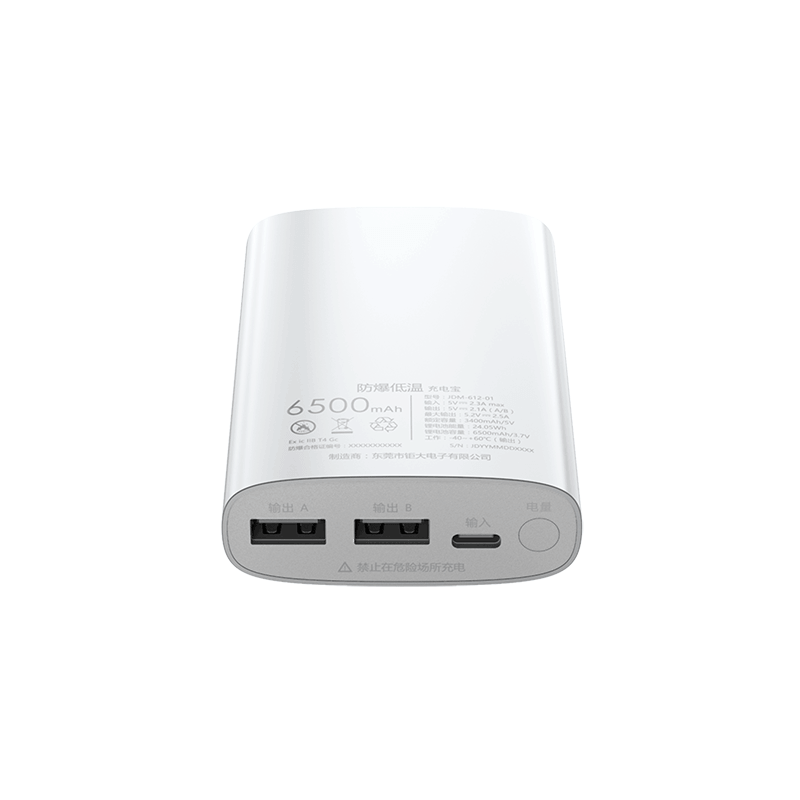

Custom Lithium ion Battery Pack
Project number: 36AQ612-01
Cell model: LA18650/2200mah /3.7V- low temperature
Specification: 18650/6500mah /3.7V
Nominal voltage: 3.7V
Nominal capacity: 6500mAh
Charging current: ≤ 2.3A
Discharge current: 2.1A
Instantaneous discharge current: 2.3A
Discharge cut-off voltage: 3.0V
Finished product internal resistance: /
Battery weight: 180G
Product size: 23*61.5*94mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: plastic case
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on
Application: power supply for heating garment in explosion proof area
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
