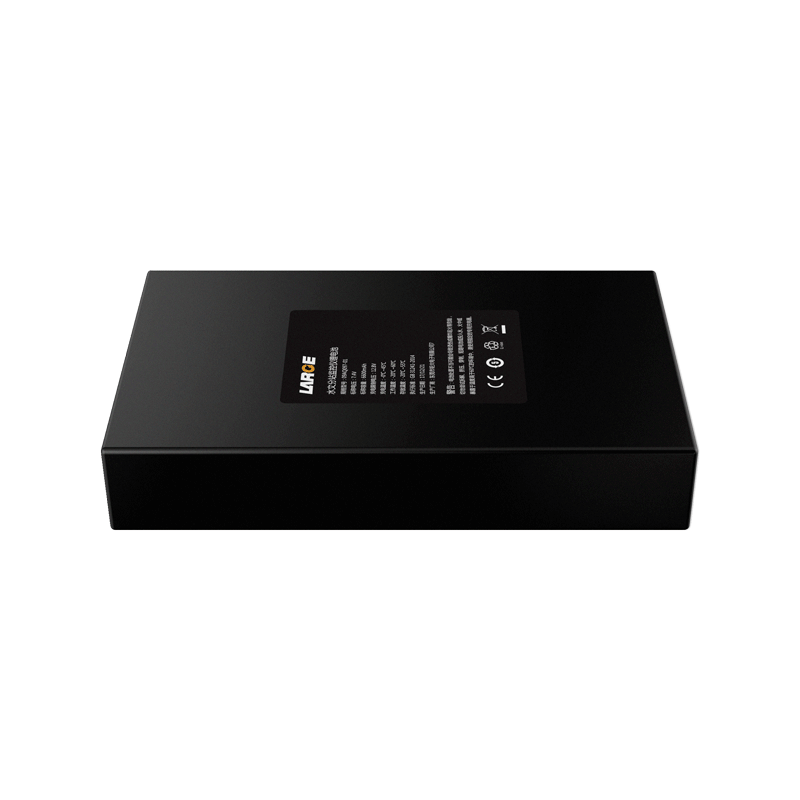

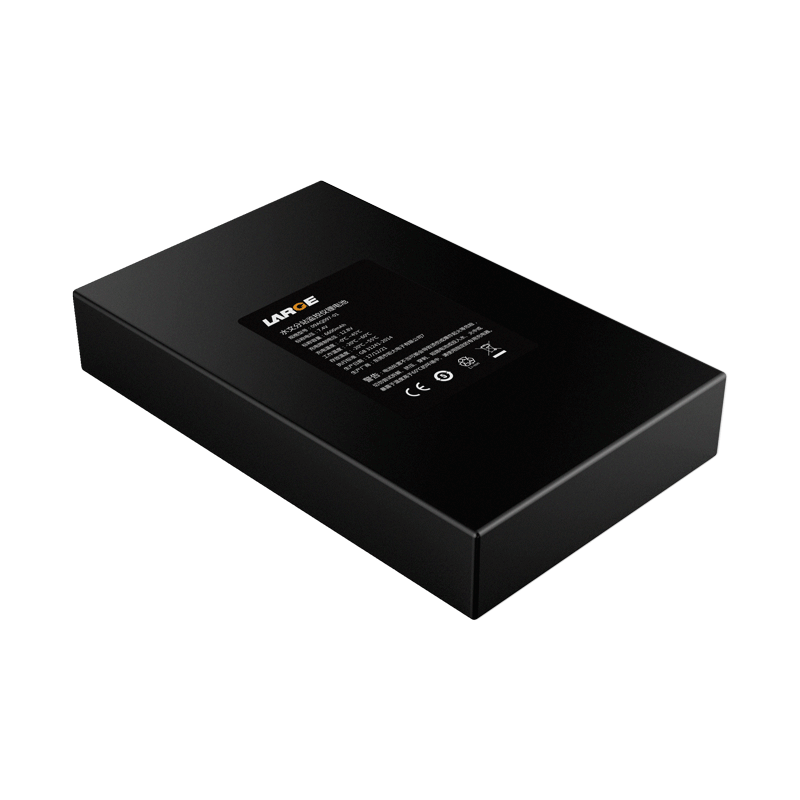

Custom Lithium ion Battery Pack
Project number: 09AQ097-01
Combination mode: ICR18650-2S3P
Nominal voltage: 7.4 V
Working voltage: 4.8~ 8.4V
Nominal capacity: 6600mAh
Standard discharge current: 0.2C
Maximum discharge duration current: 1C
Operating temperature: Charging: 0~45℃
Discharge: - 20 ~ 60 ℃
Product dimension: MAX 19*68*110mm
Finished product internal resistance: 250 mΩ or less
Lead model: National label UL1007/20# line length: 156mm
Protection parameter: overcharge protection voltage/each series is 4.3± 0.025V
Overdischarge protection voltage is 2.4± 0.05V
Overcurrent value: 4~10A
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
