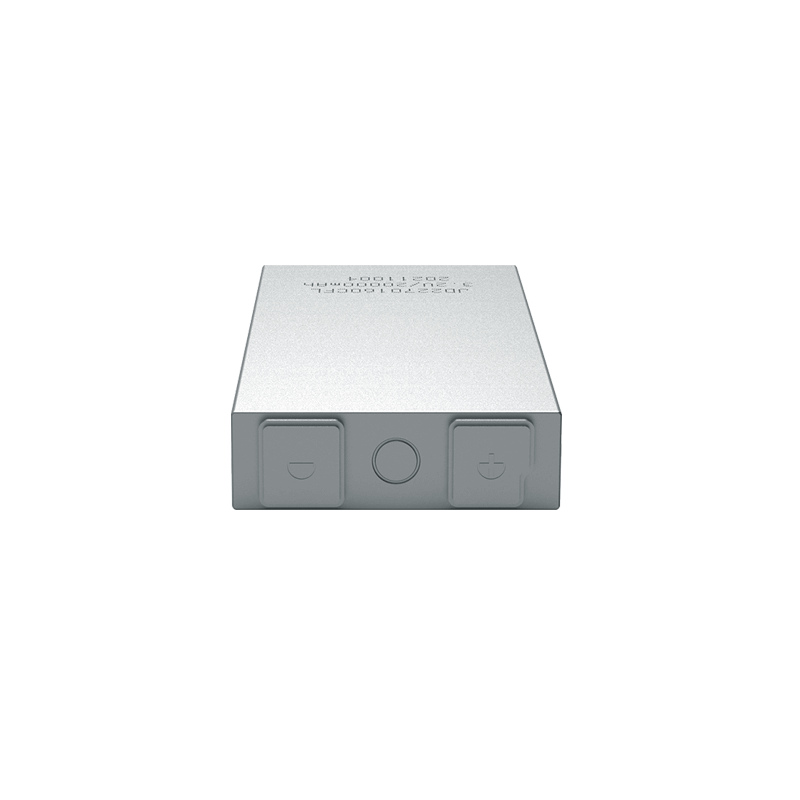

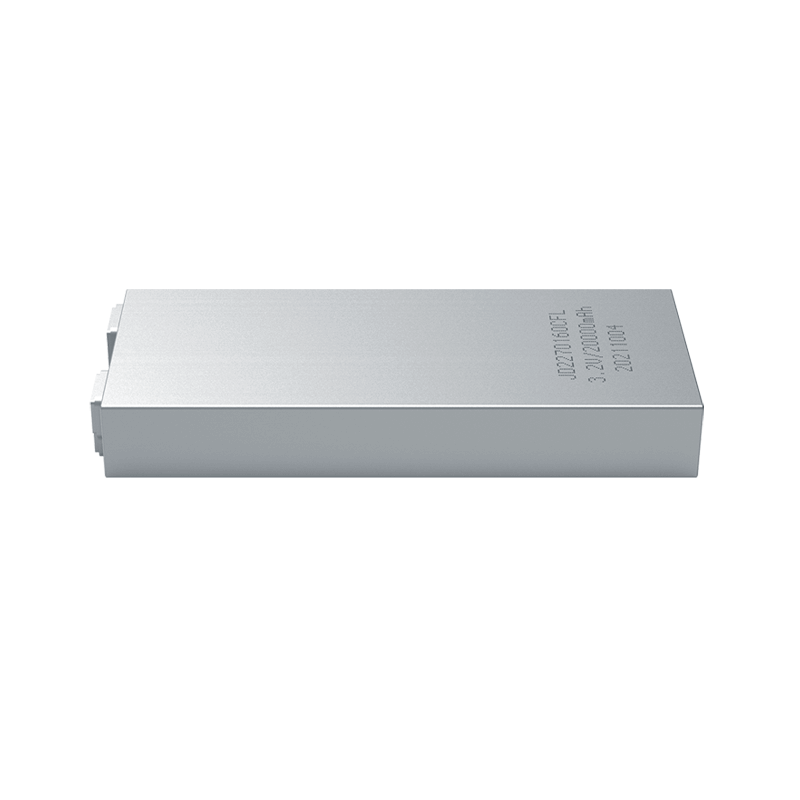

3.2V 20Ah Low Temperature Square LiFePO4 Battery Cell

Customization | Free Battery Solution

Product Detail

Cell model:JD2270160CFL

Nominal voltage:3.2V

Nominal capacity:20000mAh

Charging temperature:-20~45℃

Discharging temperature:-40~+55℃

Maximum continuous charging current: 20A

Maximum continuous discharging current: 60A

Cell dimension:T22*W70*L160mm

Cell weight:509±5g

Specific energy:126Wh/kg

Safety:pass acupuncture test

-40℃ maximum discharge rate:3C

-40℃ discharge capacity retention rate:3C discharge capacity≥70%
