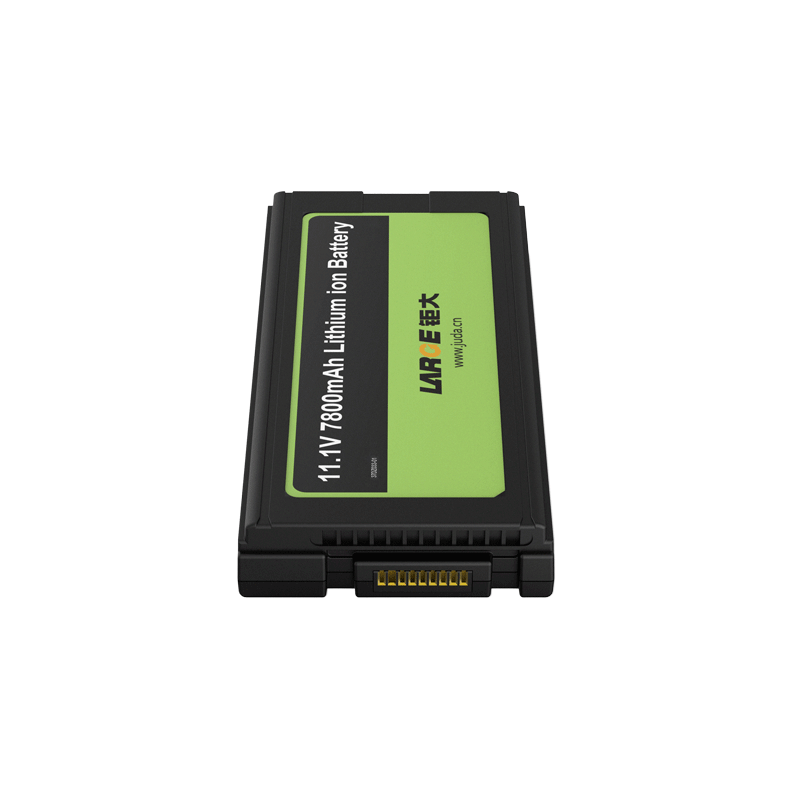

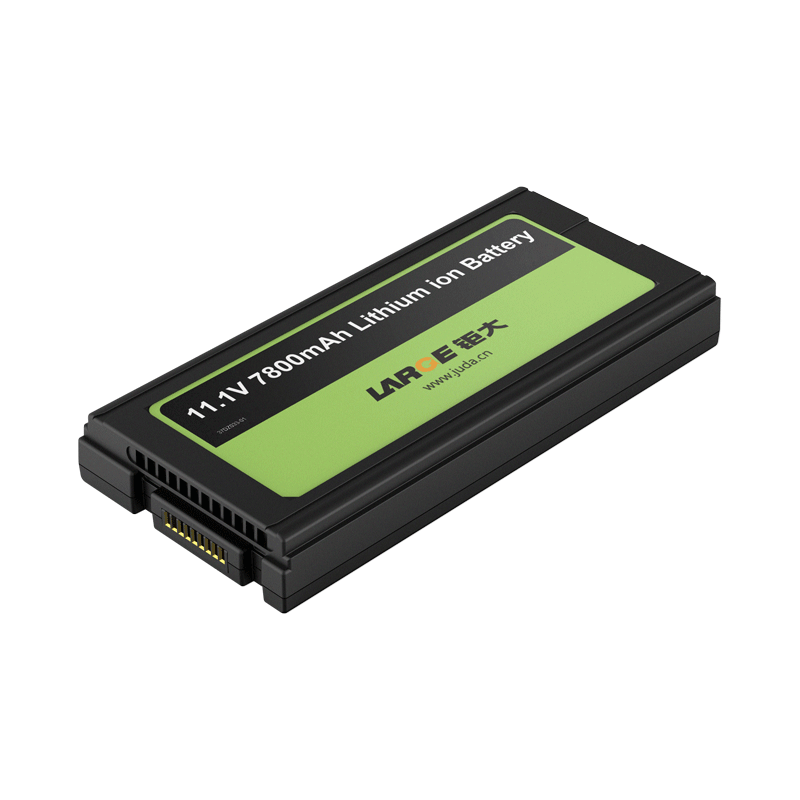

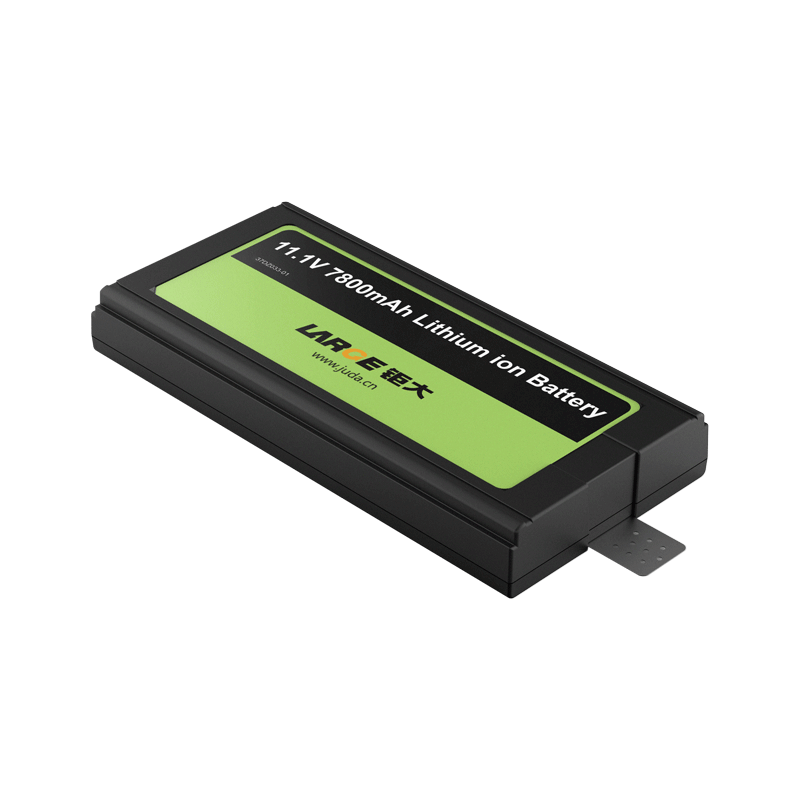

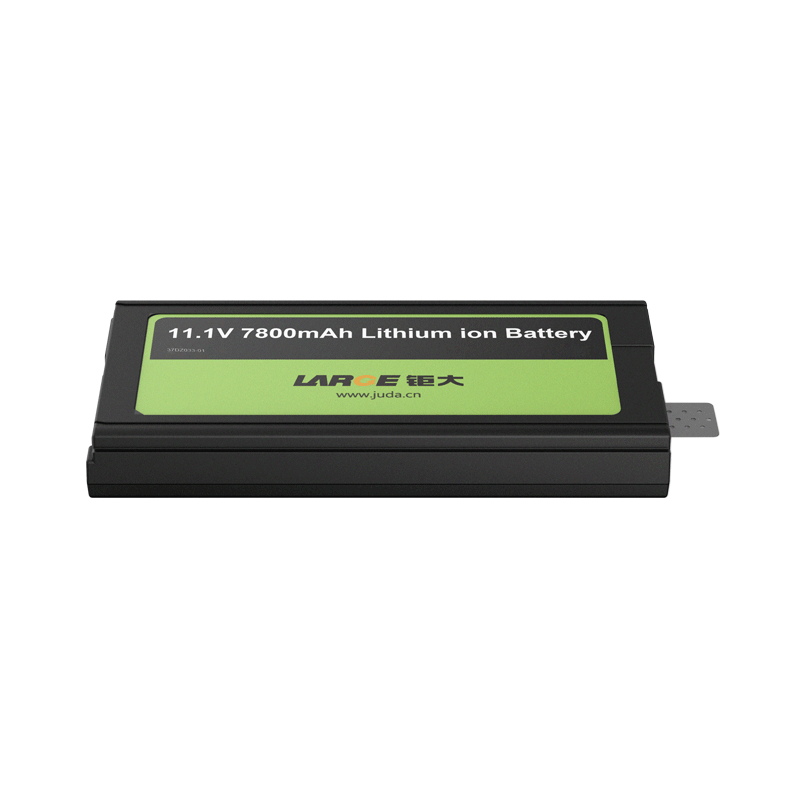

Low Temperature High Energy Density Rugged Laptop Polymer Battery 11.1V 7800mAh

Customization | Free Battery Solution

Product Detail

Product number: 37DZ007-01

Cell model:5869147/3.7V/7800mAh

Battery specification: HPB-202-32/11.1V/7800mAh

Nominal voltage:11.1V

Nominal capacity:7.8Ah

Charging voltage: 12.6V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 4A

End-off voltage: 7.5V

Internal resistance: ≤200mΩ

Battery weight: 430 G

Product dimension: 164.5*78.3*22mm

Charging temperature:0~45℃

Discharging temperature: -40~±55 ℃(-40℃,0.5C discharge capacity≥80%)

Storage temperature: -20~35 ℃

Temperature protection: 70℃±5℃

Battery case: engineering plastic

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection, equilibrium, etc.

Application field: Rugged Laptop

Product features

1. Hardware output connector: adopts gold-plated shrapnel output mode to increase conductive reliability.

2. Cell: It has low temperature cell, which can be discharged in -40 degree.

3. Data communication management: adopt accurate IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery has good security, nice low temperature performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
