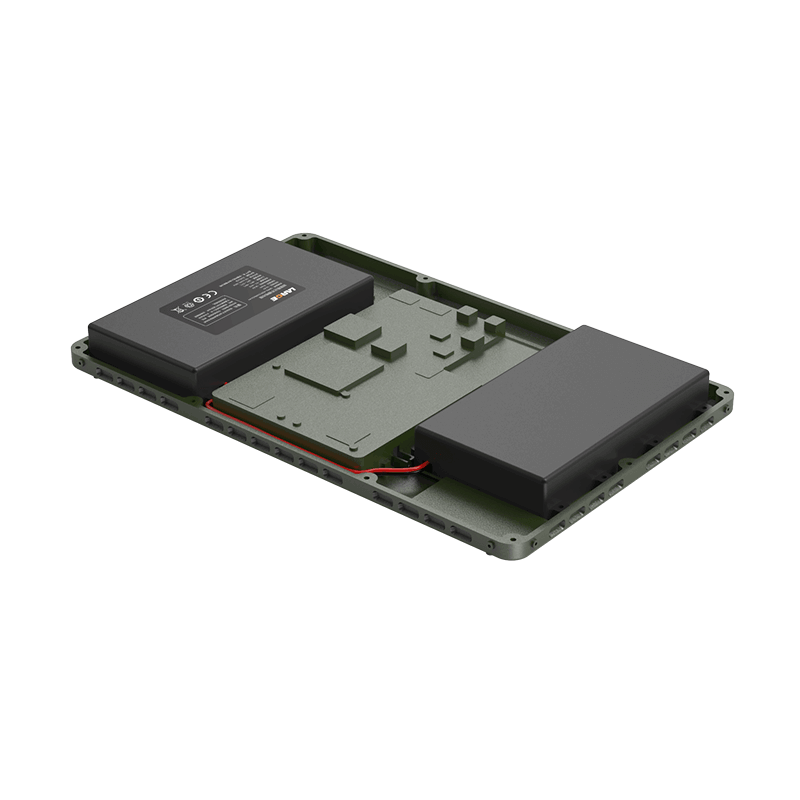

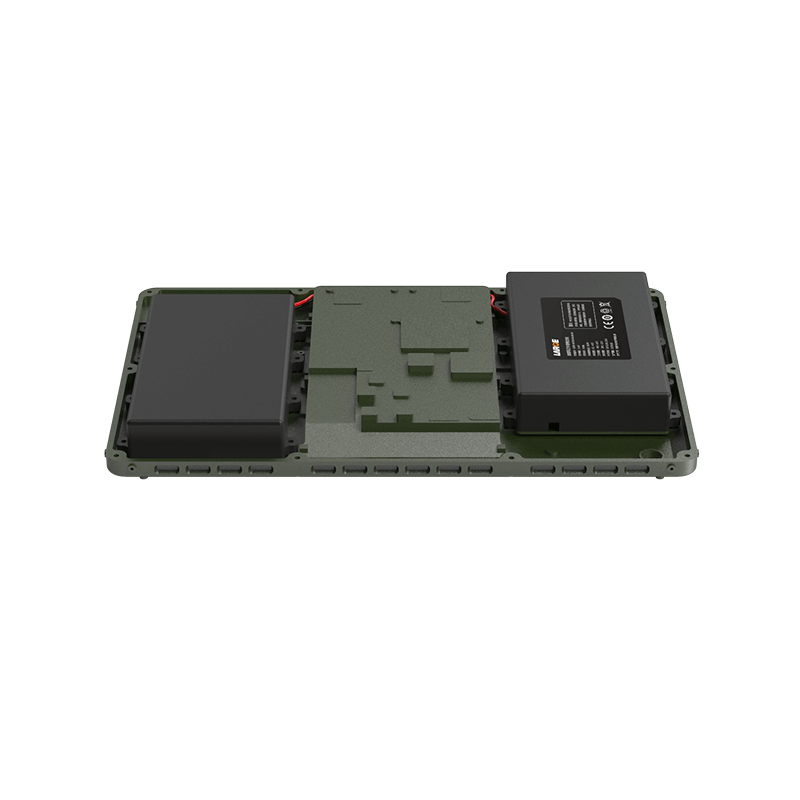

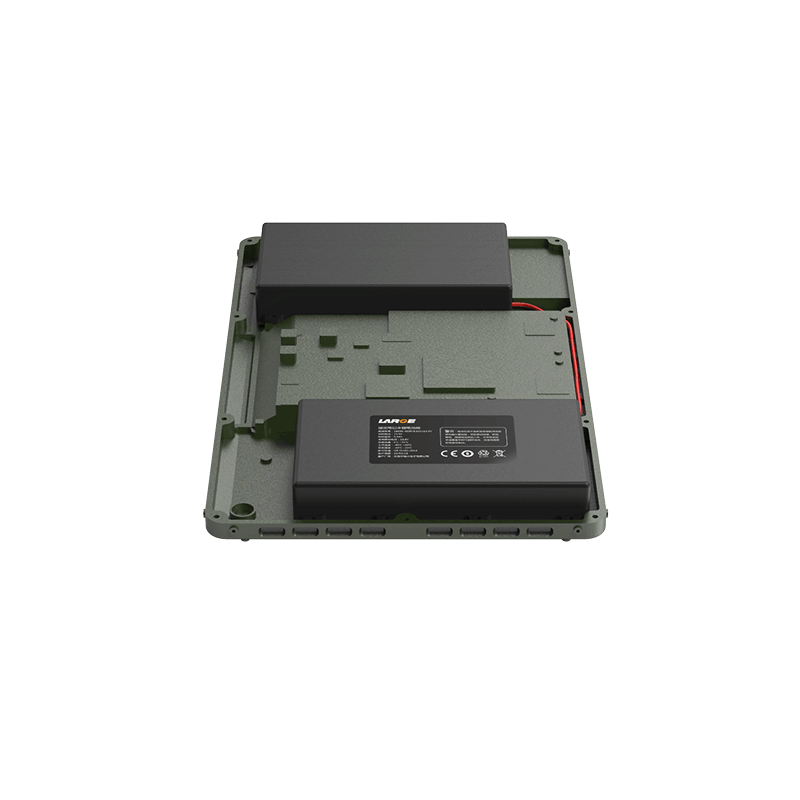

Custom Lithium ion Battery Pack
Project number: 35AQ834-05
Cell model: 18650/3200mah /3.6V- low temperature
Specification: 18650-4S3P/ 9.6AH /14.4V (Smart + Case)
Nominal voltage: 14.4V
Nominal capacity: 9.6Ah
Charging voltage: 16.8V
Charging current: ≤5.0A
Discharge current: 8.0A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 10.0V
Internal resistance: ≤250mΩ
Battery weight: 950 GB
Product size: 23*81.2*134mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20°C to 23°C
Battery case: /
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Rugged laptop
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
