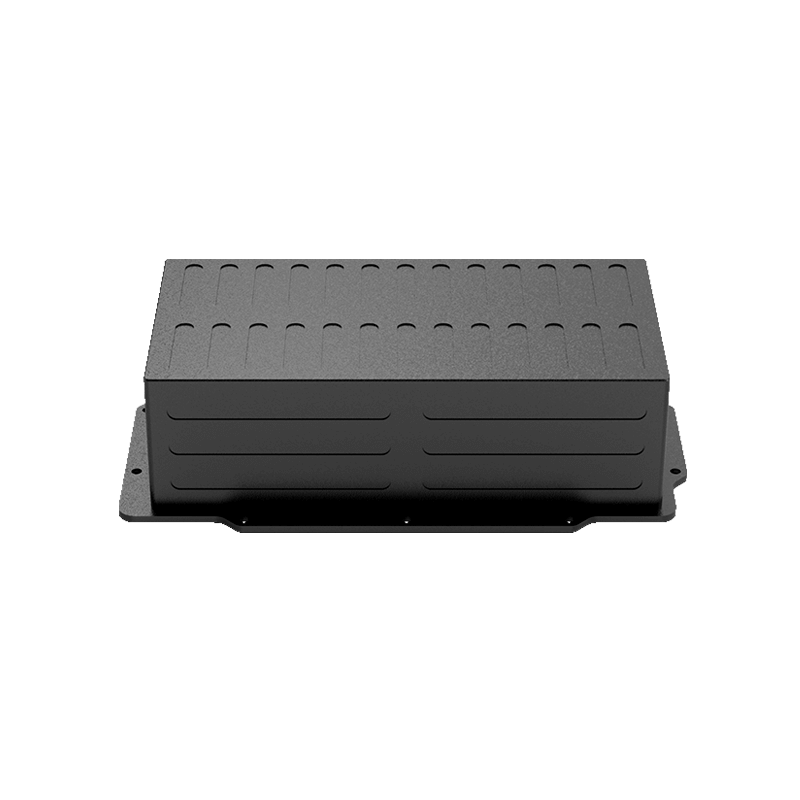

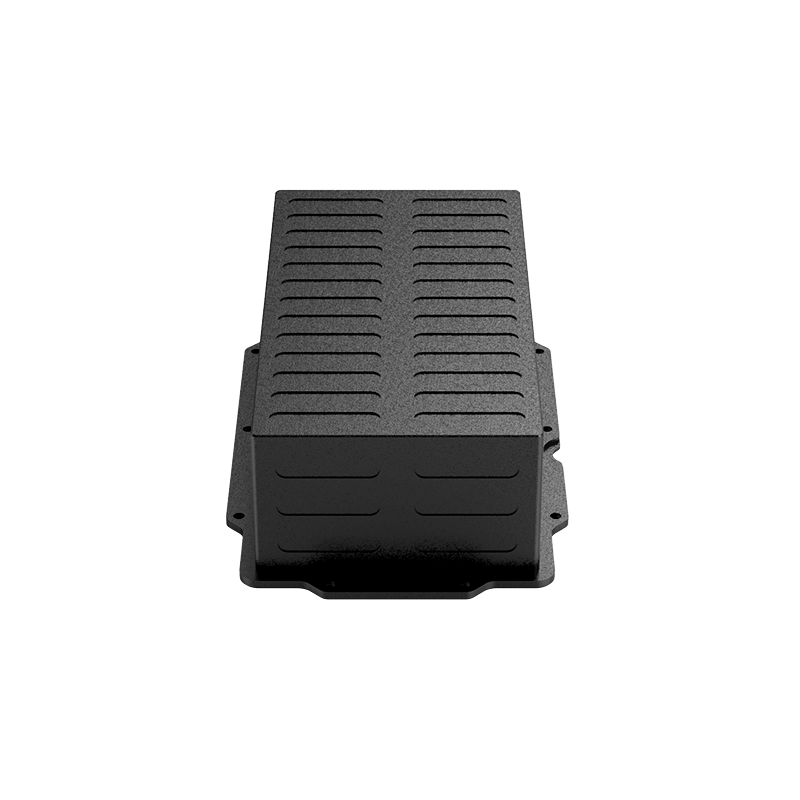

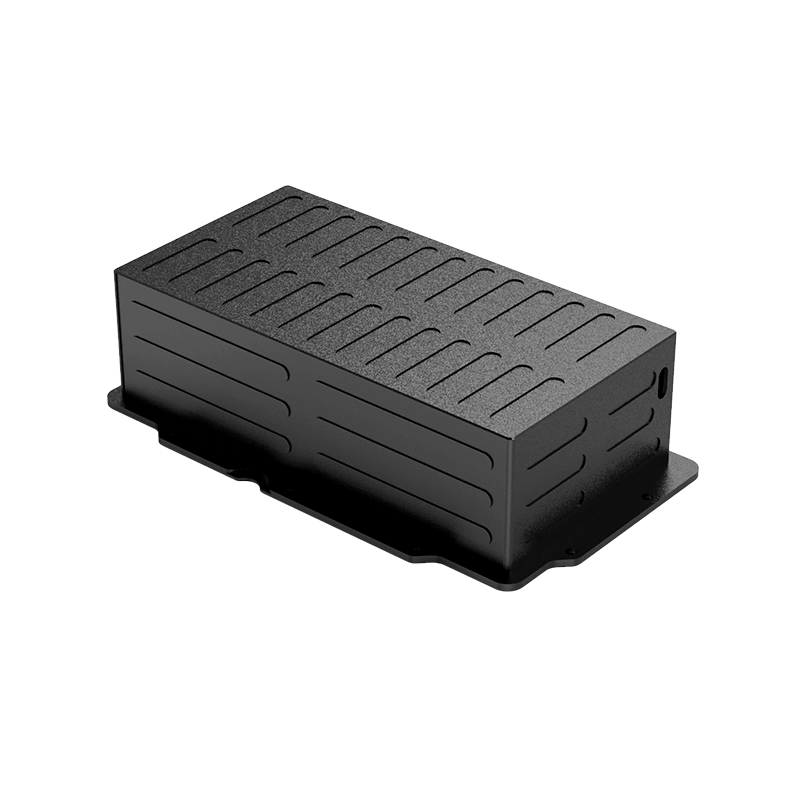

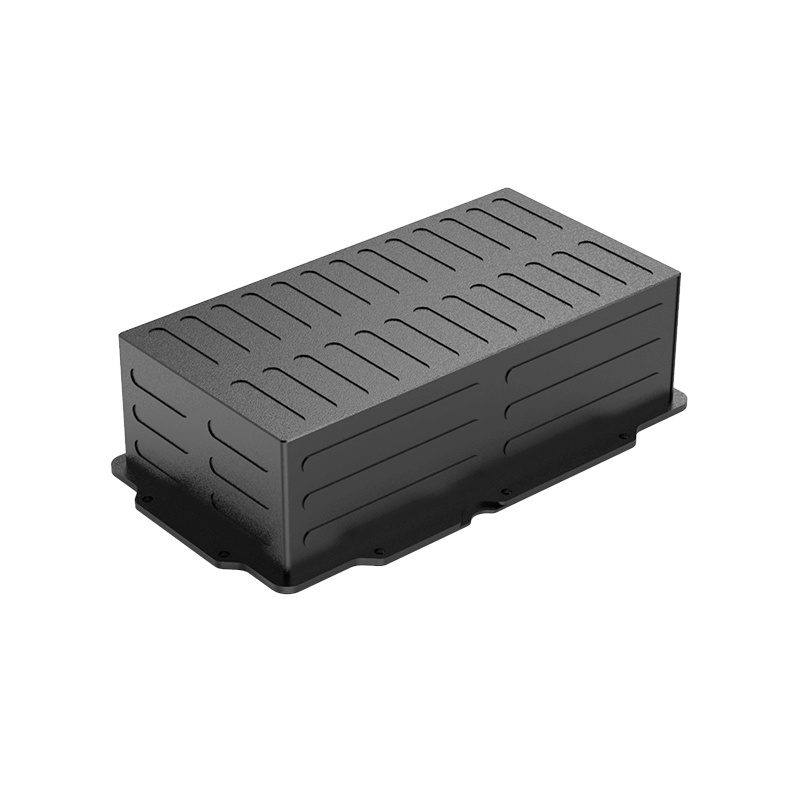

Custom Lithium ion Battery Pack
Product number: 08DQ0004-02
Cell model: 21700/4900mah /3.6V
Specification: 21700/7S2P/9.8Ah/25.2V
Nominal voltage: 25.2V
Nominal capacity: 9.8Ah
Charging voltage: 29.4V
Charging current: ≤4.9A
Discharge current: 4.9A
Instantaneous discharge current: 6.0A
Discharge cut-off voltage: 17.5V
Product internal resistance: ≤200mΩ
Battery weight: 1.4kg
Product size: 50.5*106*186mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: Metal case
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Rugged laptop
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
