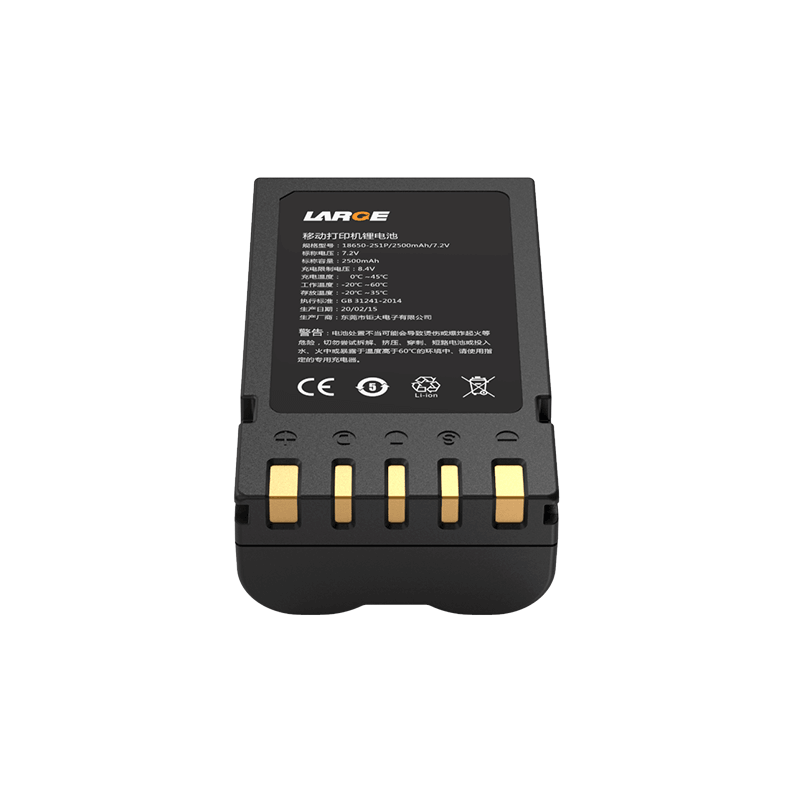

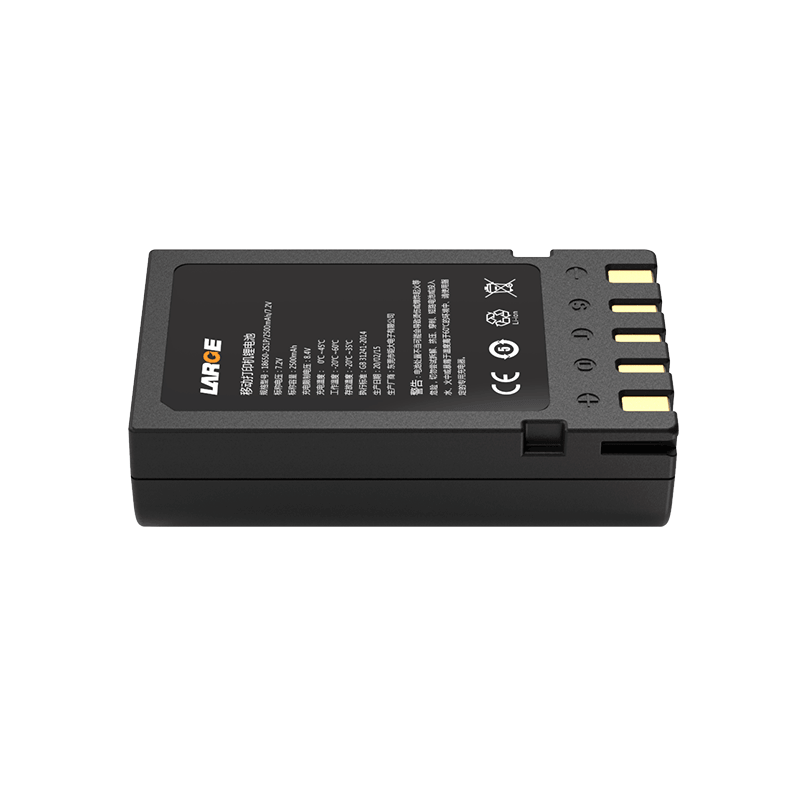

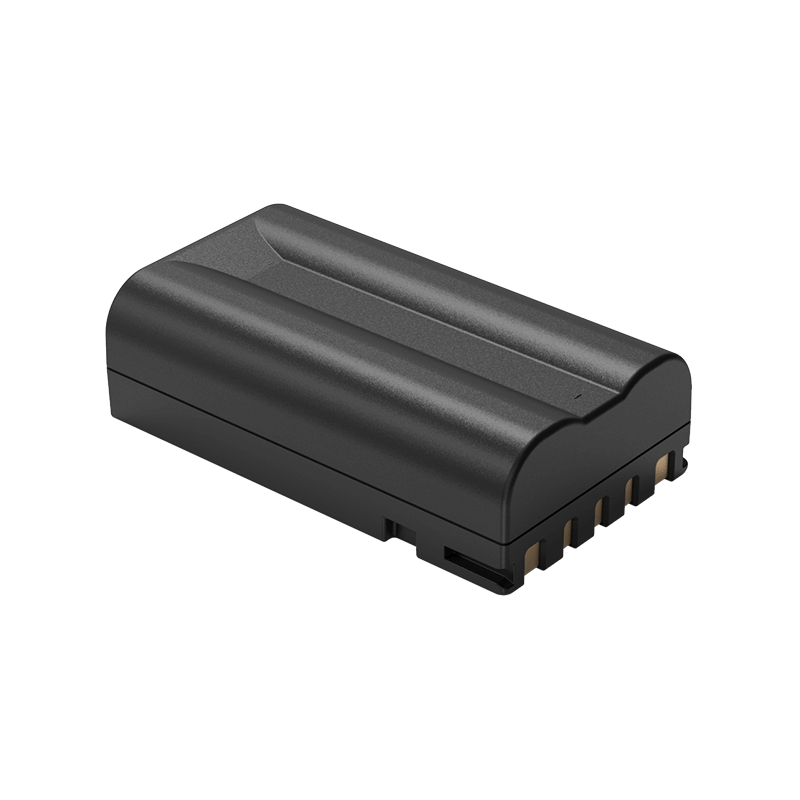

Custom Lithium ion Battery Pack
Product number: 03DQ0024-08T
Cell model: 18650/2500mah /3.6V
Specification: 18650-2S1P/2500mAh/7.2V
Nominal voltage: 7.2V
Nominal capacity: 2500mAh
Charging voltage: 8.4V
Charging current: ≤ 2.5A
Discharge current: 500MA
Instantaneous discharge current: 7A
Discharge cut-off voltage: 5.0V
Finished product internal resistance: ≤80mΩ
Battery weight: 105g
Product size: 19.1+0/-0.2mm*41±0.2mm*71.5±0.2mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: engineering plastic ABS+PC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: POS machine mobile printer
Product Features
1.ABS+PC shell increases battery reliability and firmness.
2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;
3.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
