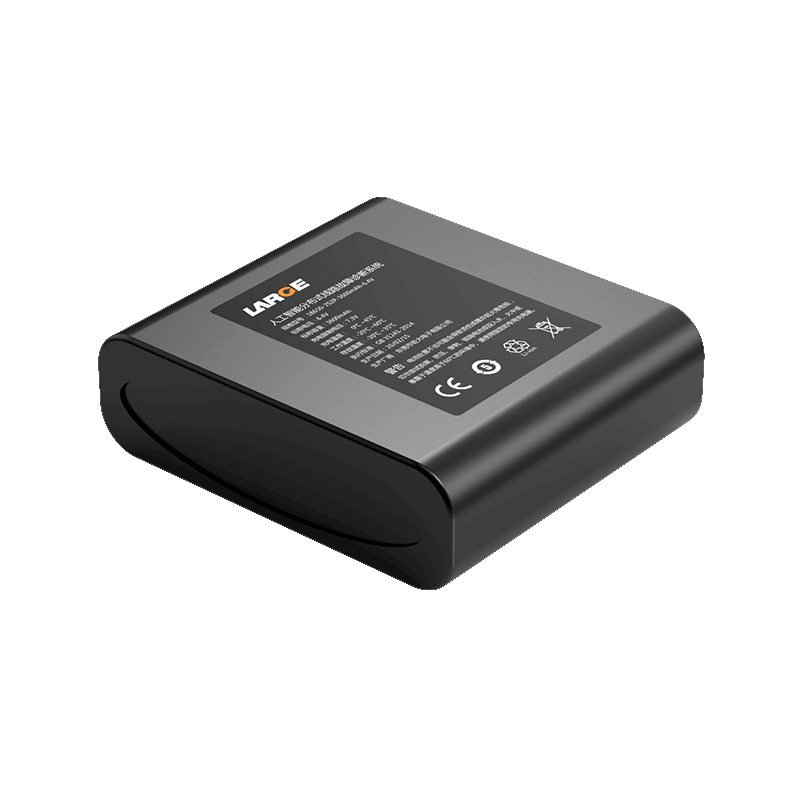

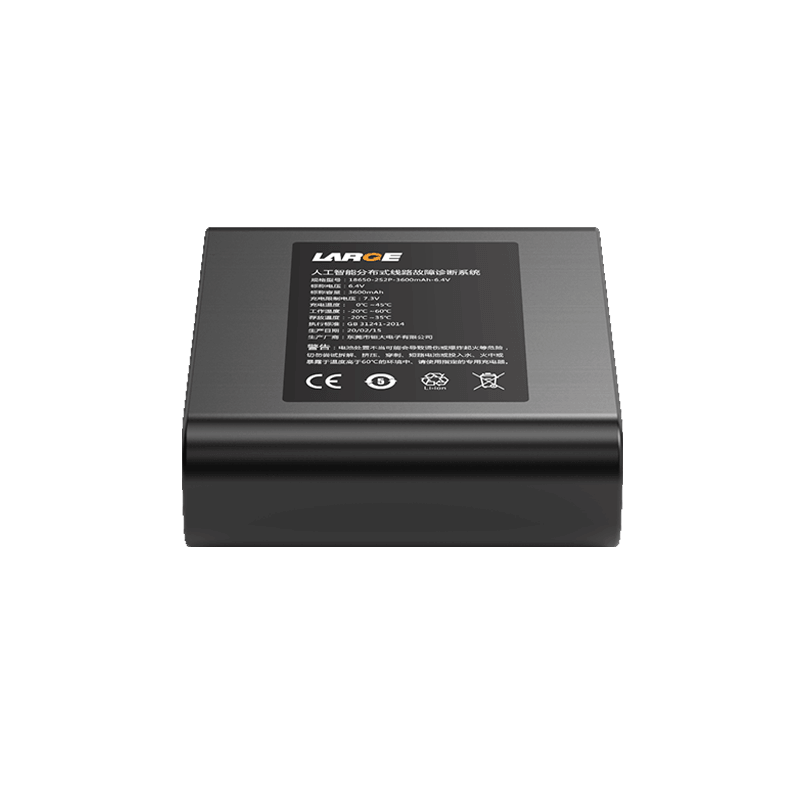

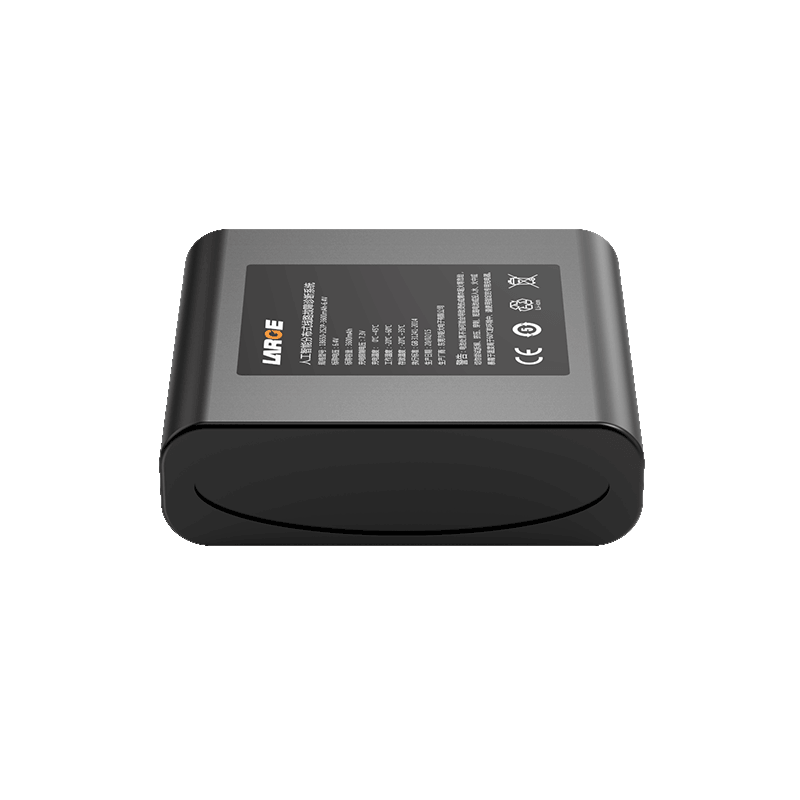

Custom Lithium ion Battery Pack
Product number: 04EQ237-04
Cell model: 18650-1800MAH-3.2V
Specification: 18650-2S2P-3600MAH-6.4V
Nominal voltage: 6.4V
Nominal capacity: 3600mAh
Charging voltage: 7.3V
Charging current: ≤3.2A
Discharge current: ≤3.2A
Discharge cut-off voltage: 5.0V
Product internal resistance: ≤180mΩ
Battery weight: 210G
Product size: 71*76*21mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Portable line fault diagnosis system, portable equipment
Product Features
1.Blue PVC heat shrinkable film is simple, reliable and easy to install.
2.Connector plug terminal: The MOLEX plug is used to output the connector to increase conductive reliability.
3.Battery management: Adopt imported seigong protection chip with good stability, high precision monitoring, precise control, and ESD protection, eliminating safety risks to the maximum.
4.The battery pack uses lithium iron phosphate system with good safety and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
