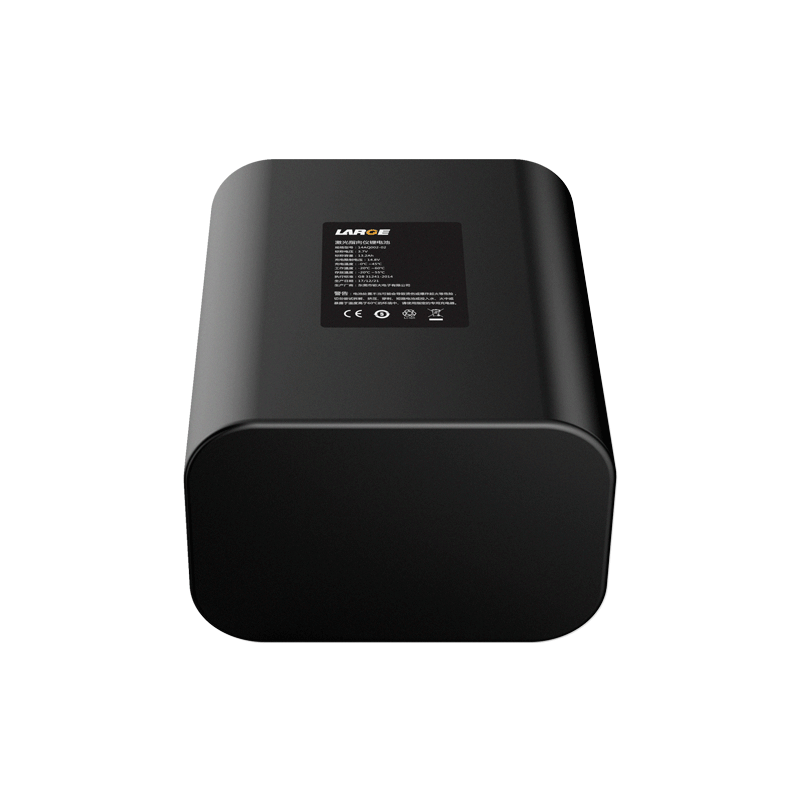

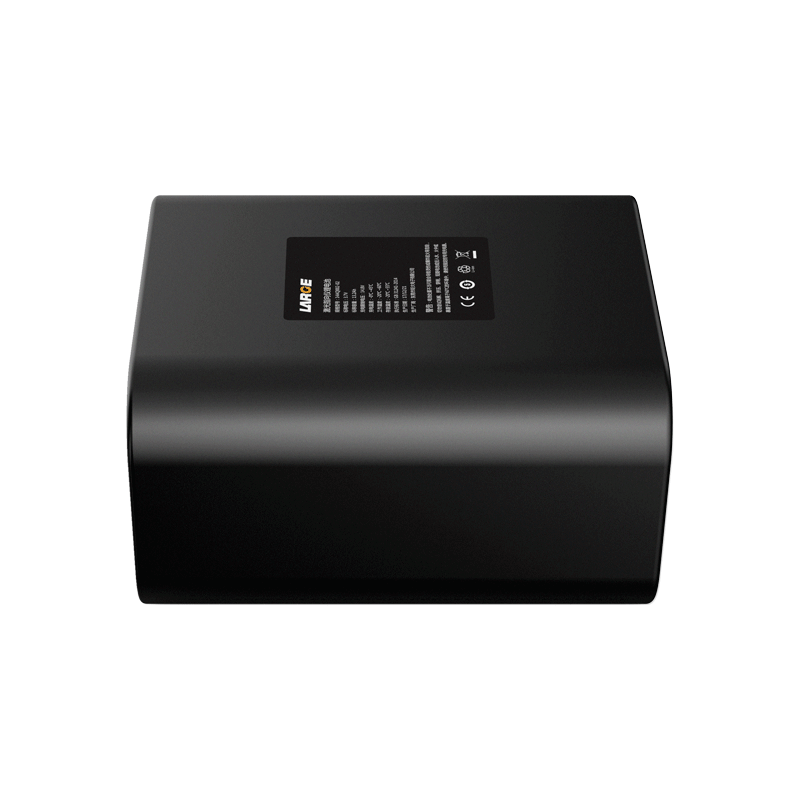

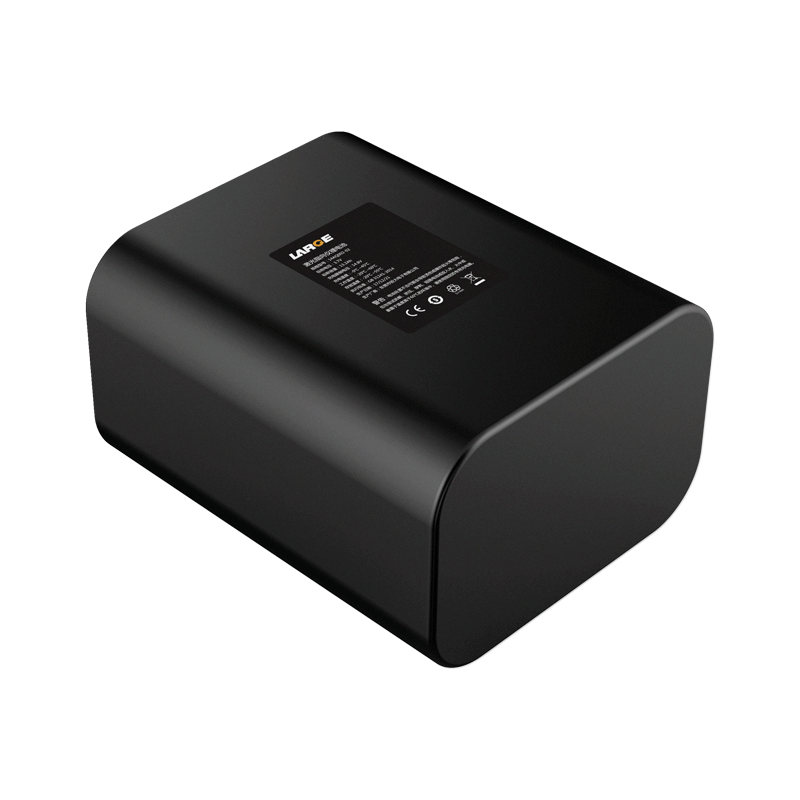

Custom Lithium ion Battery Pack
Product number: 14AQ002-02
Combination mode: ICR18500-1S6P
Nominal voltage: 3.7V
Operating voltage: 2.4~4.2V
Nominal capacity: 13.2Ah
Standard continuous discharge current: 0.2C
Maximum continuous discharge current: 0.3C
Operating temperature: Charging: 0~45℃
Discharge: - 20 ~ 60 ℃
Product dimension: Max 37.8*56*67.5mm
Finished product internal resistance: ≤150mΩ
Lead model: UL3239/20# wire, wire length 180m
Protection parameters: overcharge protection voltage / 4.28±0.025V per series
Over-discharge protection voltage 2.4±0.1V
Over current value: 2~4A
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
