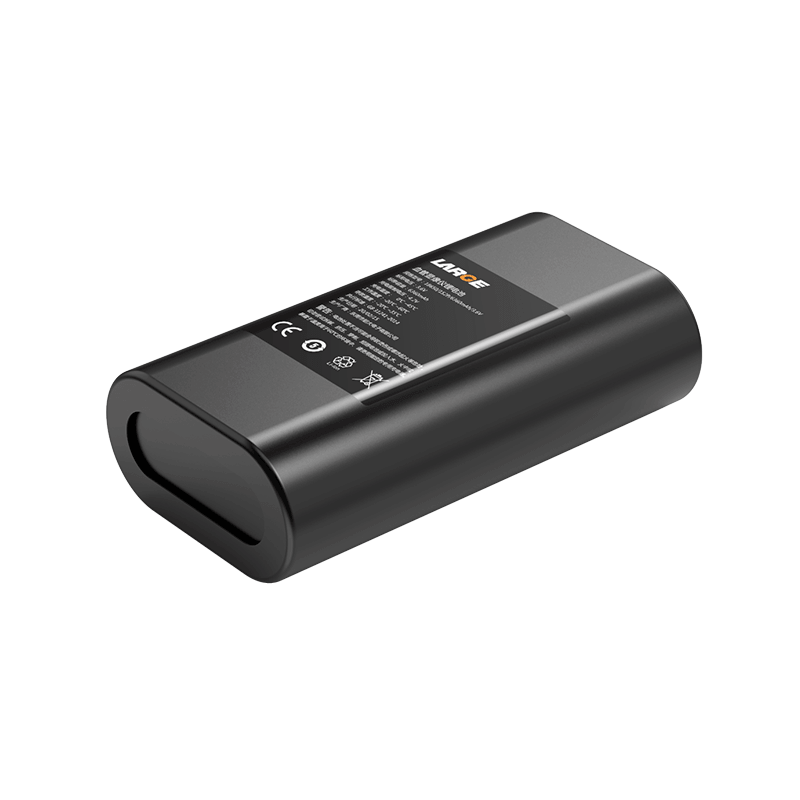

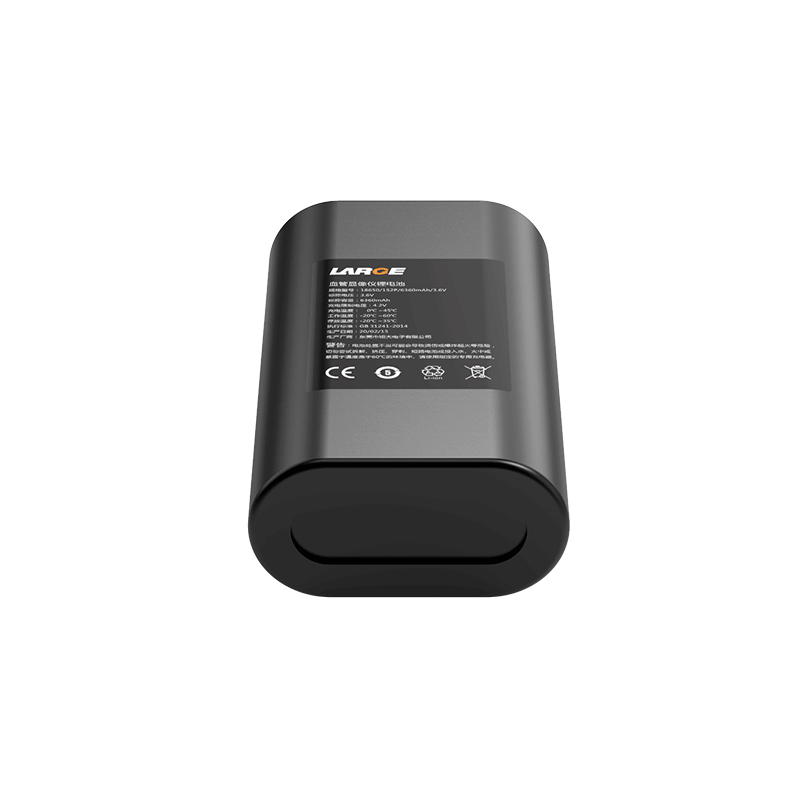

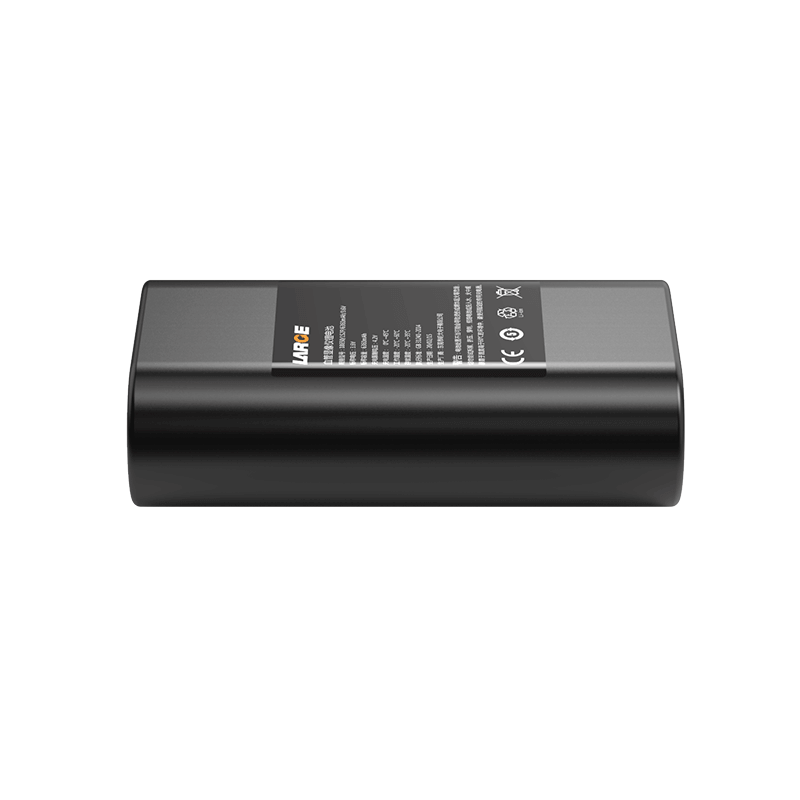

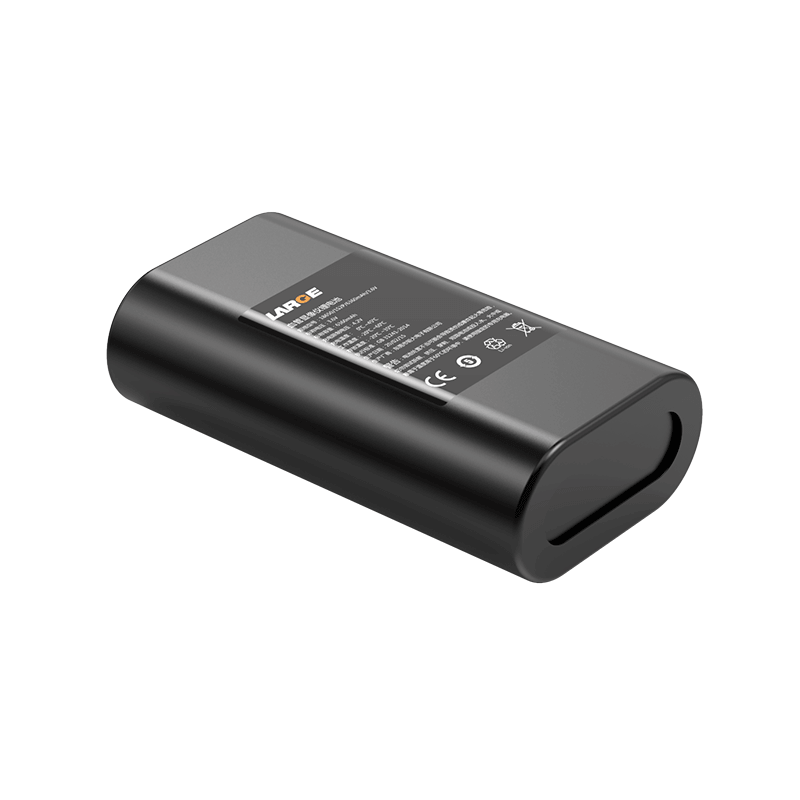

Custom Lithium ion Battery Pack
Product number: 08DQ0050-01
Cell model: NCR18650BD/3180mAh/3.6V
Specification: 18650/1S2P/6360mAh/3.6V
Product size: 67.5*38*22mm (Max)
Nominal voltage: 3.6V
Nominal capacity: 5800mAh
Product internal resistance: ≤180mΩ
Charging voltage: 4.2V
Charging current: ≤ 2.4A
Discharge current: ≤ 2.4A
Discharge cut-off voltage: 3.0V
Battery weight: 100G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: angiography, portable medical device
Product Features
1.Blue PVC heat shrinkable film is simple, reliable and easy to install.
2.Connector plug terminal: The JST plug is used to output the connector to increase conductive reliability.
3.Battery management: Adopt imported seigong protection chip with good stability, high precision monitoring, precise control, and ESD protection, eliminating safety risks to the maximum.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
