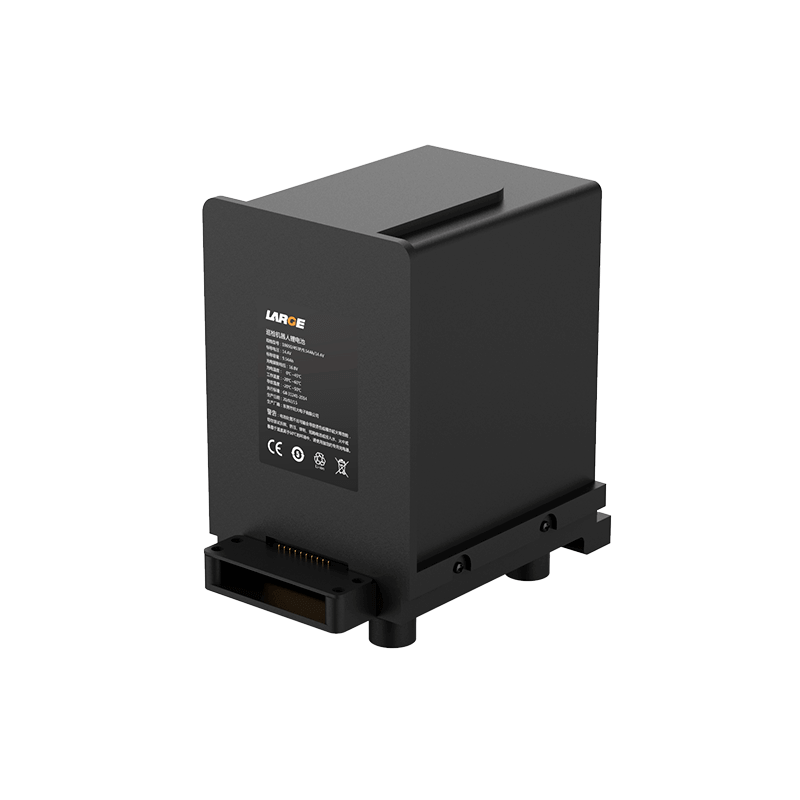

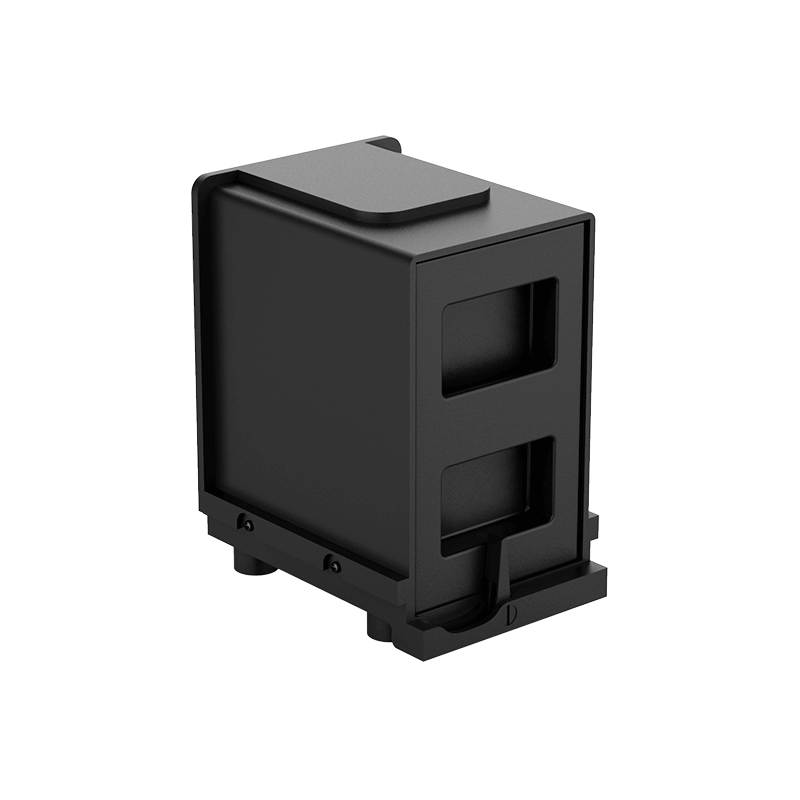

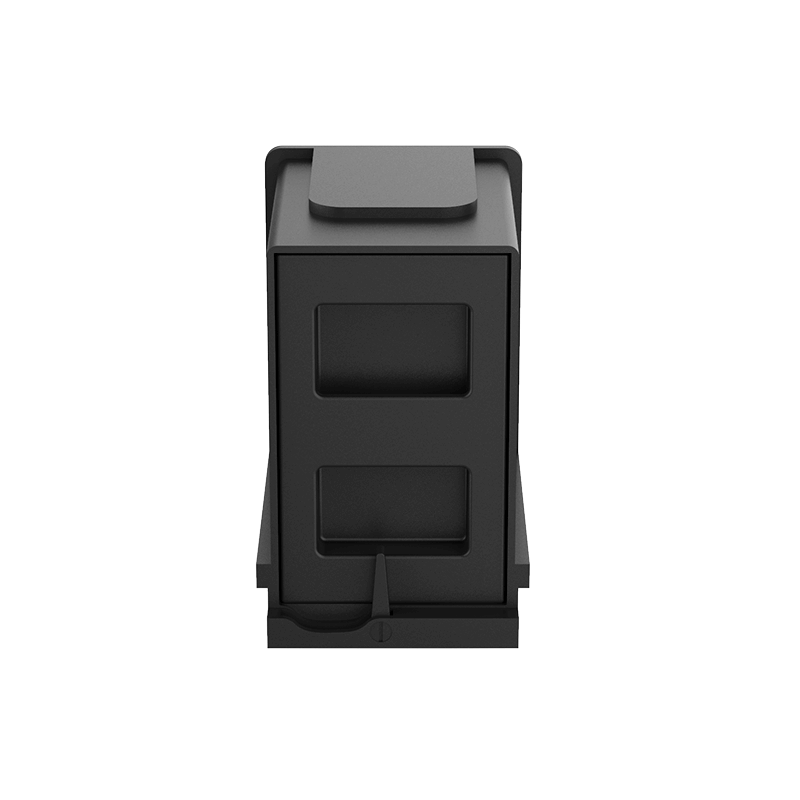

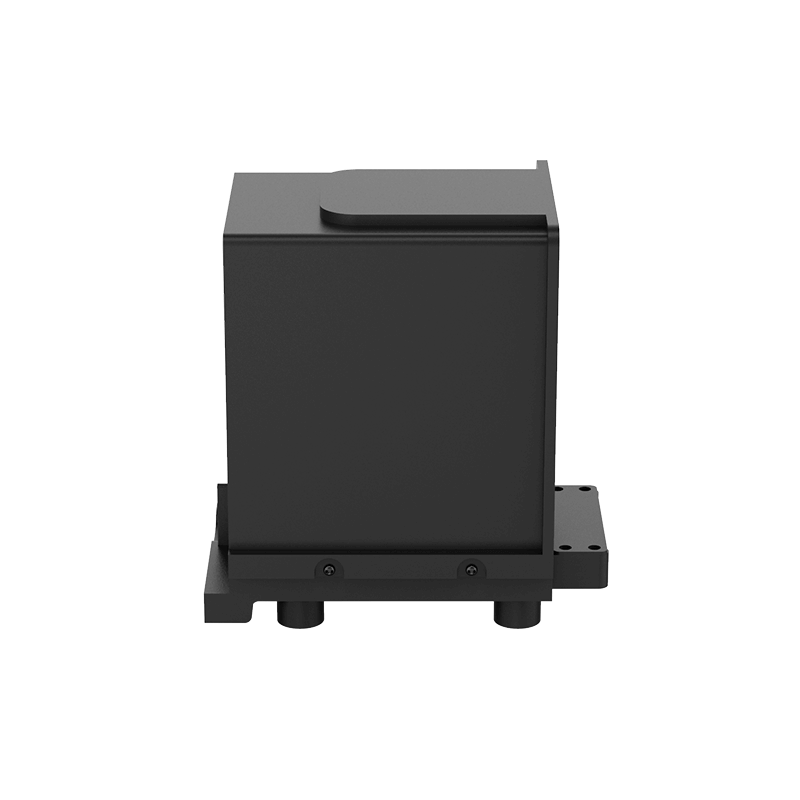

Custom Lithium ion Battery Pack
Product number: 08DQ0049-01
Cell model: 18650/3180mah /3.6V
Specification: 18650-4S3P/ 9.54AH /14.4V
Product size: 98mm*60mm*85mm
Nominal voltage: 14.4V
Nominal capacity: 9.54Ah
Charging voltage: 16.8V
Charging current: 2A
Discharge current: 10A
Discharge cut-off voltage: 10V
Product internal resistance: ≤180mΩ
Battery weight: 750g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20~+50℃ (< 1 month) -20~ 40 ℃(< 3 months); -20~+20℃ (< 12 months)
Battery case: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Robotics
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
