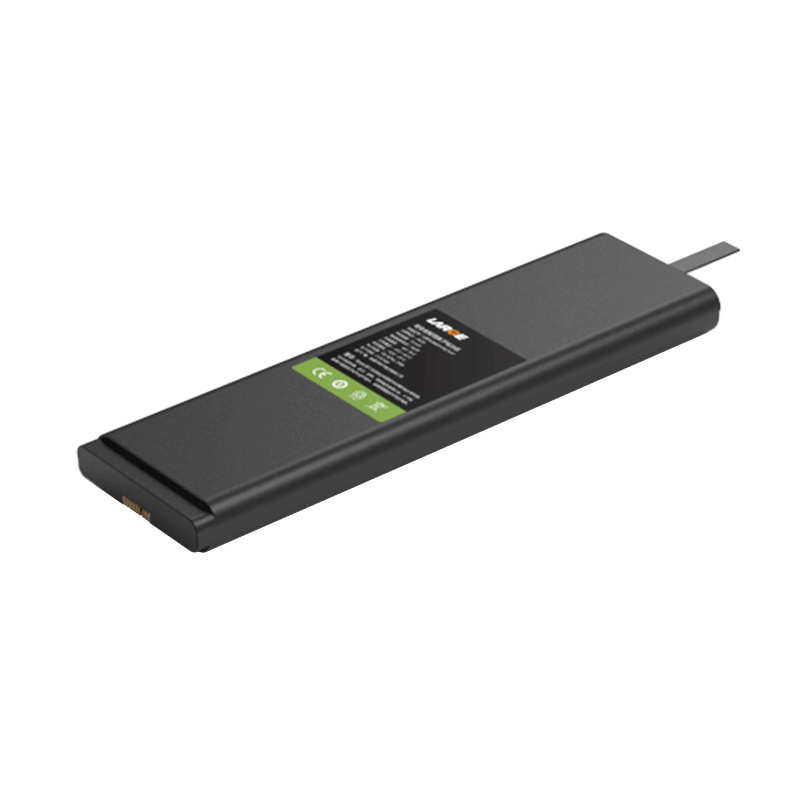

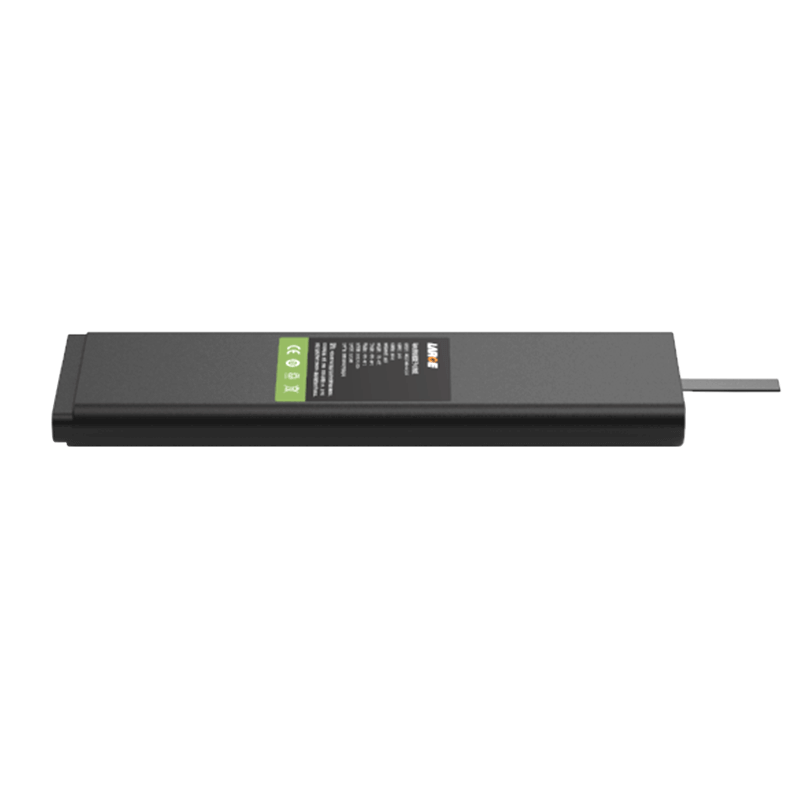

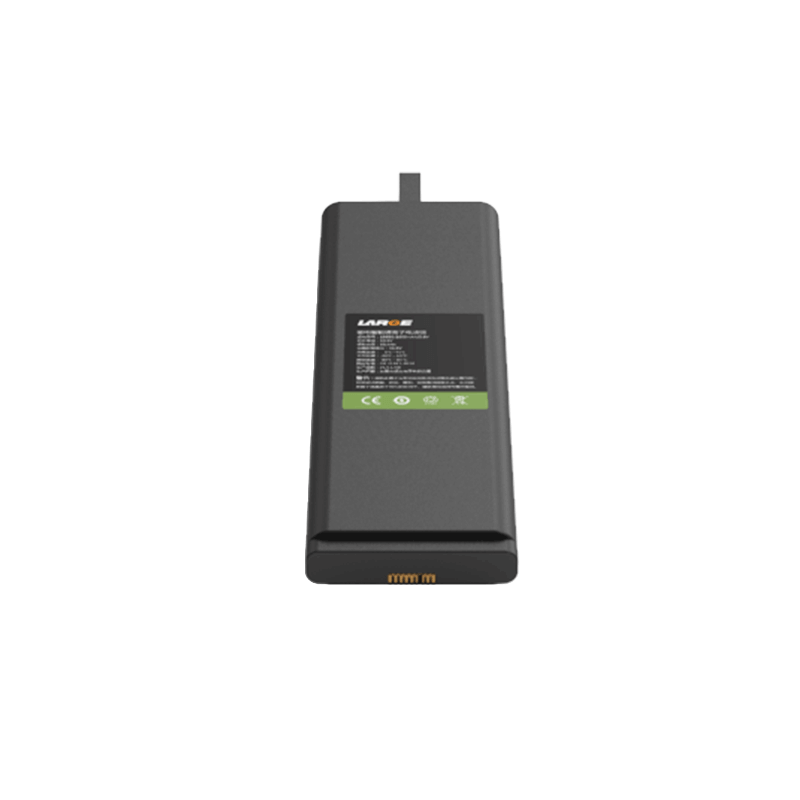

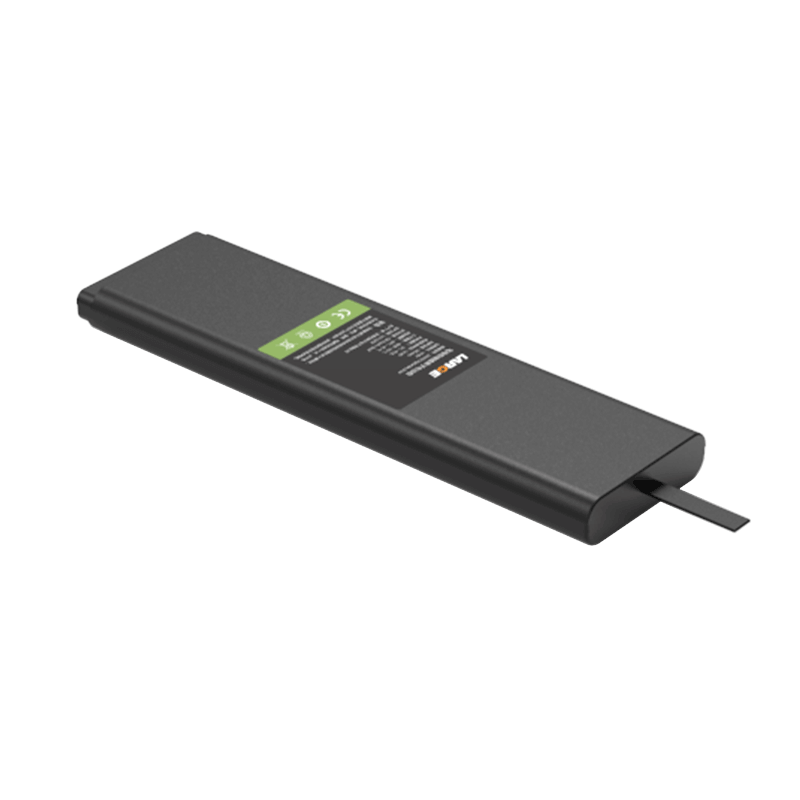

Custom Lithium ion Battery Pack
Product number: 36AQ600-02
Cell model: 18650/2600mah /3.6V
Specification: 14.8V-10.4Ah
Product size: 280x79x21mm
Nominal voltage: 14.8V
Nominal capacity: 10.4Ah
Charging voltage: 16.8V
Charging current: 3.5A
Discharge current: 5.0A
Discharge cut-off voltage: 10V
Product internal resistance: ≤280mΩ
Battery weight: 900 g
Charging temperature: 0°C ~+60 °C
Discharge temperature: -40°C~+60 °C
Storage temperature: -40~+45℃ (< 1 month) -40~+35℃(< 3 months); -40~+25℃ (< 12 months)
Communication protocol: SMBUS
Battery case: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: laptop
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
