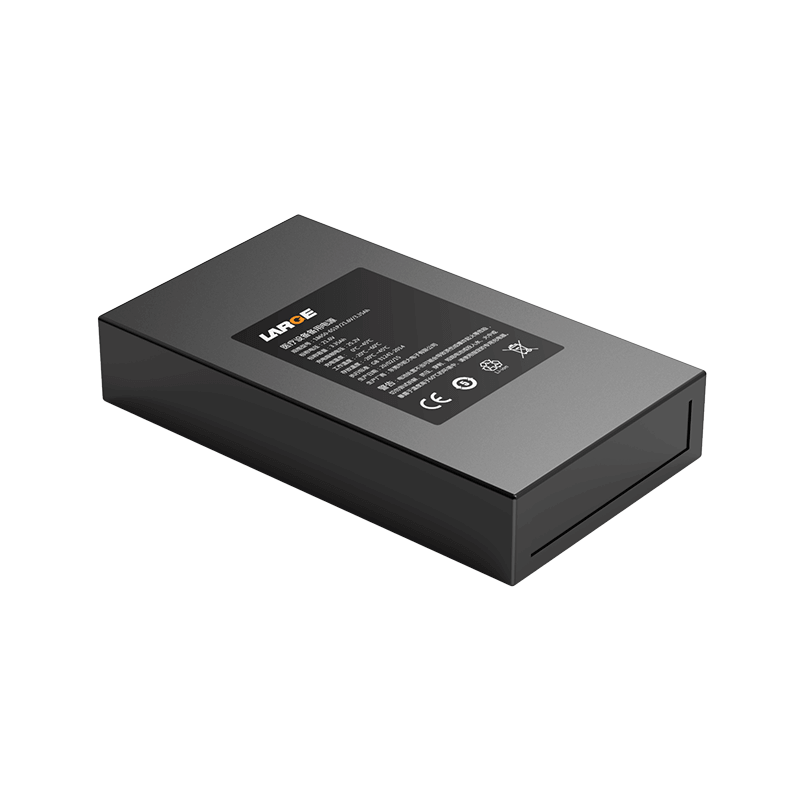

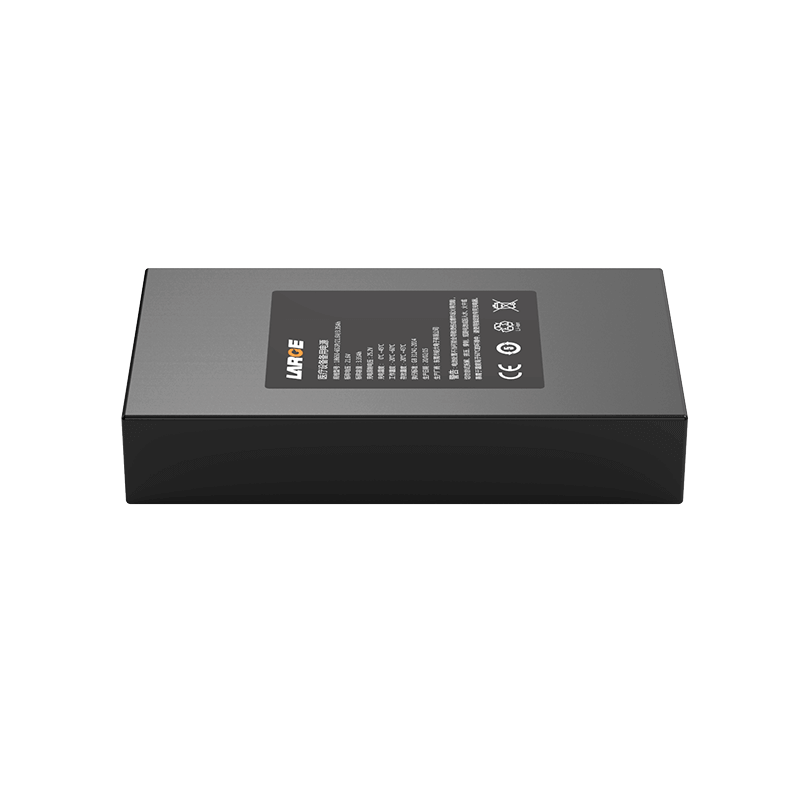

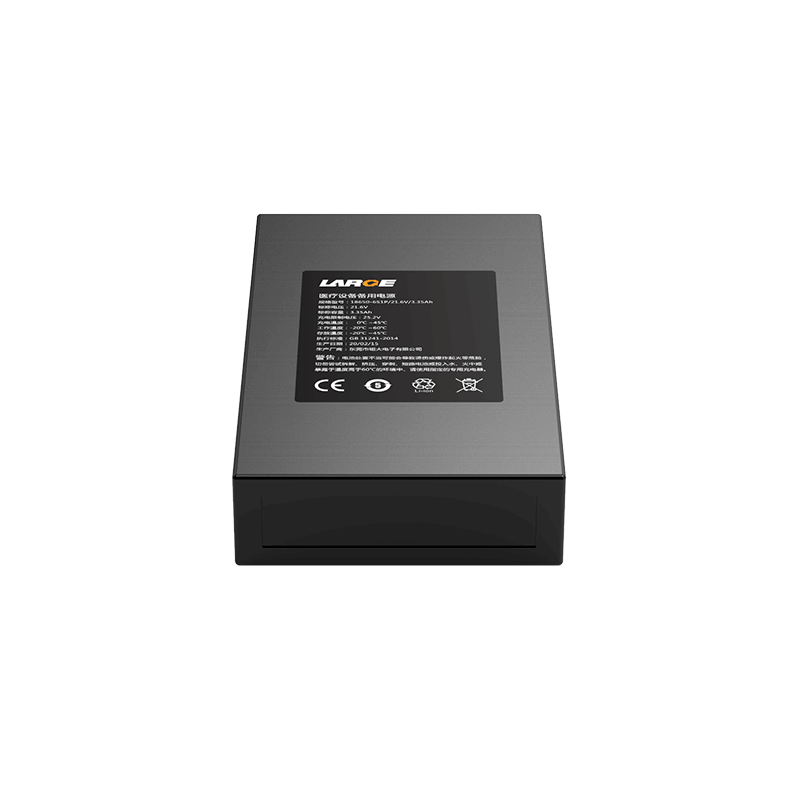

Custom Lithium ion Battery Pack
Product number: 37DZ071-04
Cell model: 18650/3.6V/ 3.35AH
Specification: 18650-6S1P/21.6V/3.35Ah
Nominal voltage: 21.6V
Nominal capacity: 3.35Ah
Charging voltage: 25.2V
Charging current: ≤3.35A
Discharge current: ≤7A
Instantaneous discharge current: 20-40A
Discharge cut-off voltage: 18V
Product internal resistance: ≤200mΩ
Battery weight: 350g
Product size: 23.5*75* 123.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Temperature protection: 70℃±5℃
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, anti reverse connection protection, etc.
Application: Medical devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
