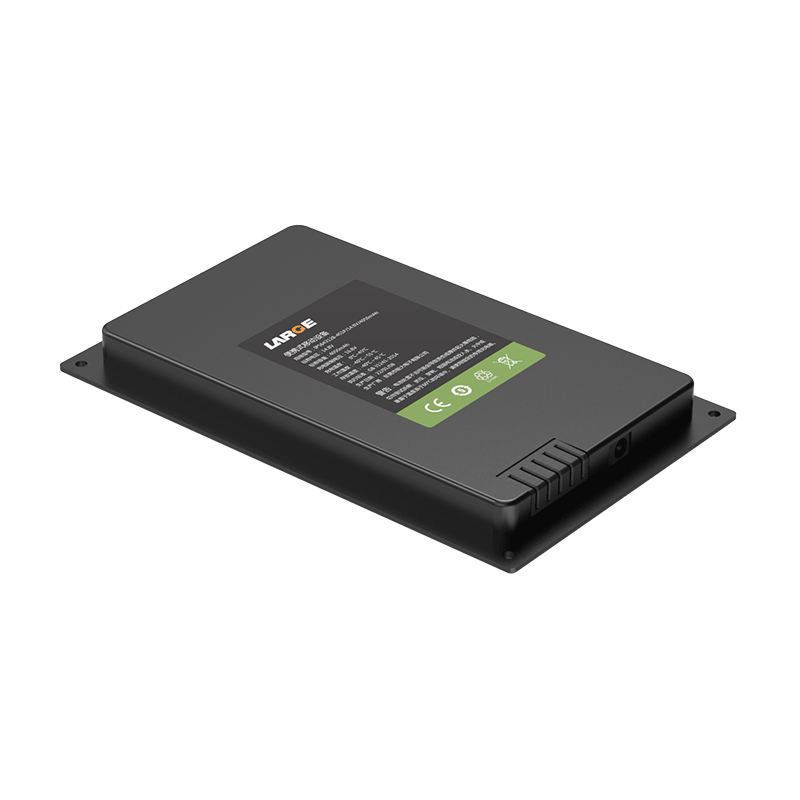

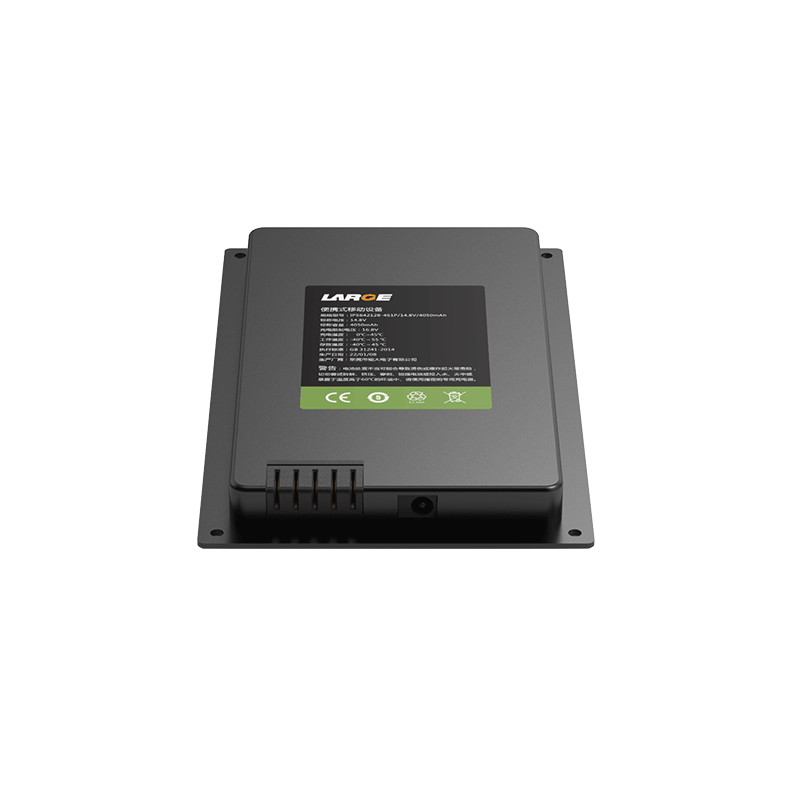

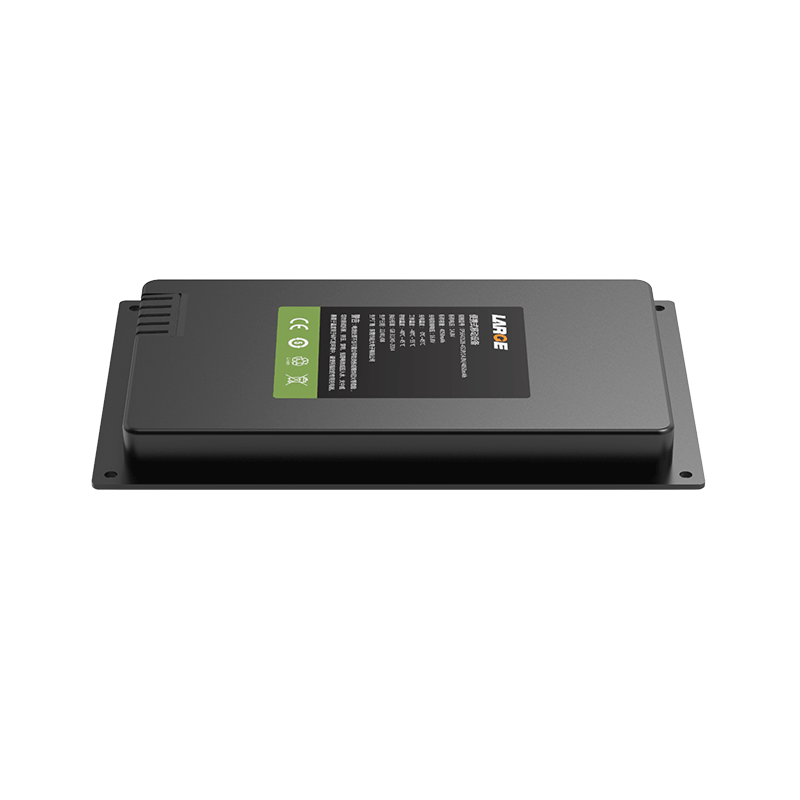

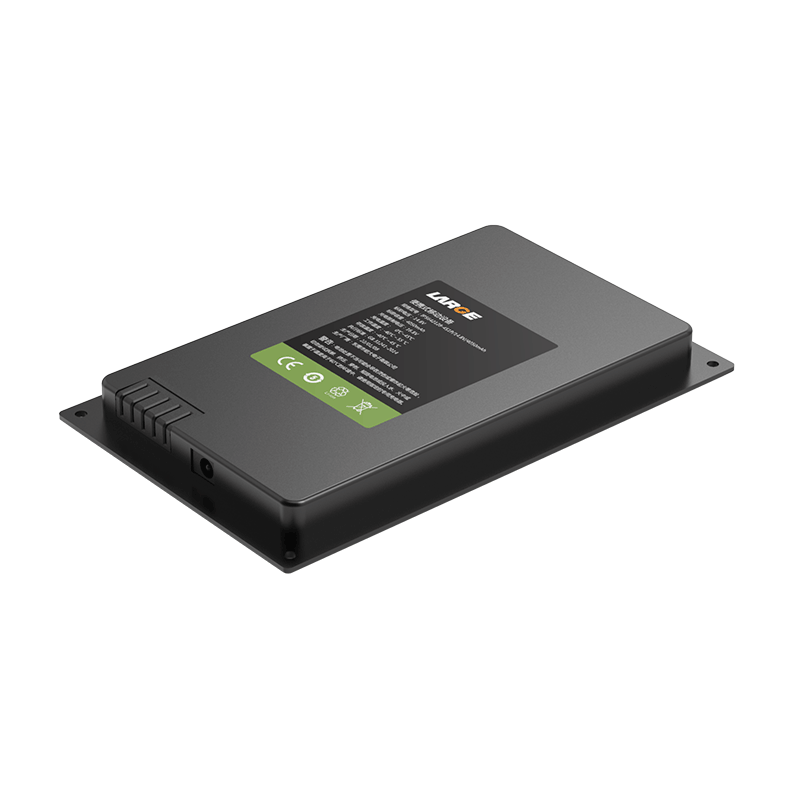

Custom Lithium ion Battery Pack
Product number:39DZ009-01A
Cell model: IP5642128/3.7V/4050mAh
Specification: IP5642128-4S1P/14.8V/4050mAh
Nominal voltage: 14.8V
Nominal capacity: 4050mAh
Charging voltage: 16.8V
Charging current: ≤ 2.1A
Discharge current: 3A
Instantaneous discharge current: 8A
Discharge cut-off voltage: 10V
Internal resistance: ≤250mΩ
Battery weight: 430 GB
Product size: 16*104*166 mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -40 ° C to 45 ° C
Battery case: aluminum magnesium alloy case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, I2C communication, etc.
Application: Portable mobile devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
