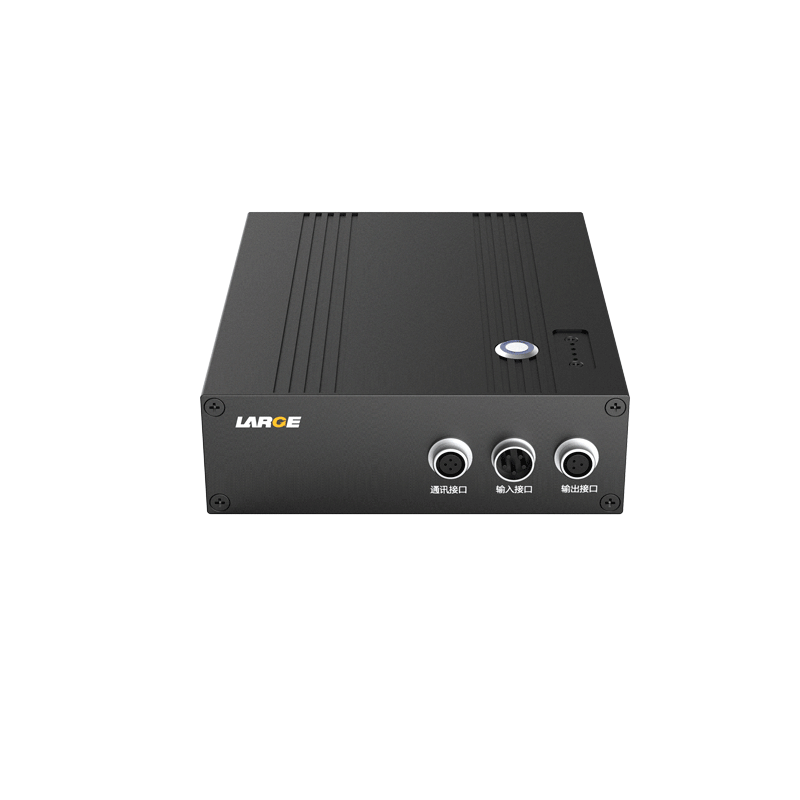

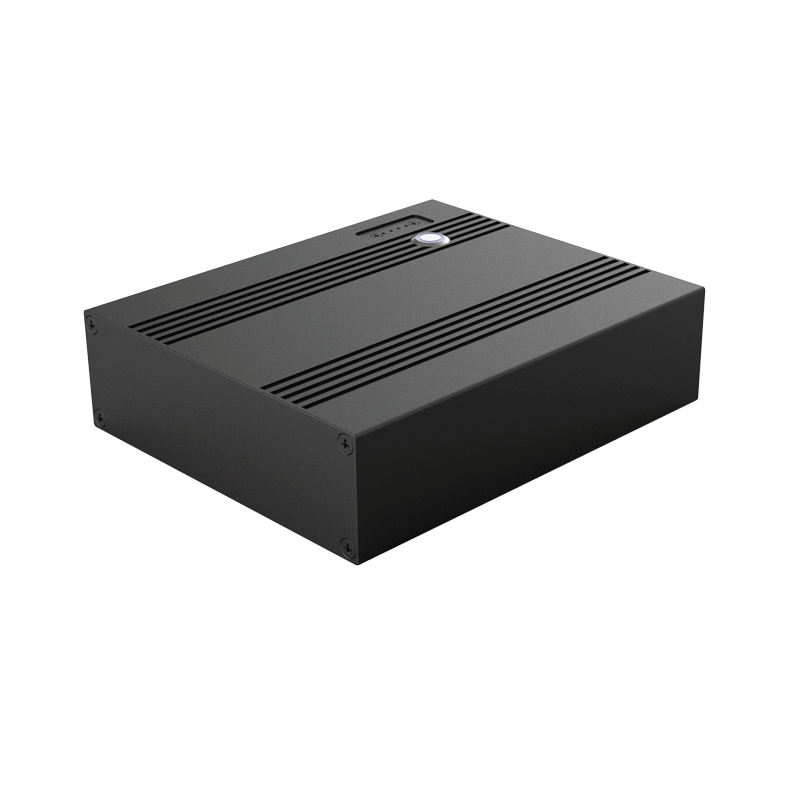

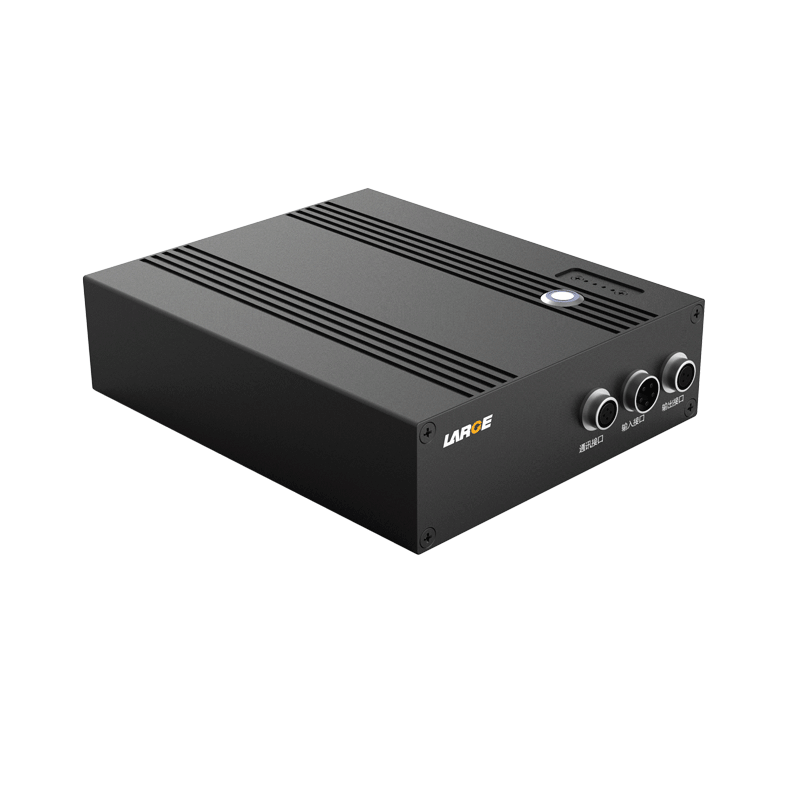

Custom Lithium ion Battery Pack
Product number: 04EQ029-12
Cell model：18650/3.6V/3.35Ah
Battery specification: 18650-3S10P/10.8V/33Ah
Nominal voltage：10.8V
Nominal capacity：33Ah
Charging voltage: 12.8V
Charging current: ≤6A
Discharging current: 6A
Instant discharging current: 15A
End-off voltage: 7.5V
Internal resistance: ≤200m?
Battery weight:2.5kg
Product dimension: 204×167×54（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～40 ℃
Temperature protection: 65℃±5℃
Battery case: aluminum alloy
Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, temperature protection, equilibrium, etc.
Product features
1. Capacity display: display the battery capacity by LED and know the battery status directly.
2. Waterproof aviation connector: adopt waterproof connector which is safe and reliable.
3. Communication interface: adopt RS485 communication protocol, and can read the voltage, current, temperature and capacity of battery.
4. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
