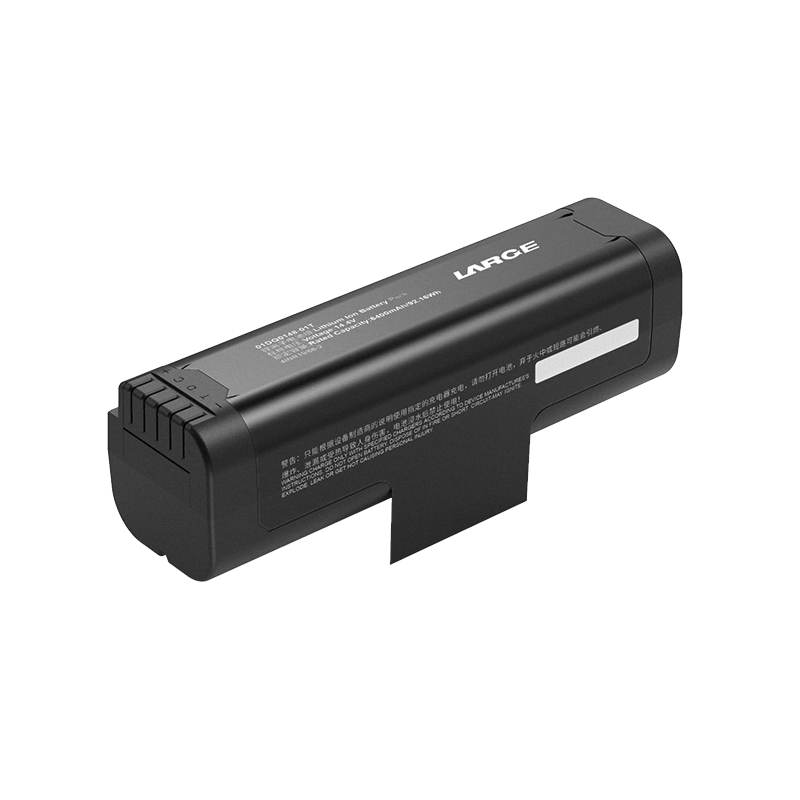

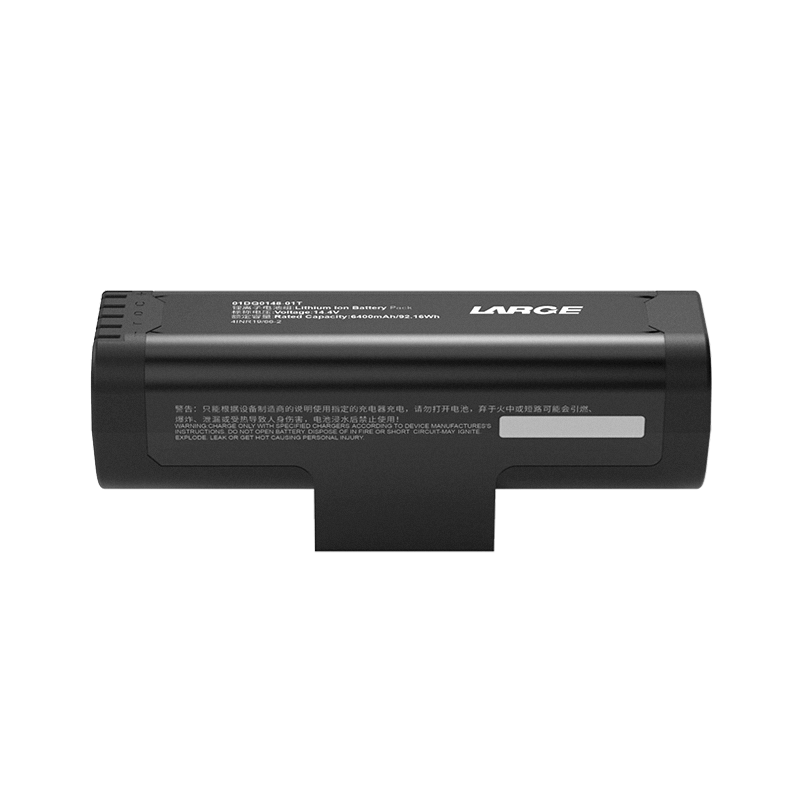

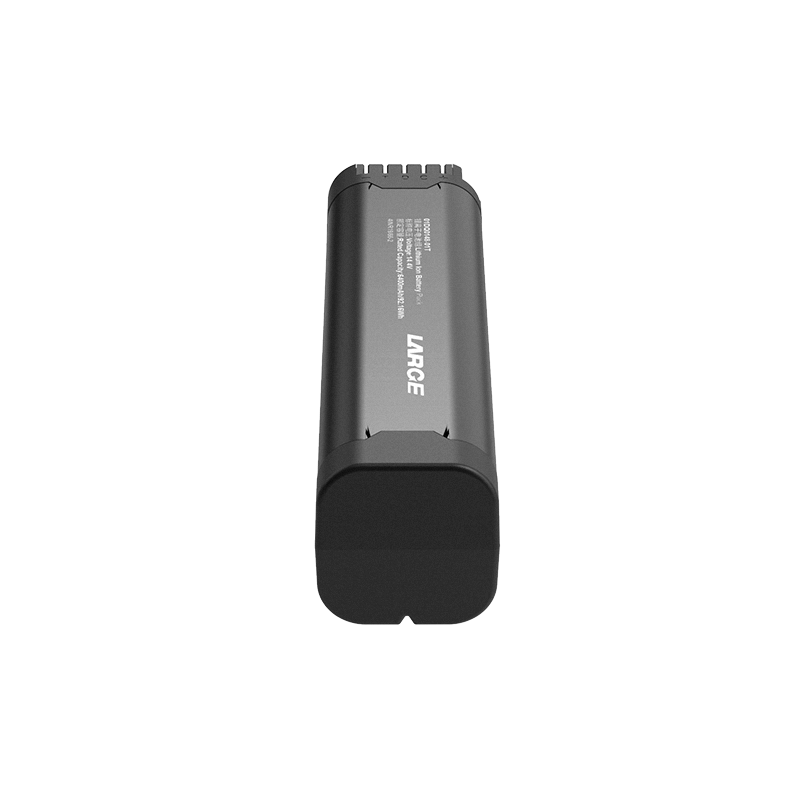

Custom Lithium ion Battery Pack
Product number: 01DQ0148-01T
Cell model: INR18650-35E/3350mAh/3.6V
Battery Specifications: 18650-4S2P/6700mAh/14.4V (Smart + Case)
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤ 3.3A
Discharge current: 6.6A
Instantaneous discharge current: 8.5A
Discharge cut-off voltage: 10.8V
Internal resistance: ≤250mΩ
Battery weight: 550 GB
Product size: 41*41.5*150mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20°C to 23°C
Battery case: ABS+PC
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: ultrasonic endoscope
