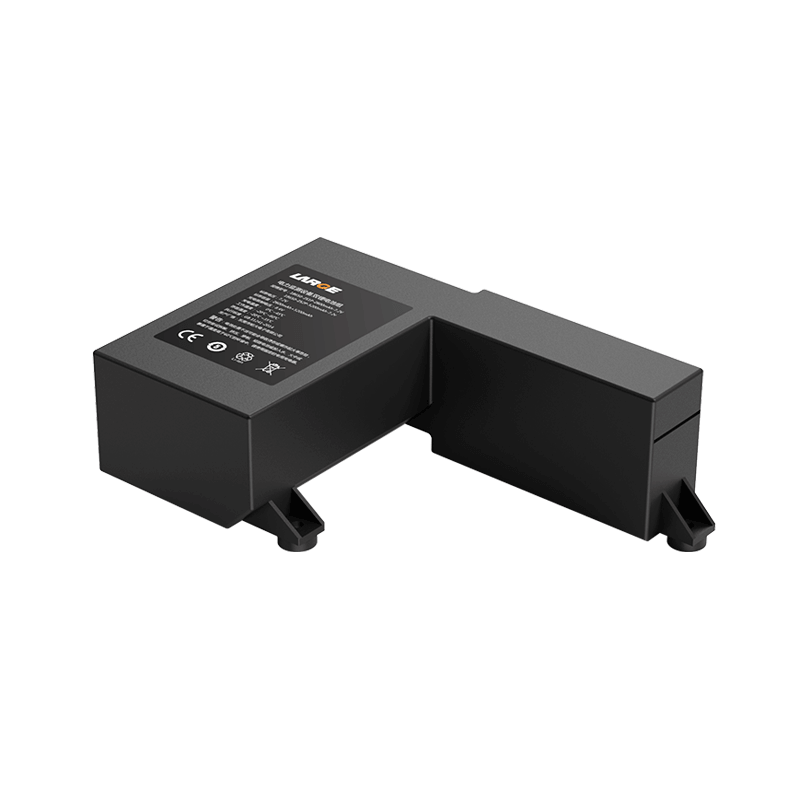

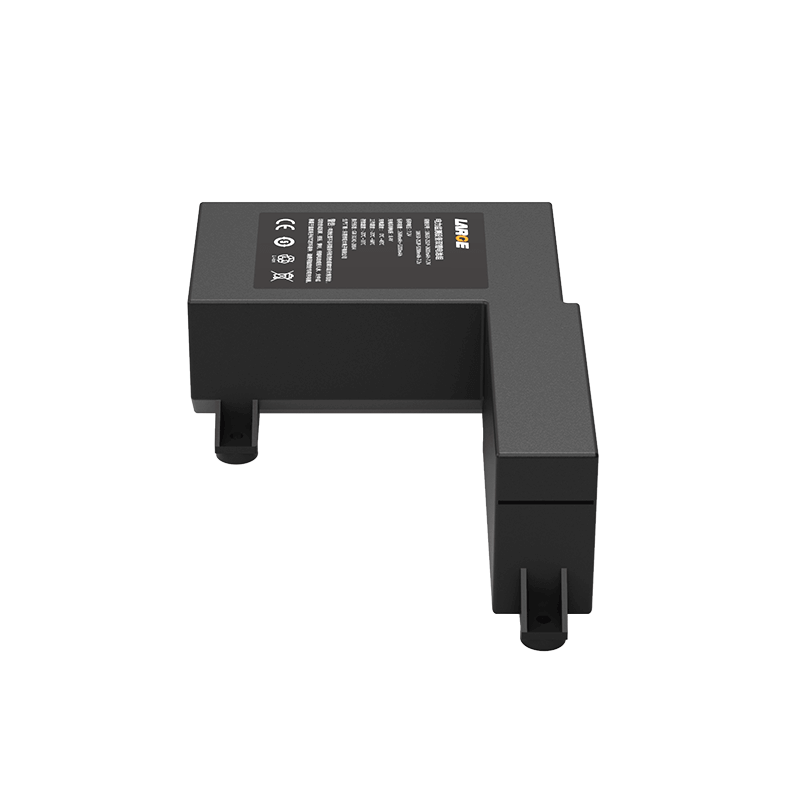

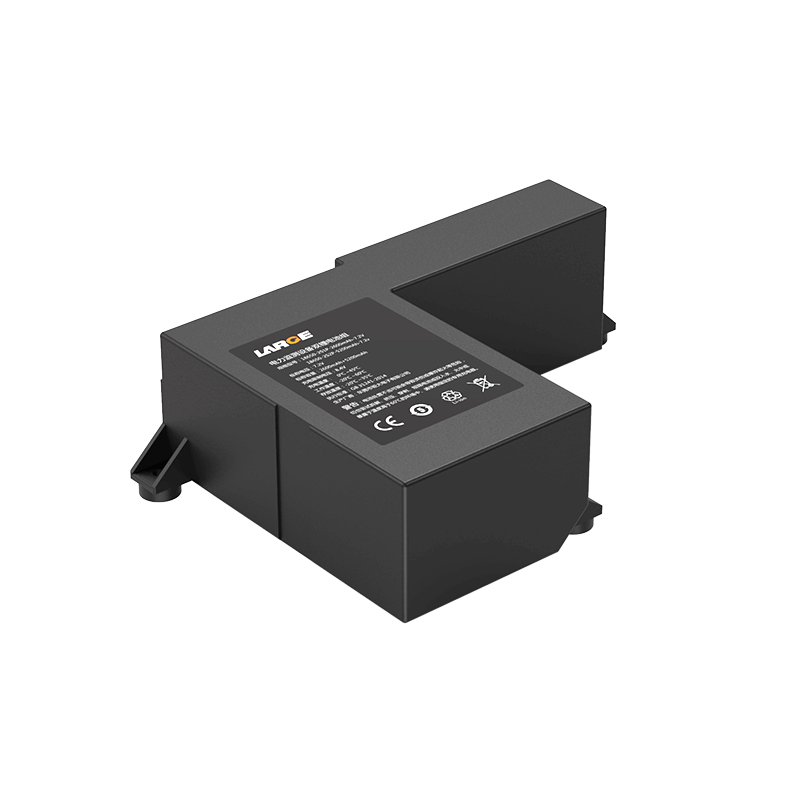

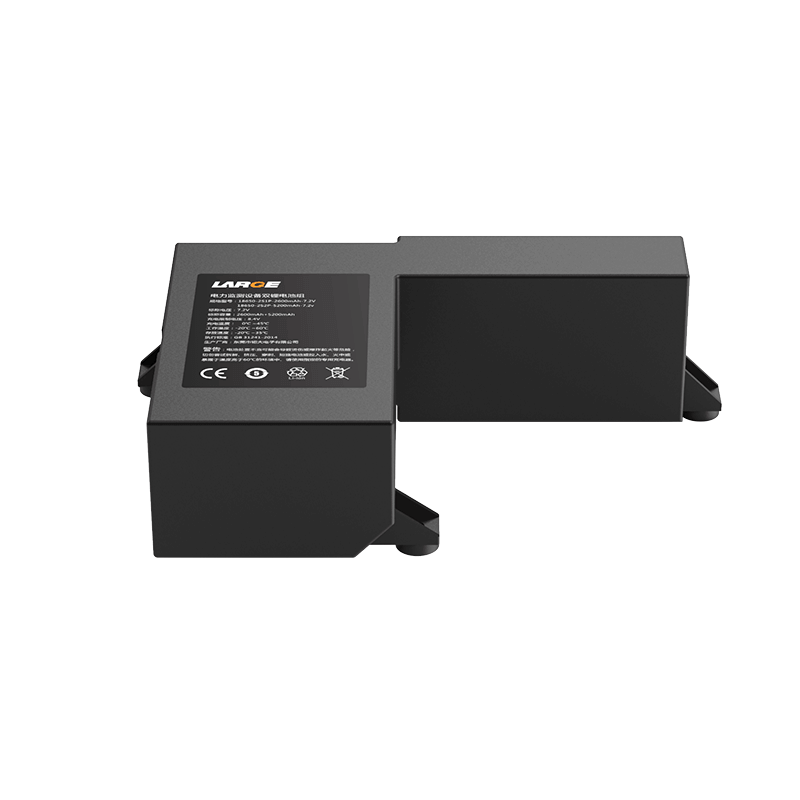

18650 7.2V 2600mAh+5200mAh Power Monitoring Equipment

Customization | Free Battery Solution

Product Detail

Product number: 34AQ018-12

Cell model: 18650-2600MAH-3.6V

Battery specification: 18650-2S1P-2600MAH-7.2V + 18650-2S2P-5200Mah-7.2V

Product size: 124×91.7×40.8mm

Nominal voltage: 7.2V

Nominal capacity: 2600mAh+5200mAh

Charging voltage: 8.4V

Charging current: ≤1.0A

Discharge current: ≤ 2.5A

Cut-off voltage: 5.6V

Product internal resistance: ≤280mΩ

Battery weight: 350g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: engineering plastic ABS+PC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Power test equipment, test equipment

Product Features

1.ABS+PC shell increases battery reliability and firmness.

2.Connector terminal: The JST plug output mode is used to increase the reliability of electrical conduction.

3.Battery management: Adopt imported protection chip with high stability, high precision monitoring, precise control, and ESD protection, so as to eliminate safety risks to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values.
