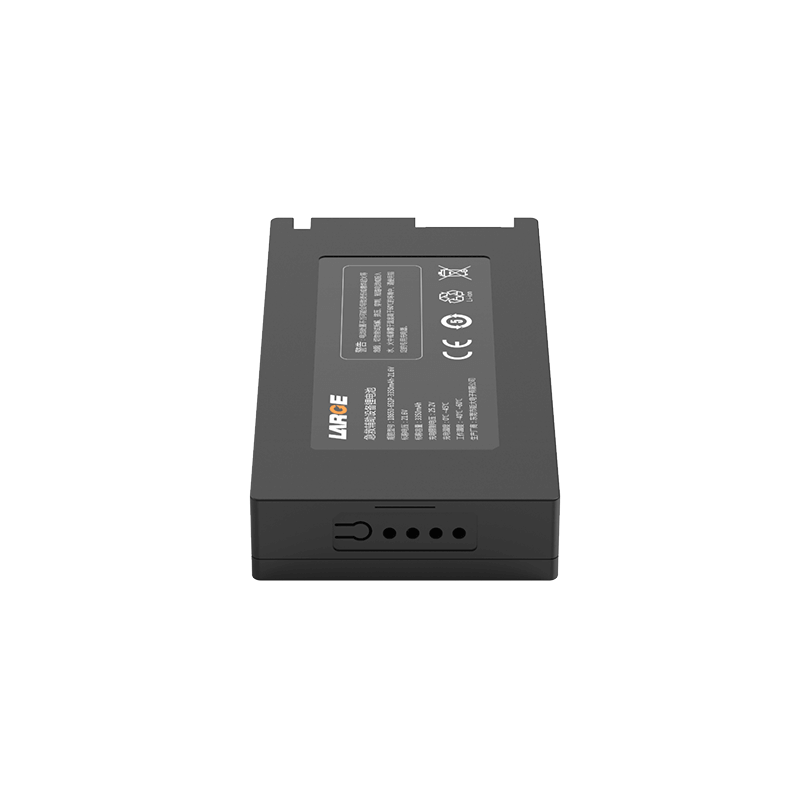

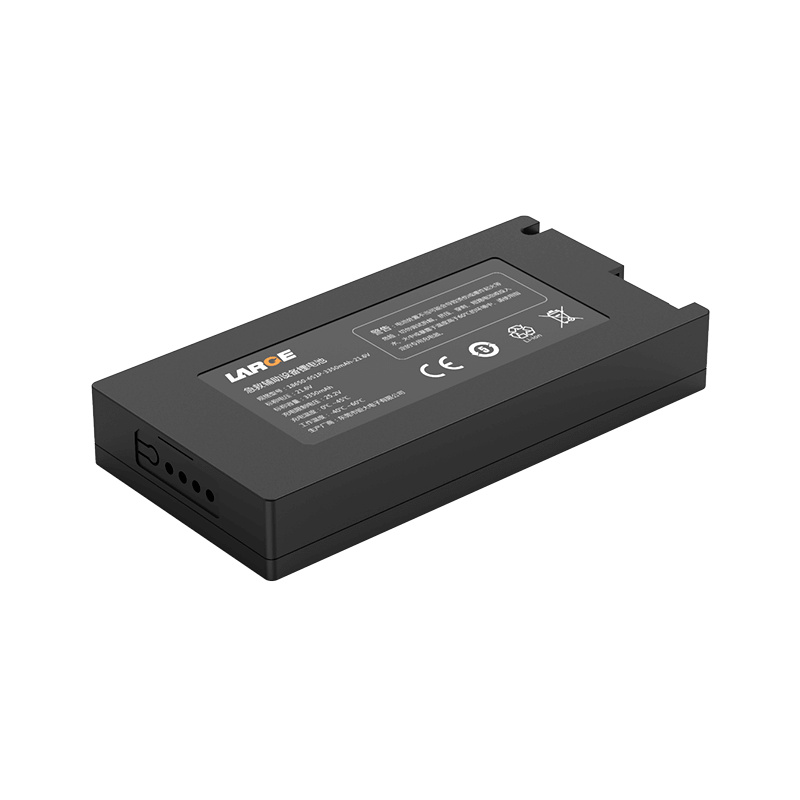

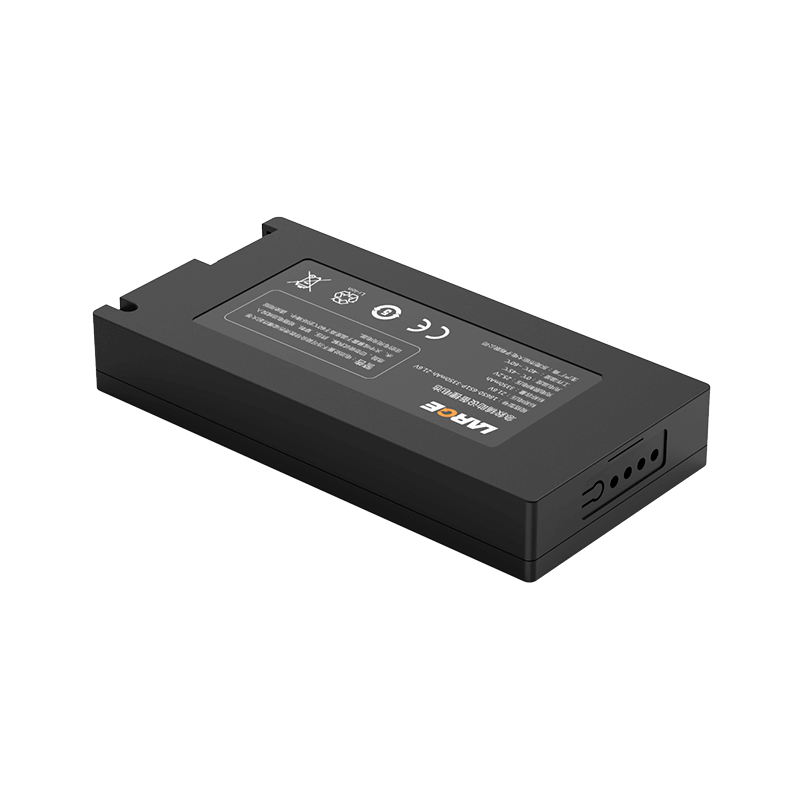

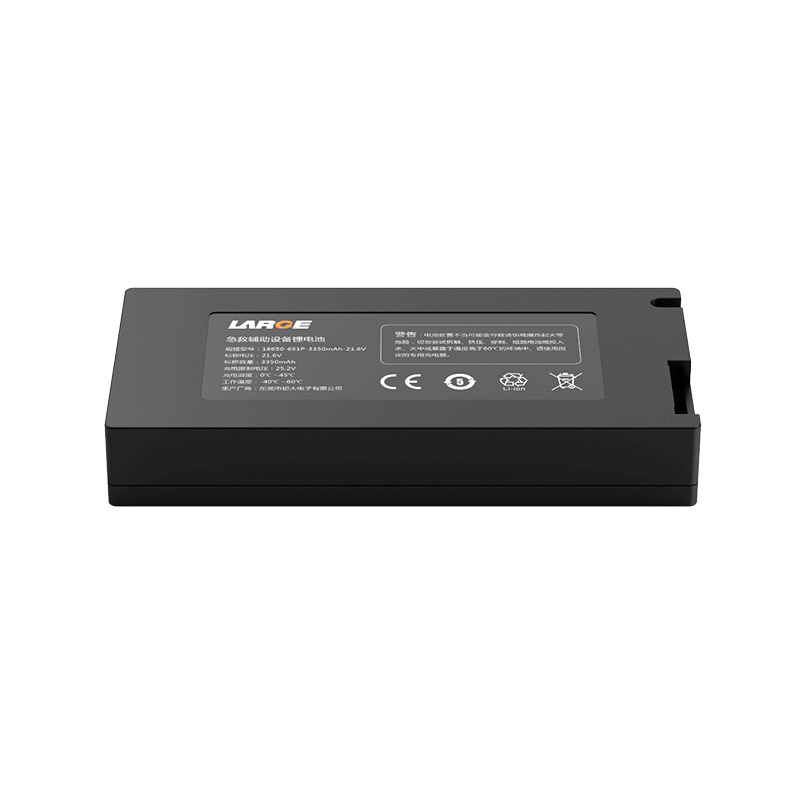

18650 21.6V 3350mAh Samsung Battery for First Aid Equipment

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0052-01

Cell model: 18650-3350MAH-3.6V

Battery specification: 18650-6S1P-3350MAH-21.6V

Product size: 160*80*25mm (Max)

Nominal voltage: 21.6V

Nominal capacity: 3350mAh

Product internal resistance: ≤230mΩ

Charging voltage: 25.2V

Charging current: ≤2.0A

Discharge current: ≤4.0A

Discharge cut-off voltage: 16.8V

Battery weight: 400g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery package: engineering plastic ABS+PC

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Portable B ultrasound, medical auxiliary equipment, portable medical equipment

Product Features

1.ABS+PC shell with aluminum alloy shell increases reliability and firmness of the battery.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Data communication management: Use Ti-Smbus software management chip, precise SMBus communication data transmit and accurate temperature control,so as to  minimize security risks.

4.The battery has LED power display function.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values;
