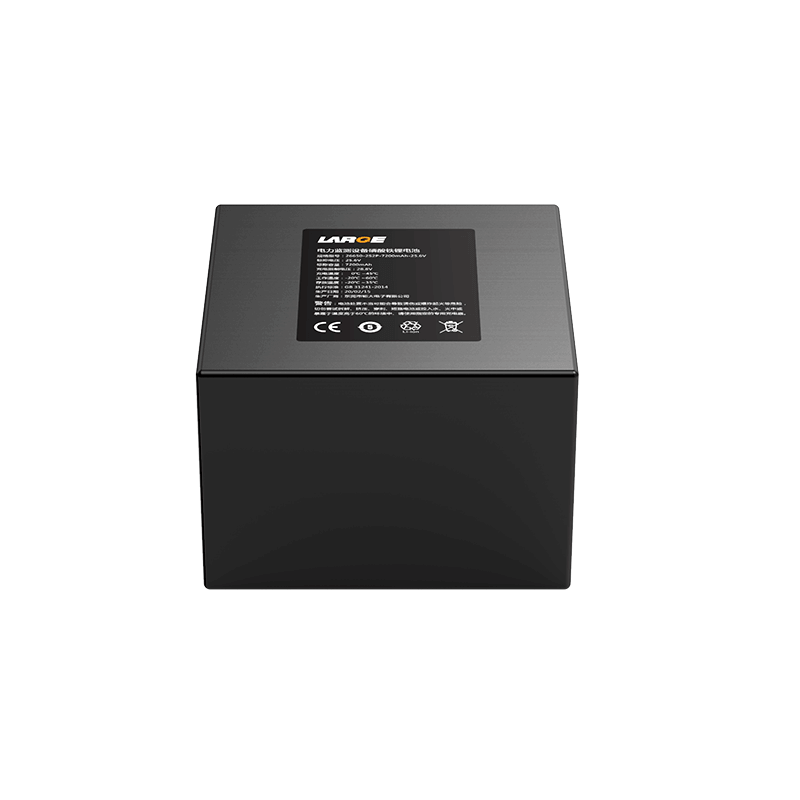

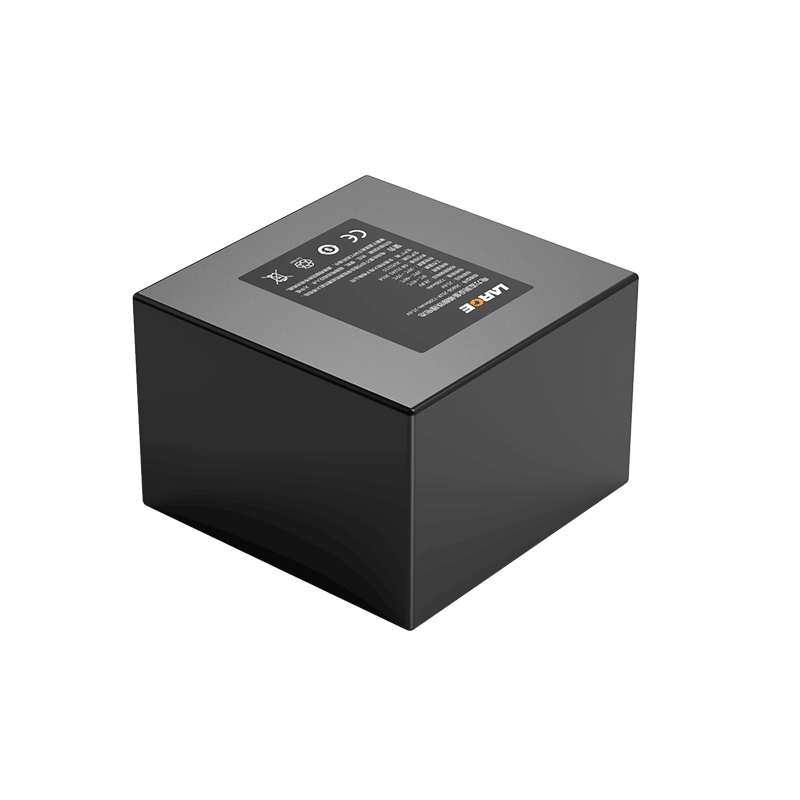

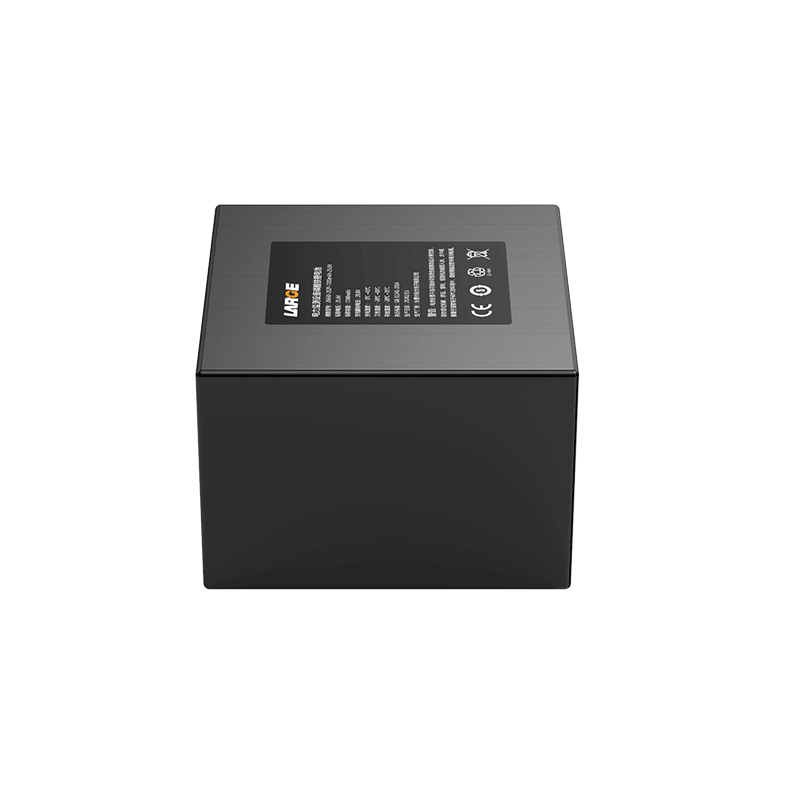

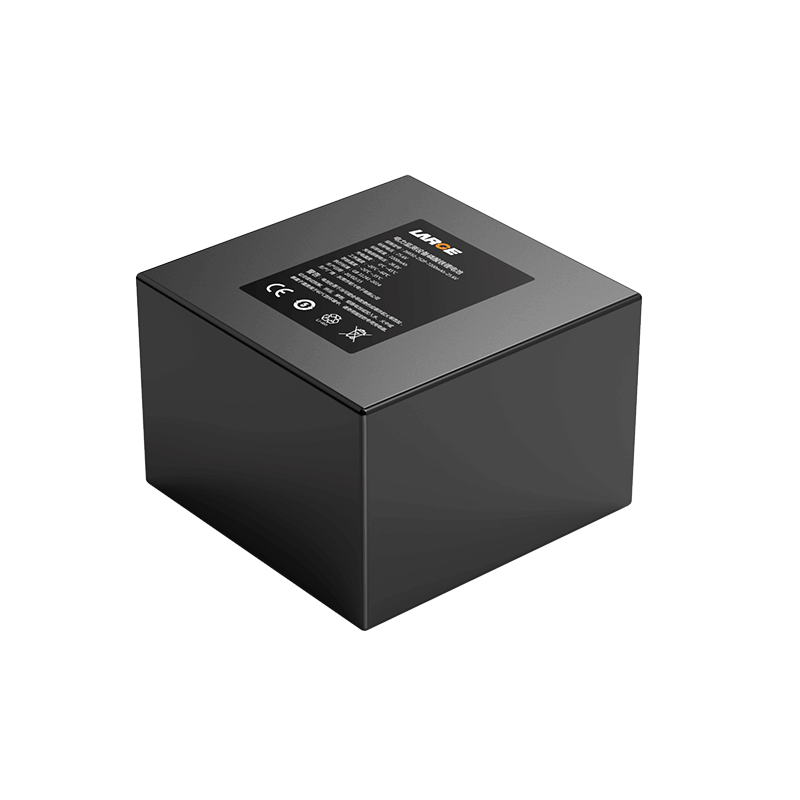

Custom Lithium ion Battery Pack
Product number: 34AQ020-06
Cell model: 26650-3600MAH-3.2V
Battery specification: 26650-2S2P-7200MAH-25.6V
Product size: 120*120*75mm (Max)
Nominal voltage: 25.6V
Nominal capacity: 7200mAh
Charging voltage: 28.8V
Charging current: ≤7A
Discharge current: ≤10A
Discharge cut-off voltage: 20V
Product internal resistance: ≤200mΩ
Battery weight: 1300g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film
Application: Power monitoring equipment, testing equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
