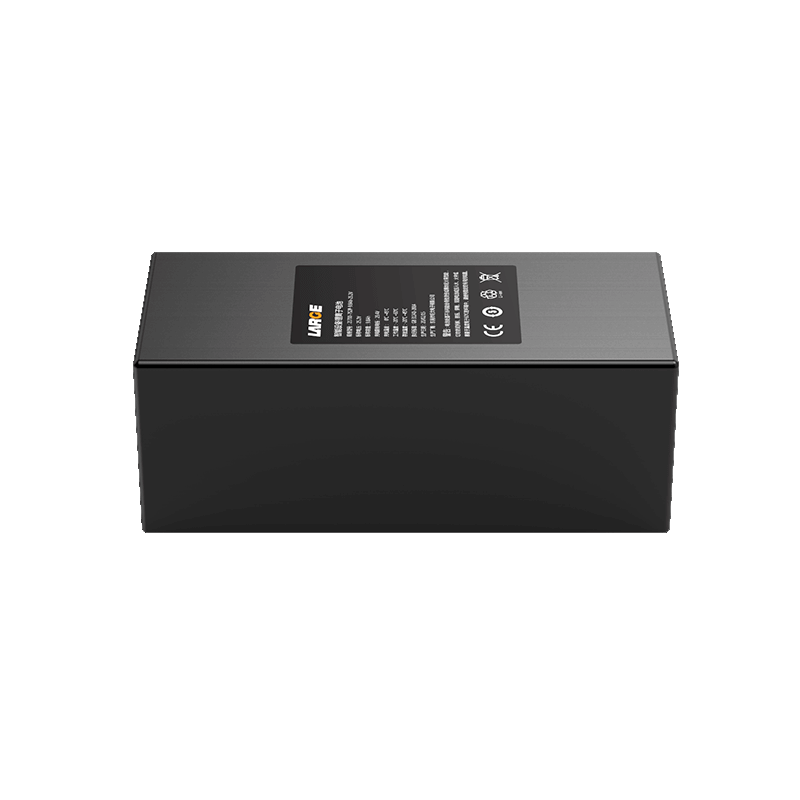

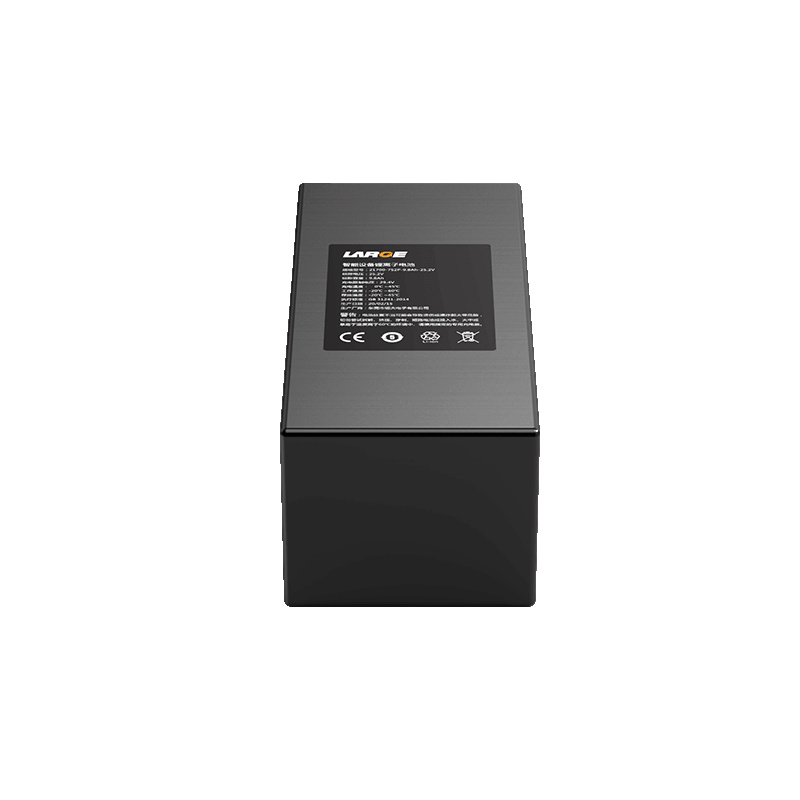

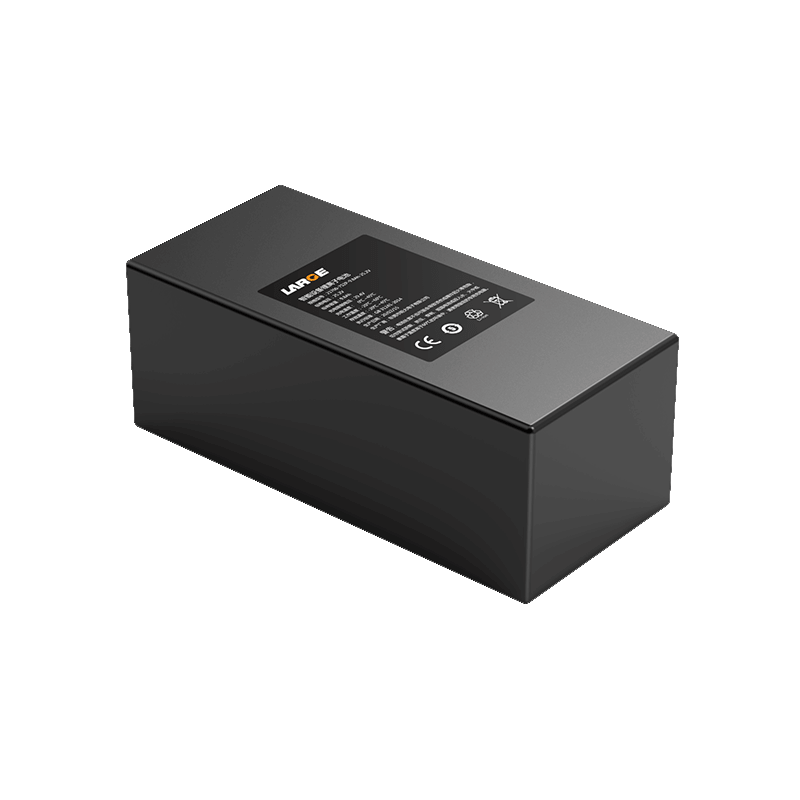

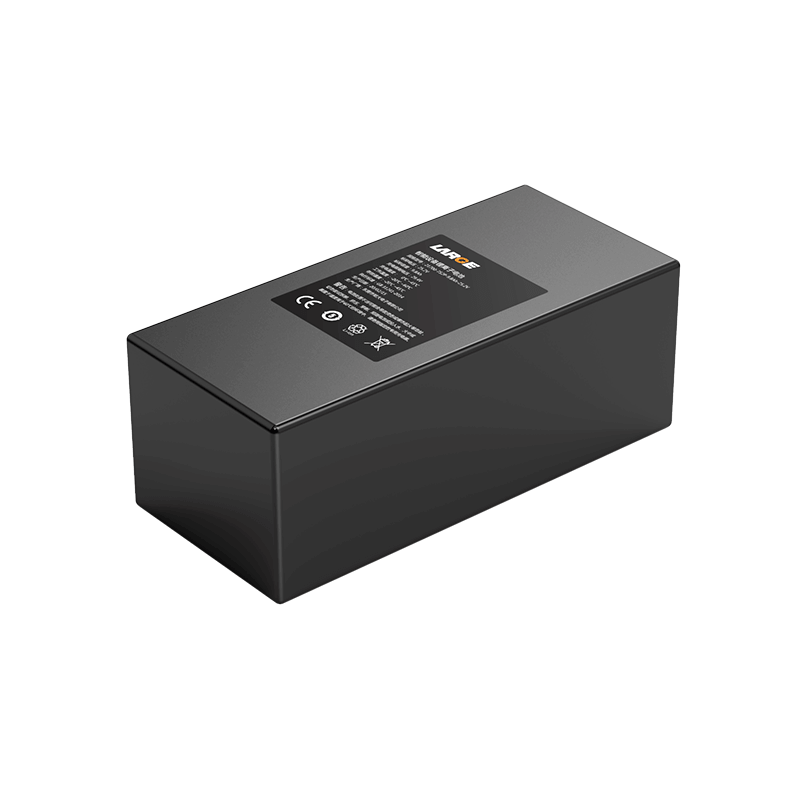

Custom Lithium ion Battery Pack
Product number: 08DQ0056-01
Cell model: 21700-4900MAH-3.60V
Battery specifications: 21700-7S2P-9.8AH-25.2V
Product size: 168mm*78mm*63mm
Nominal voltage: 25.2V
Nominal capacity: 9.8A
Rated capacity: 9.6A
Charging voltage: 29.4V
Charging current: 5A
Discharge current: 6A
Discharge cut-off voltage: 17.5V
Product internal resistance: ≤180mΩ
Battery weight: 1100g
Charging temperature: 0~+45℃
Discharge temperature: -20~+60℃
Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 12 months)
Battery case: PVC;
Communication management: RS485 communication protocol
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Intelligent devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
