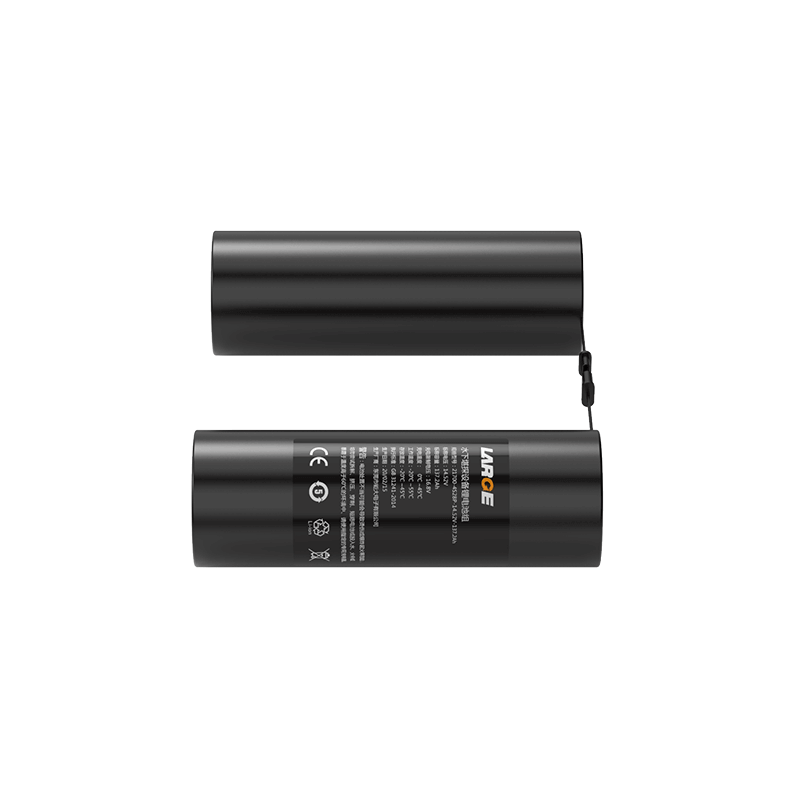

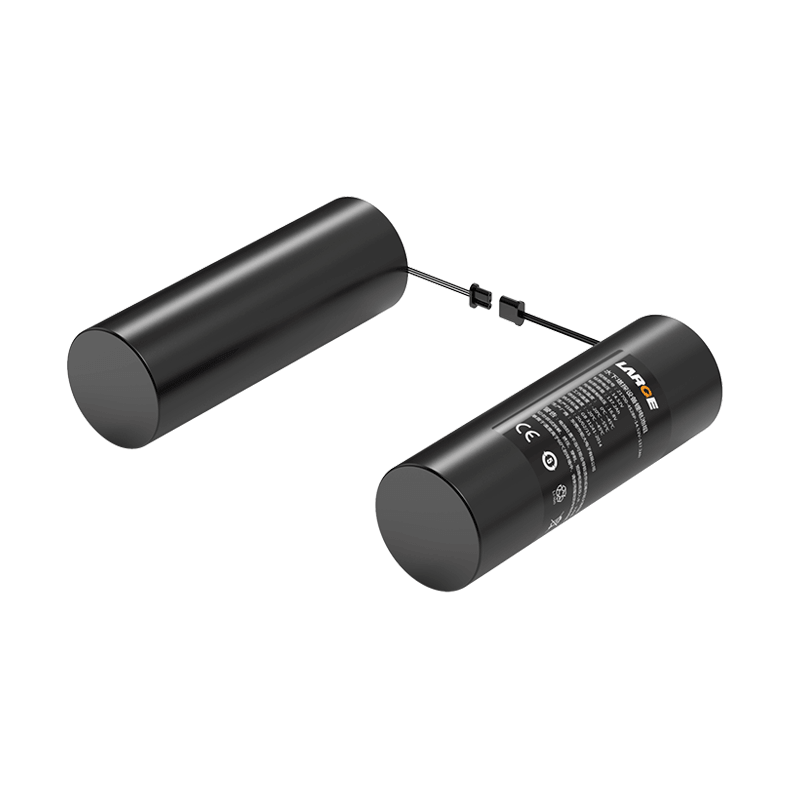

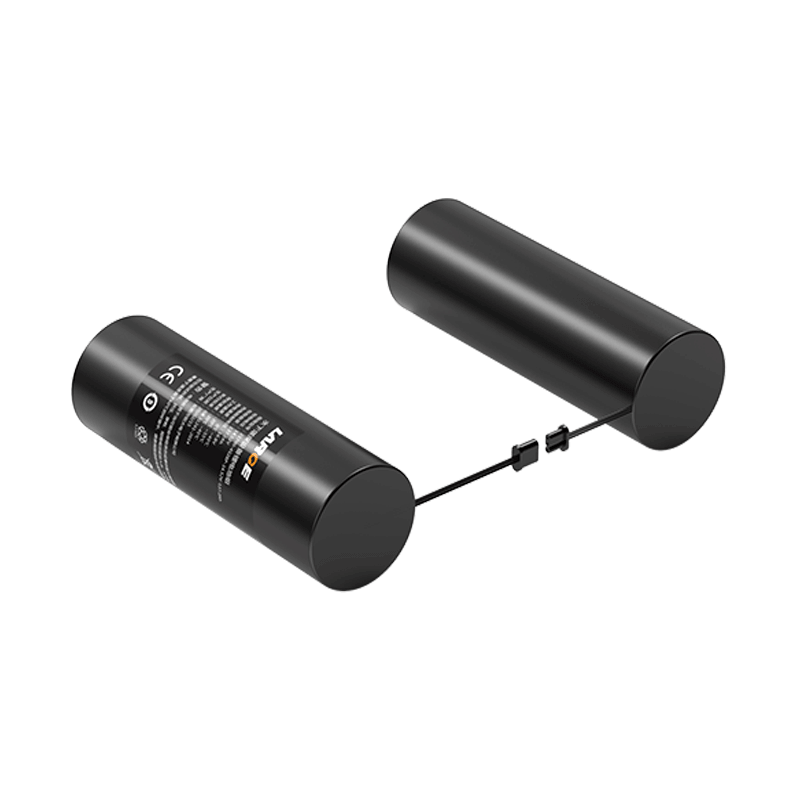

Custom Lithium ion Battery Pack
Product number: 37DZ078-04
Cell model: 21700-4900MAH-3.60V
Battery specification: 21700-4S28P-14.52V-137.2AH
Product size: φ 100mm*308mm
Nominal voltage: 14.52V
Nominal capacity: 137.2Ah
Rated capacity: 134.4Ah
Charging voltage: 16.8V
Charging current: 10A
Discharge current: 10A
Discharge cut-off voltage: 10V
Internal resistance of finished product: ≤300mΩ
Battery weight: About 9.2kg
Charging temperature: 0~+45℃
Discharge temperature: -20~+55℃
Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 6 months)
Battery case: PVC
Communication management: SMBUS communication protocol
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Underwater exploration
