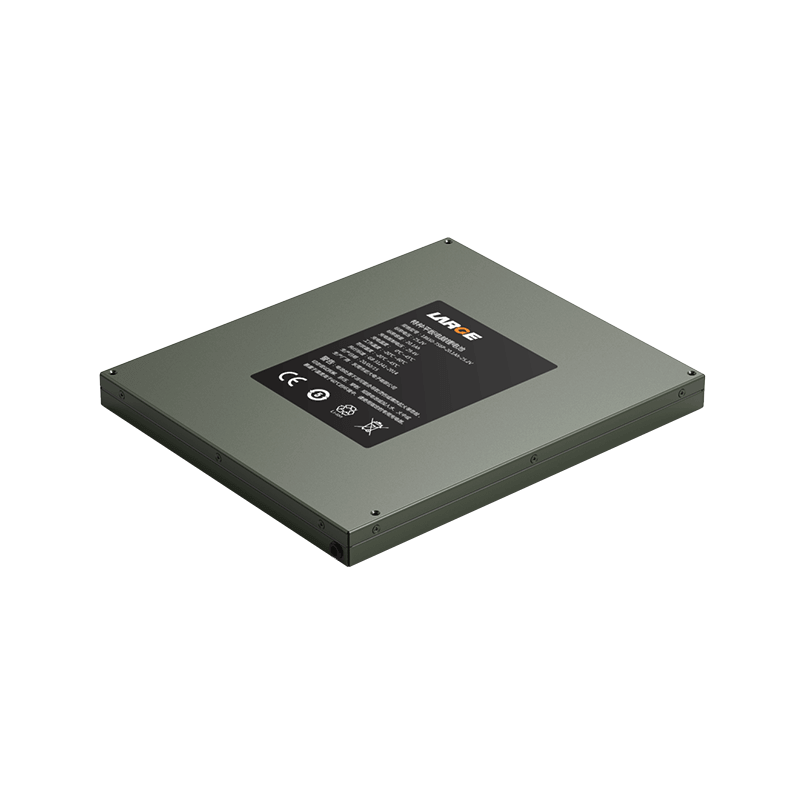

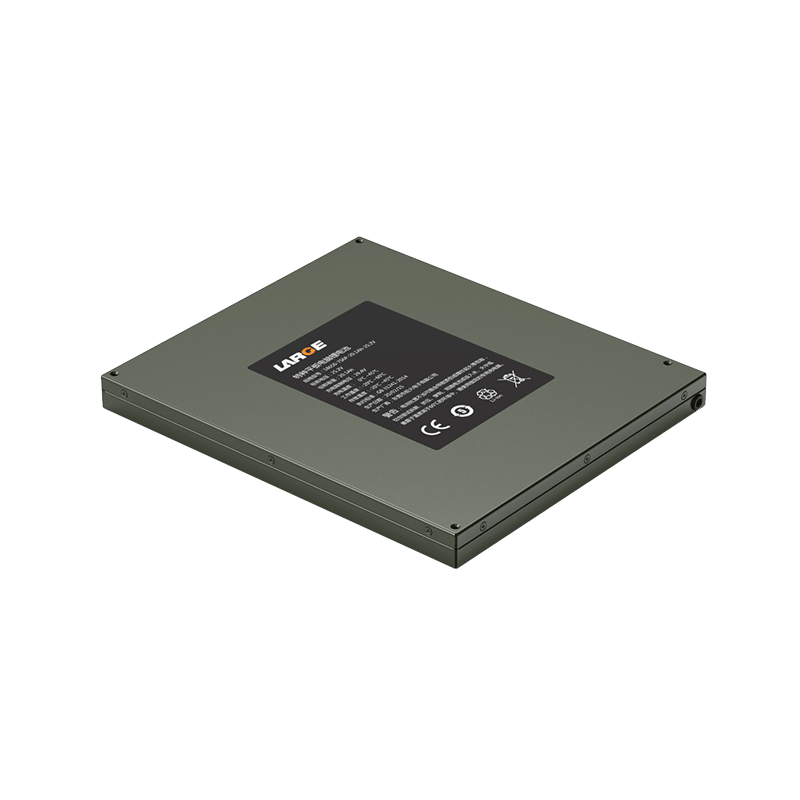

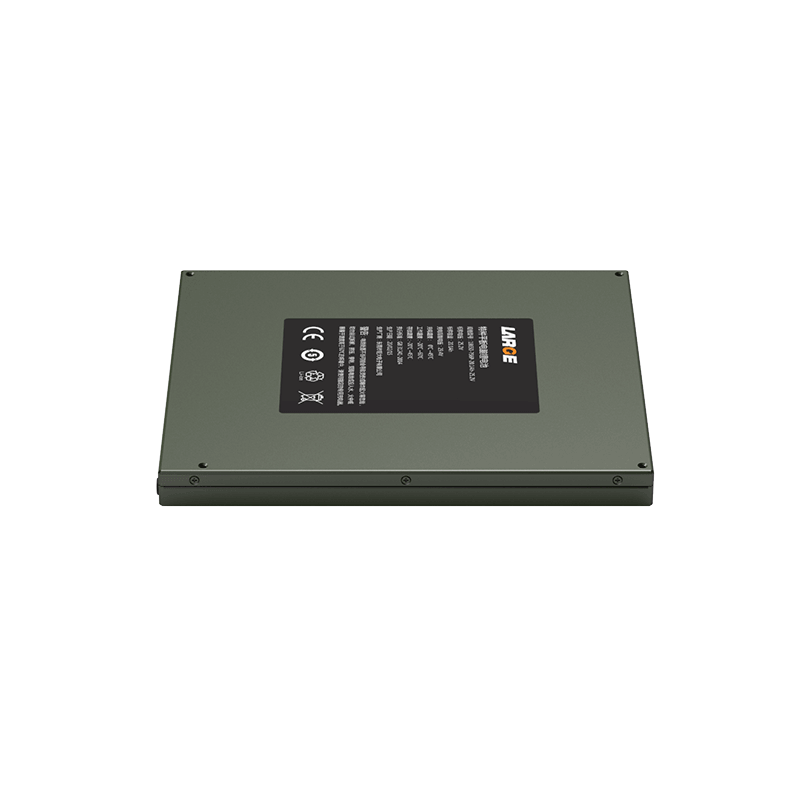

Custom Lithium ion Battery Pack
Product number: 40AQ010-03
Cell model: 18650-3350MAH-3.6V
Battery specification: 18650-7S6P-20.1AH-25.2V
Product size: 293mm *250mm *25mm
Nominal voltage: 25.2V
Nominal capacity: 20.1A
Rated capacity: 19.2A
Charging voltage: 29.4V
Charging current: 10A
Discharge current: 10A
Discharge cut-off voltage: 17.5V
Product internal resistance: ≤200mΩ
Battery weight: About 4.2kg
Charging temperature: 0~+45℃
Discharge temperature: -20~+60℃
Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 12 months)
Battery case: metal case
Communication management: RS485 communication protocol
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Special laptop
