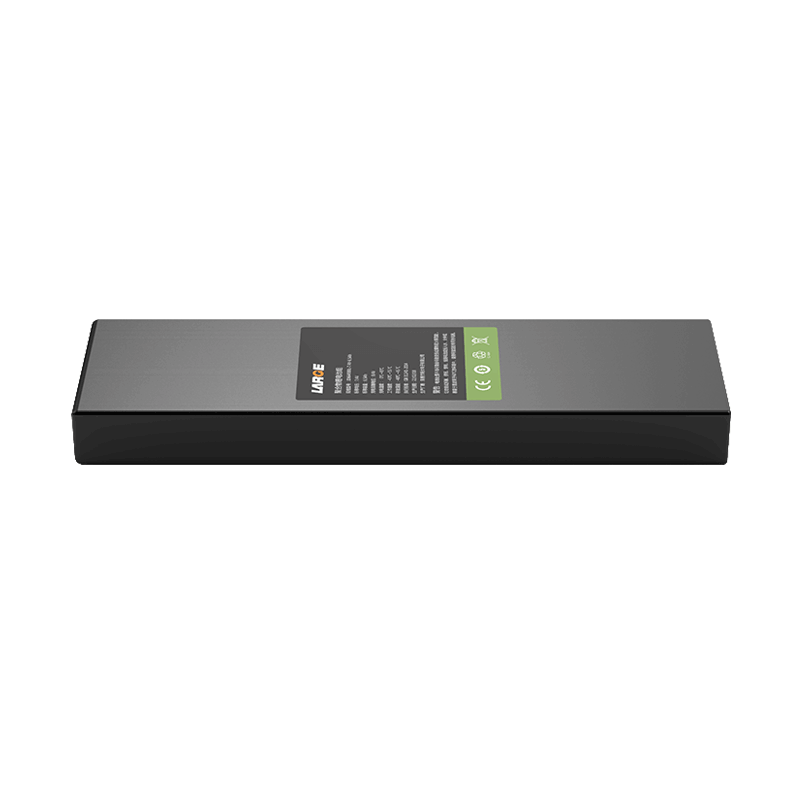

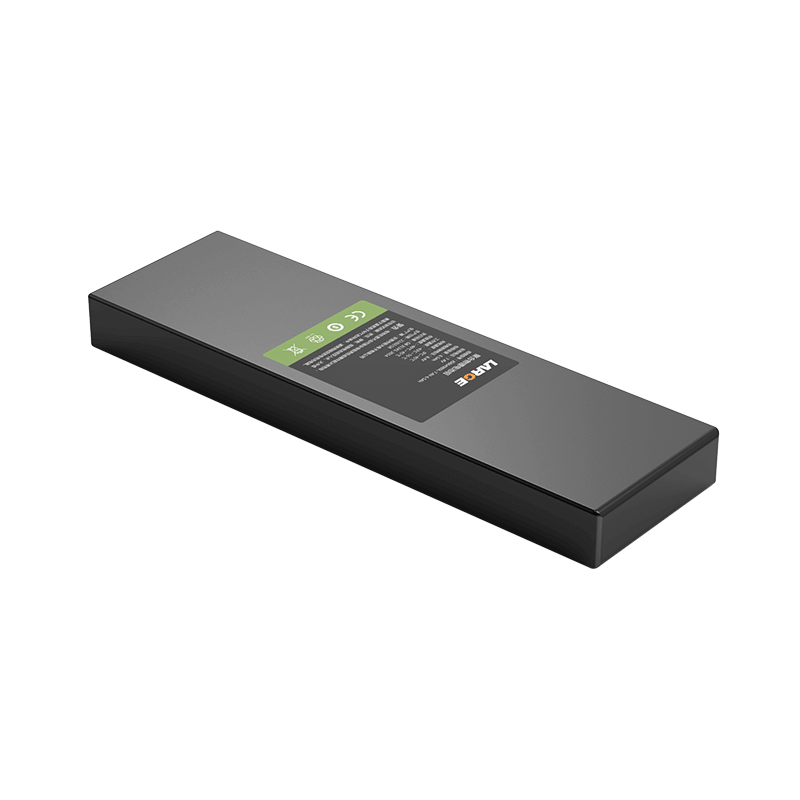

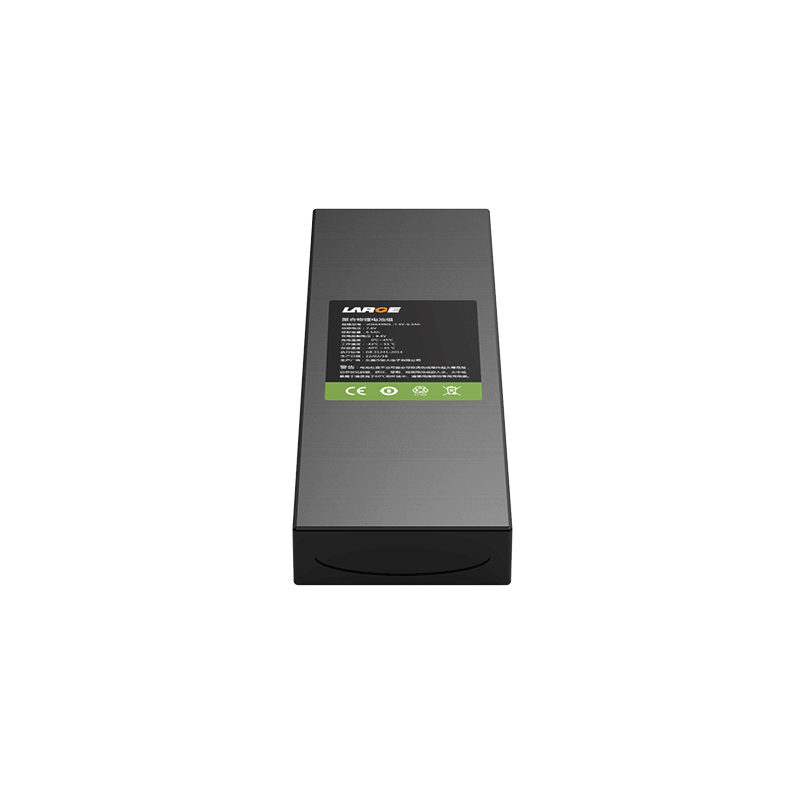

Custom Lithium ion Battery Pack
Product number: 36AQ0750-02
Cell model: JD664980L-3.7V-3.25AH
Battery specification: 7.4V-6.5Ah
Product size: 168x50x16mm (length × width × thickness)
Nominal voltage: 7.4V
Nominal capacity: 6.5Ah
Charging voltage: 8.4V
Charging current: 6.4A
Discharge current: 3.0A
Discharge cut-off voltage: 5V
Product internal resistance: ≤200mΩ
Battery weight: 300g
Charging temperature: 0°C ~+45 °C
Discharge temperature: -43°C~+55 °C
Storage temperature: -40~+45℃ (< 1 month) -40~+35℃(< 3 months); -40~+25℃ (< 6 months)
Battery case: PVC
Communication management: I2C communication protocol
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: laptop
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
