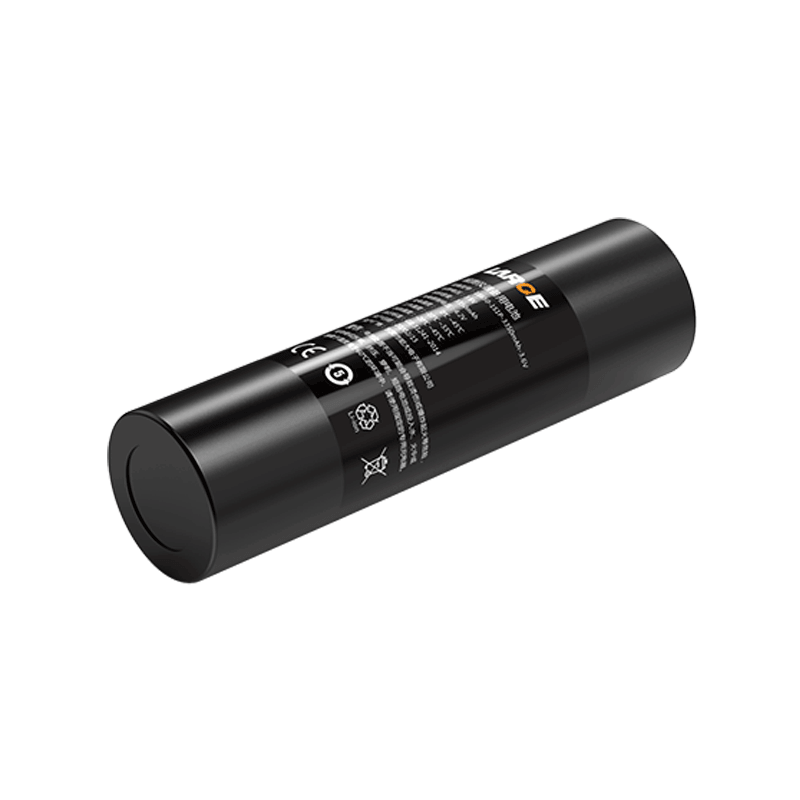

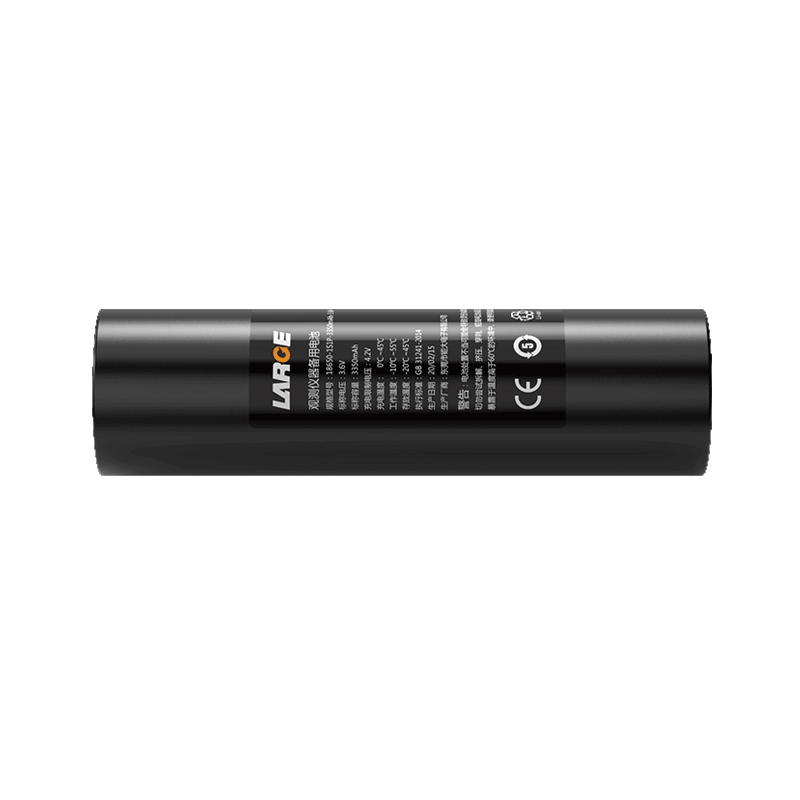

18650 3.6V 3350mAh Lithium-ion Battery for Observation Apparatus

Customization | Free Battery Solution

Product Detail

Product number: 36AQ517-15

Cell model: 18650-3350MAH-3.6V

Battery specifications: 18650-1S1P-3350MAH-3.6V

Nominal voltage: 3.6V

Nominal capacity: 3350mAh

Charging voltage: 4.2V

Charging current: ≤1.6A

Discharge current: 1.6A

Instantaneous discharge current: 1.6A

Discharge cut-off voltage: 2.5V

Product internal resistance: ≤180mΩ

Battery weight: 100G

Product size: MAX69×19.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 55℃

Storage temperature: -20 to 45 ° C

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: observation instrument, instrument and meter
