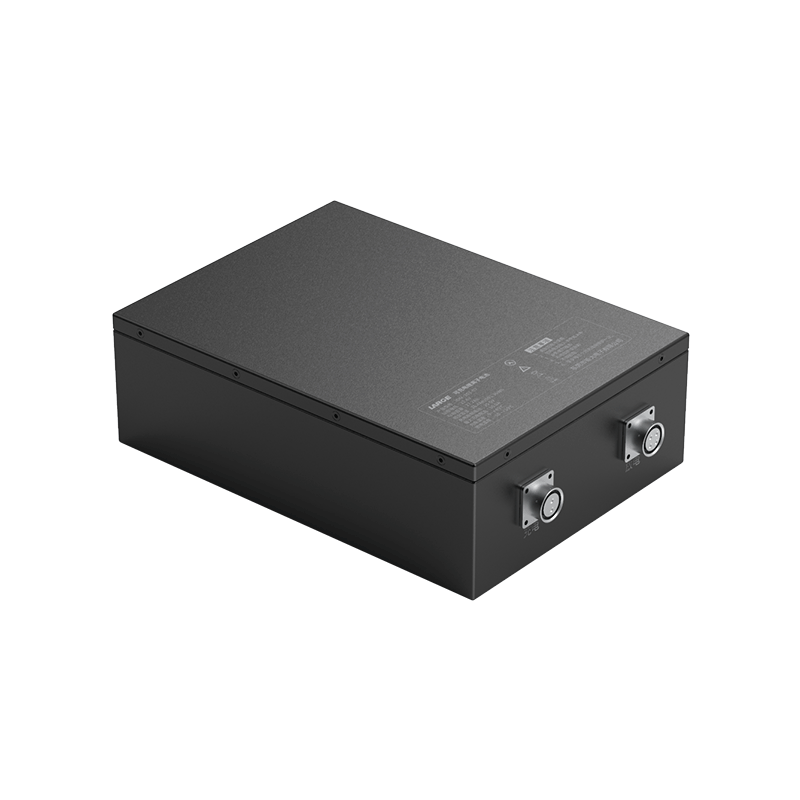

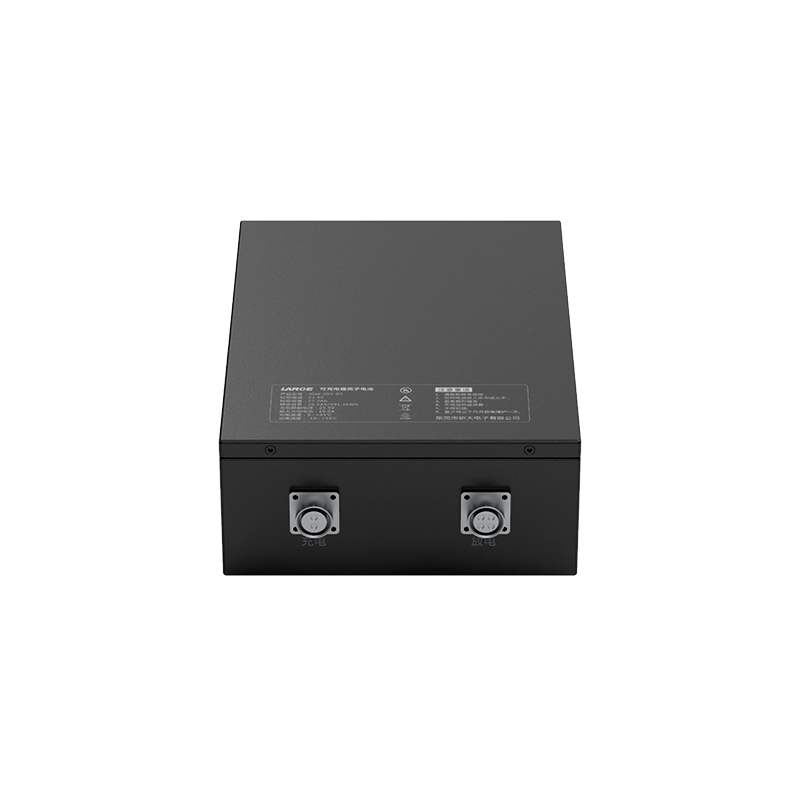

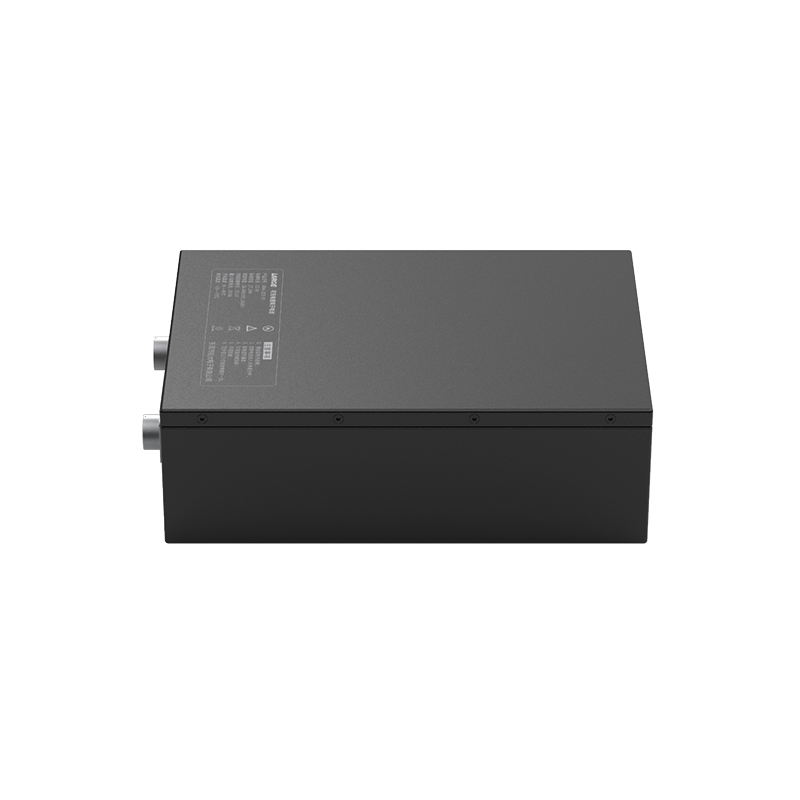

Custom Lithium ion Battery Pack
Product number: 36AQ203-07
Cell model: 26650-3400mah
Battery specification: 26650-7S8P-27.2 AH-22.4V
Nominal voltage: 22.4V
Nominal capacity: 27.2Ah
Charging voltage: 25.5V
Charging current: ≤10.0A
Discharge current: 10.0A
Instantaneous discharge current: 20.0A
Discharge cut-off voltage: 14.0V
Product internal resistance: ≤200m?
Battery weight: 7.5kg
Product size: 290*210*94mm
Charging temperature: 0 ~ +45℃
Discharge temperature: -10 ~ +55℃
Storage temperature: -20 to 35 ° C
Battery case: Sheet metal
Communication mode: RS485
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.
Application: robot, AGV
