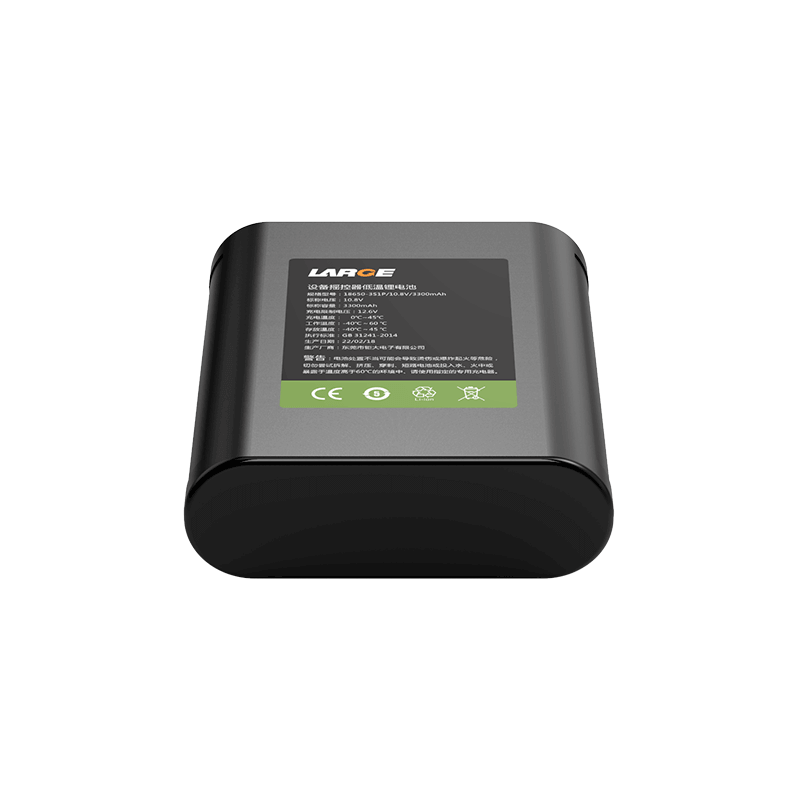

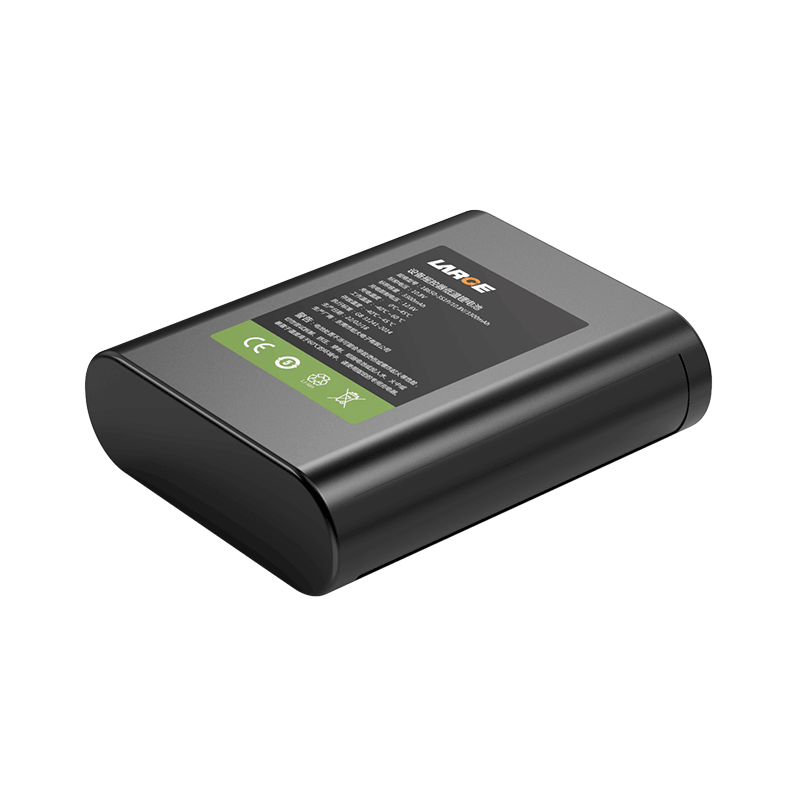

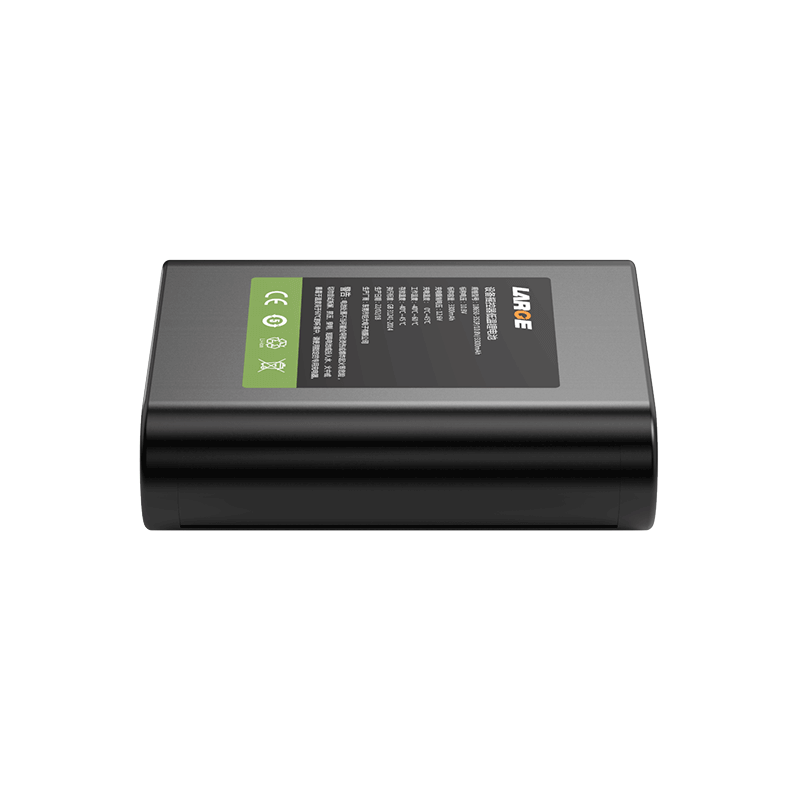

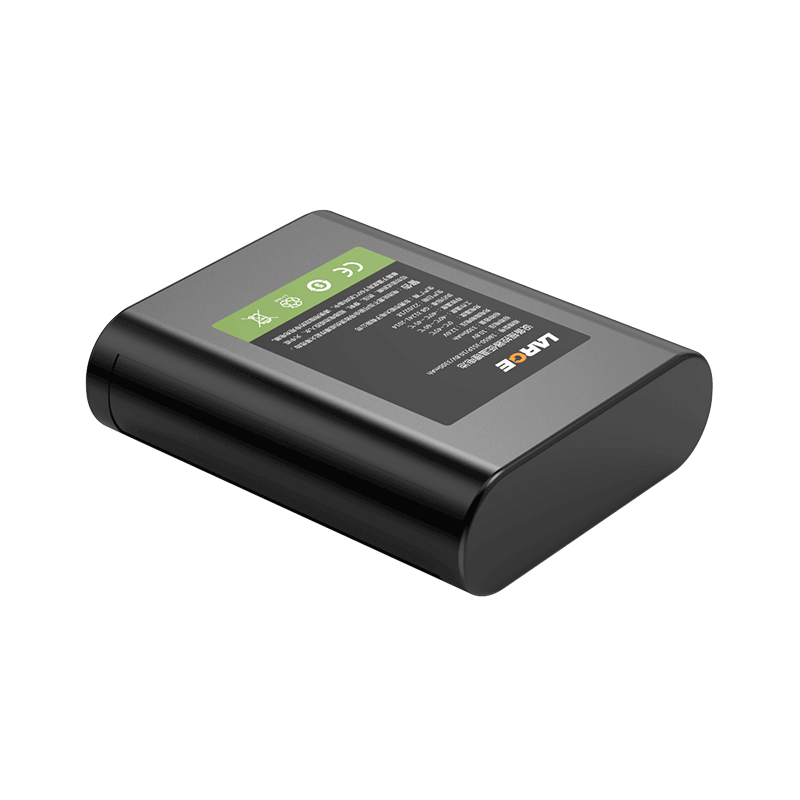

Custom Lithium ion Battery Pack
Project number: 37DZ021-03
Cell model: 18650/3.6V/3350mAh
Battery specification: 18650-3S1P/10.8V/3300mAh
Nominal voltage: 10.8V
Nominal capacity: 3300mAh
Charging voltage: 12.6V
Charging current: ≤1.65A
Discharge current: 1.65A
Instantaneous discharge current: 5-12A
Discharge cut-off voltage: 7.5V
Product internal resistance: ≤180mΩ
Battery weight: 200G
Product size: 19.5*56*71mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -40 ° C to 45 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Remote controller for low temperature equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
