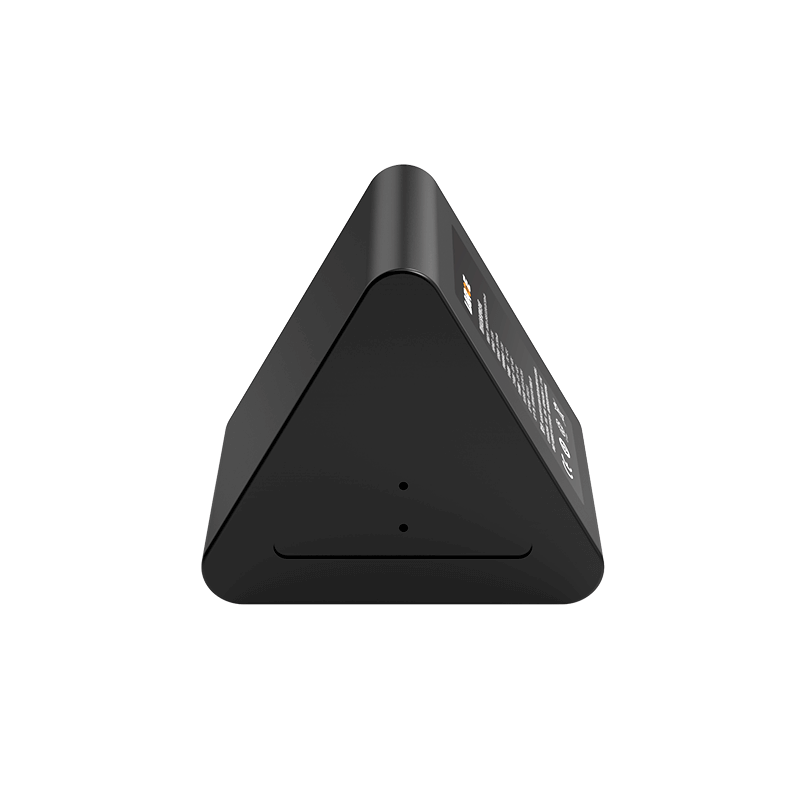

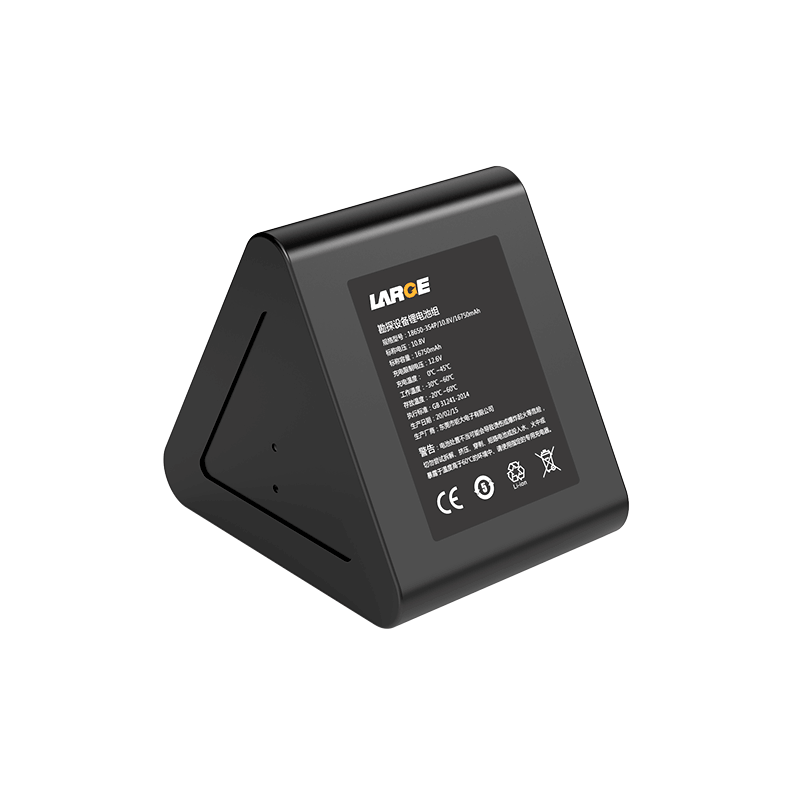

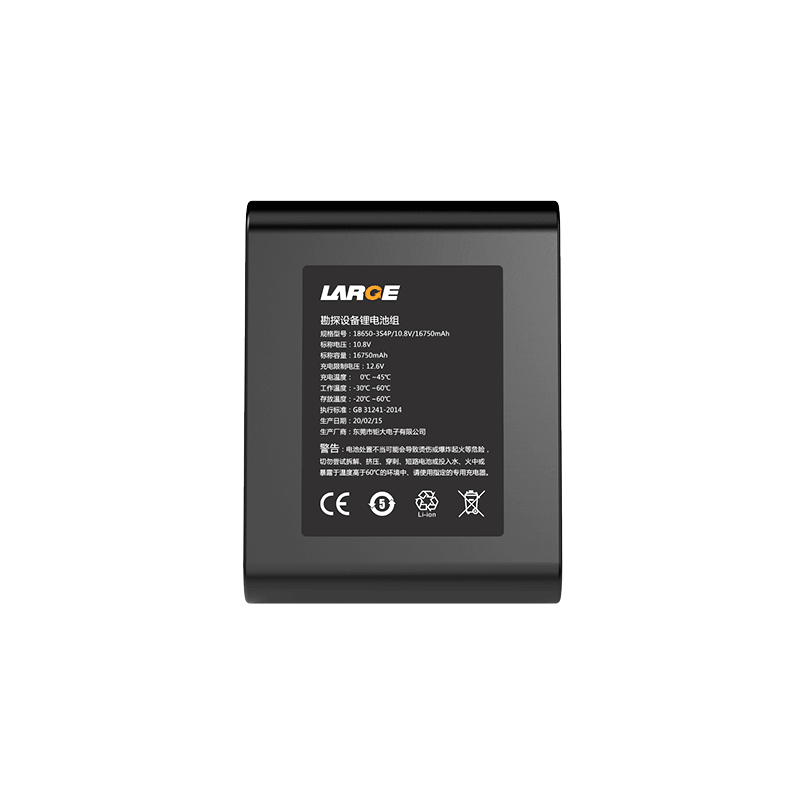

Custom Lithium ion Battery Pack
Project number: 37DZ078-08
Cell model: 18650/3.6V/3350mAh
Battery specification: 18650-3S4P/10.8V/16750mAh
Nominal voltage: 10.8V
Nominal capacity: 16,750 mah
Charging voltage: 12.6V
Charging current: ≤5A
Discharge current: 5A
Instantaneous discharge current: 7-9A
Discharge cut-off voltage: 8.1V
Finished product internal resistance: ≤150mΩ
Battery weight: 600g
Product size: 71.5*92*92.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -30 ~ 60℃
Storage temperature: -20 ℃ to 60℃
Battery case: PVC package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Portable testing equipment, exploration equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
